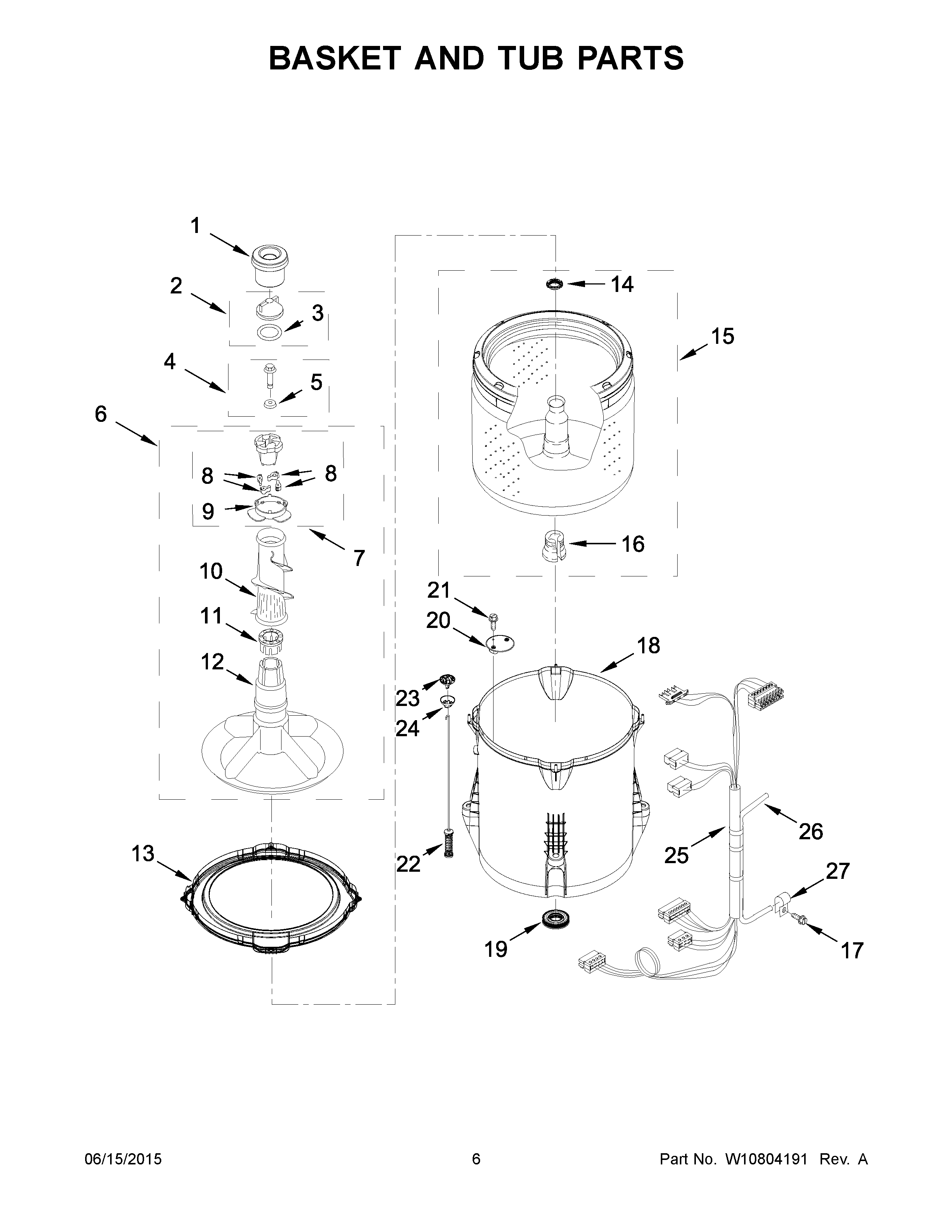

WTW4850BW2 04 – BASKET AND TUB PARTS

WTW4850BW2 04 – BASKET AND TUB PARTS

Written by

in

WTW4850BW2 04 – BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6285565 Whirlpool Agitator Assembly
7285809 Whirlpool Washer Agitator Cam Kit
880040 Whirlpool Washer Agitator Dog Kit
9WP3952374 Whirlpool Bearing
10WP3363003 Whirlpool Agitator Mover
11WP3951608 Whirlpool Washer Agitator Thrust Spacer
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WPW10109200 Whirlpool Screw
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
21WP8533928 Whirlpool Refrigerator Screw
22W10780045 Whirlpool Suspension Rod
23W10780046 Whirlpool Suspension Rod Kit
24W10440729 Whirlpool Suspension
25W10610076 Whirlpool Wire Harness
26WP353244 Whirlpool Hose
27W10005430 Whirlpool Clamp
