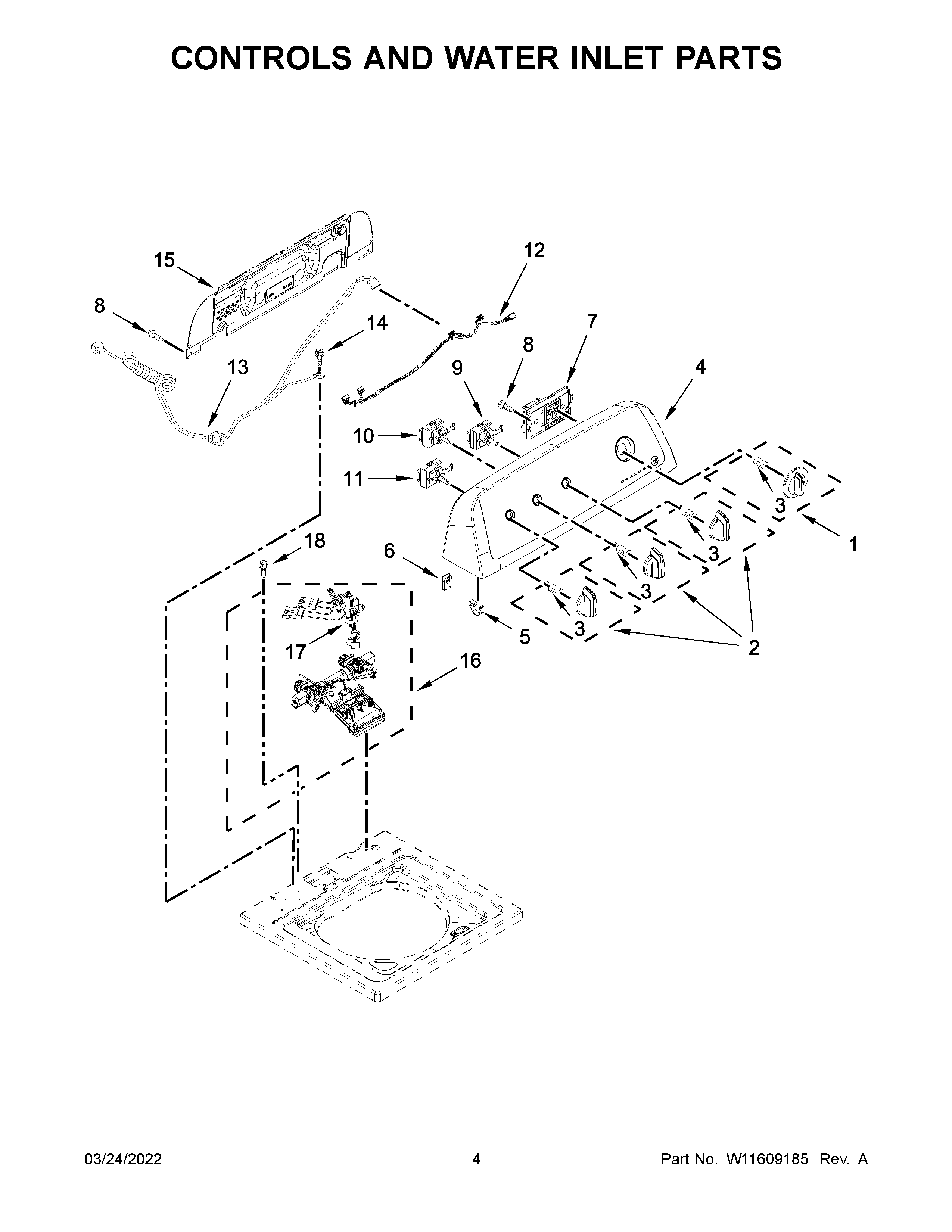

WTW4850HW3 03 – CONTROLS AND WATER INLET PARTS

WTW4850HW3 03 – CONTROLS AND WATER INLET PARTS

Written by

in

WTW4850HW3 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W11216549 Whirlpool Knob
2W11216550 Whirlpool Knob Assembly
3WP8536939 Whirlpool Spring Clip
4W11226498 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W11607637-includeCORE Whirlpool W11607637 Refrigerator Electronic Control Board + Core
8W11685943 Whirlpool Screw
9WPW10414398 Whirlpool Cycle Switch
10W11168256 Whirlpool Cycle Switch
11W10859568 Whirlpool Cycle Switch
12W10694671 Whirlpool Wire Harness
13W10850133 Whirlpool Power Cord
14W10846509 Whirlpool Screw
15W10409320 Whirlpool Rear Panel
16VALVE-WATER INLET WASHER
17W10868094 Whirlpool Wire Harness
18WPW10213953 Whirlpool Screw
