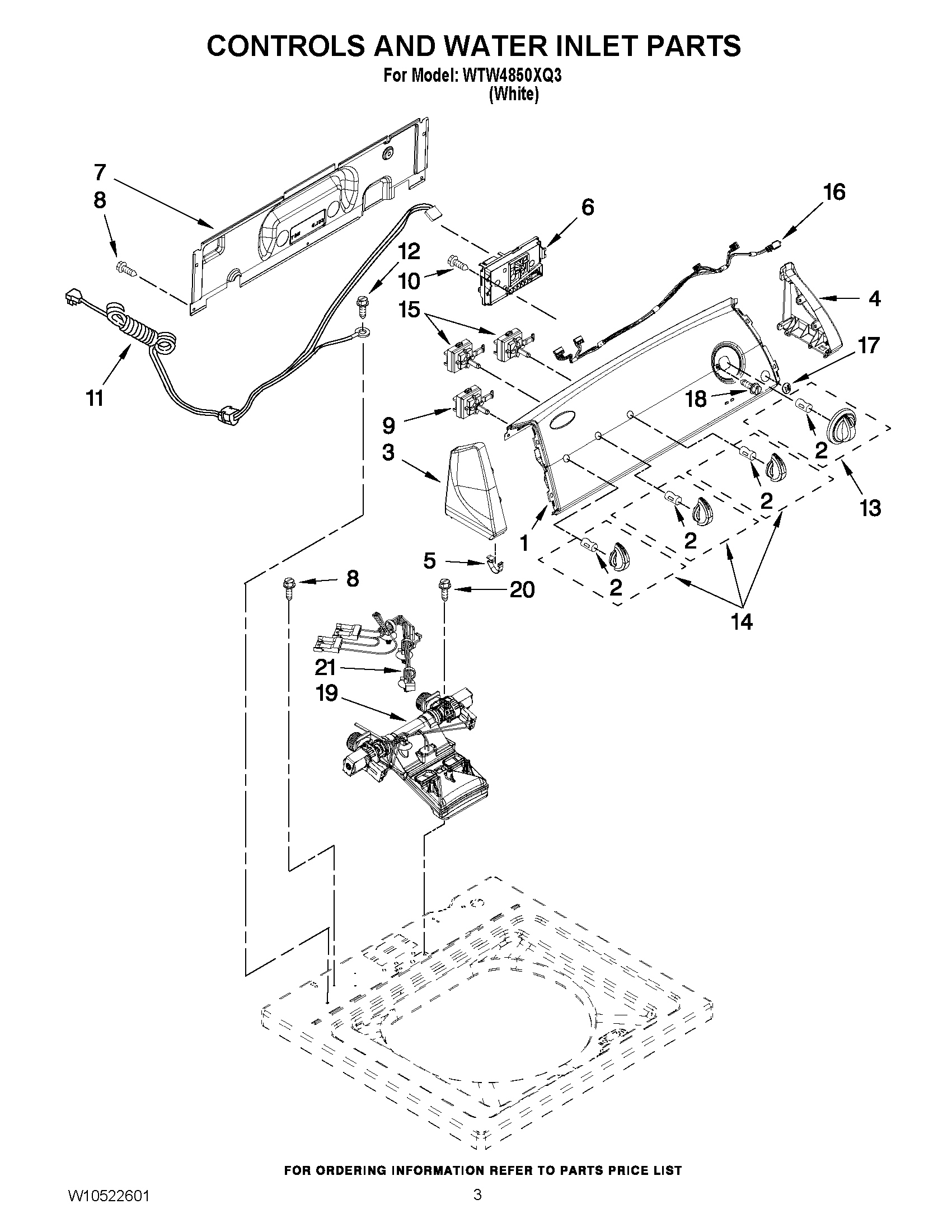

WTW4850XQ3 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10480186-includeCORE Whirlpool W10480186 Refrigerator Electronic Control Board
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285518 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285511 Whirlpool Cycle Switch
16W10291183 Whirlpool Wire Harness
17WPW10251309 Whirlpool Push Button
183400073 Whirlpool Screw
19WPW10683603 Whirlpool Dishwasher Water Inlet Valve
20WP8281163 Whirlpool Refrigerator Screw
21W10876654 Whirlpool Wire Harness
