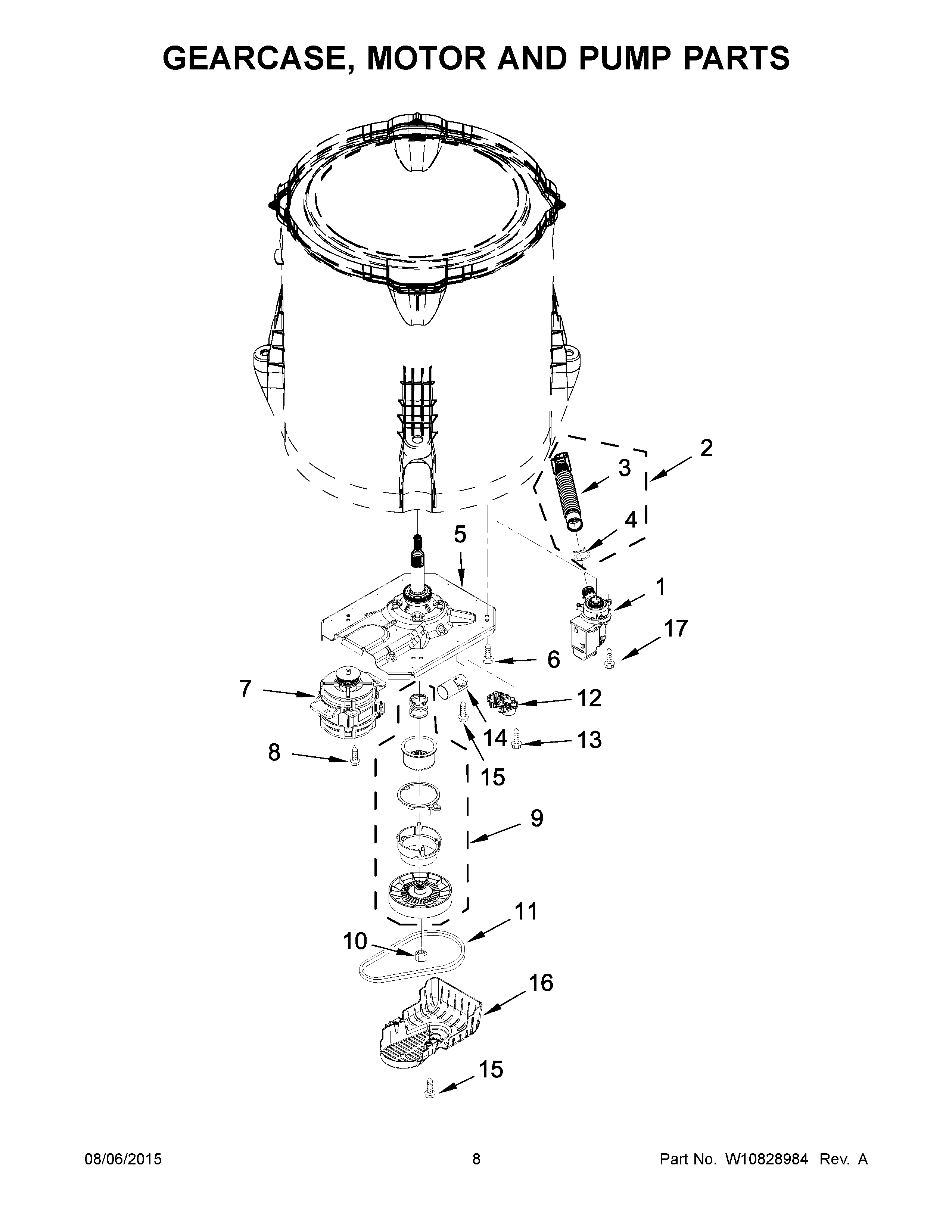

WTW4915EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

WTW4915EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

WTW4915EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10661045 Whirlpool Washer Water Drain Pump
2W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10832724 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10W10759923 Whirlpool Washer Pulley Nut
11WPW10006384 Whirlpool Washer Drive Belt
12ACTUATOR
13W11596033 Whirlpool Microwave Screw
14CAPACITOR (WASHER)
15W11573574 Whirlpool Screw
16WPW10550173 Whirlpool Shield Assembly
17WPW10004910 Whirlpool Screw
