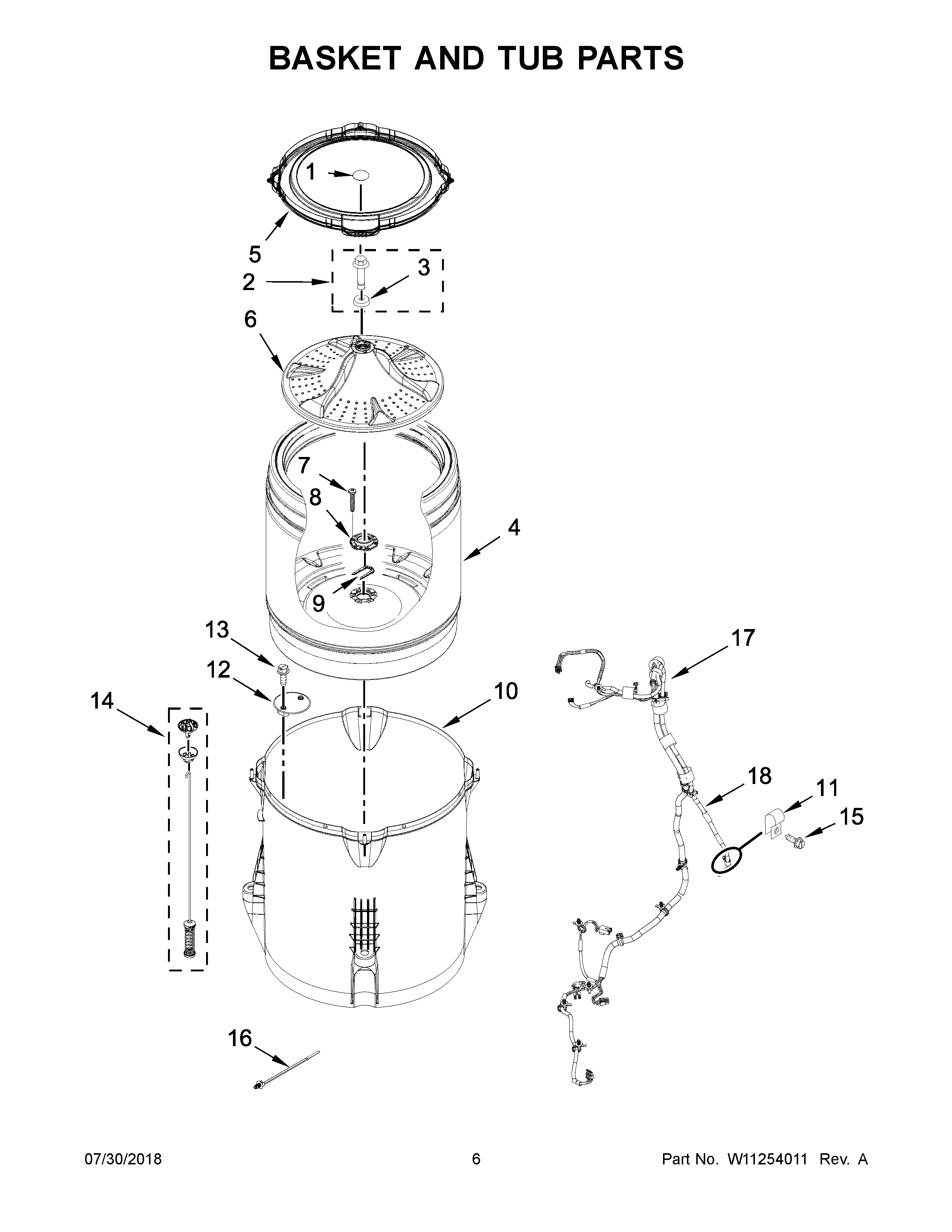

WTW4950HW1 04 – BASKET AND TUB PARTS

WTW4950HW1 04 – BASKET AND TUB PARTS

Written by

in

WTW4950HW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1WPW10305259 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4W11172199 Whirlpool Basket
5W11550886 Whirlpool Tub Ring
6WPW10215115 Whirlpool Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10W10371566 Whirlpool Outer Tub
11W10005430 Whirlpool Clamp
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14SUSPENSION (SET OF 4)
15WPW10109200 Whirlpool Screw
16W10339680 Whirlpool Wire Tie
17W11233718 Whirlpool Wire Harness
18WP353244 Whirlpool Hose
