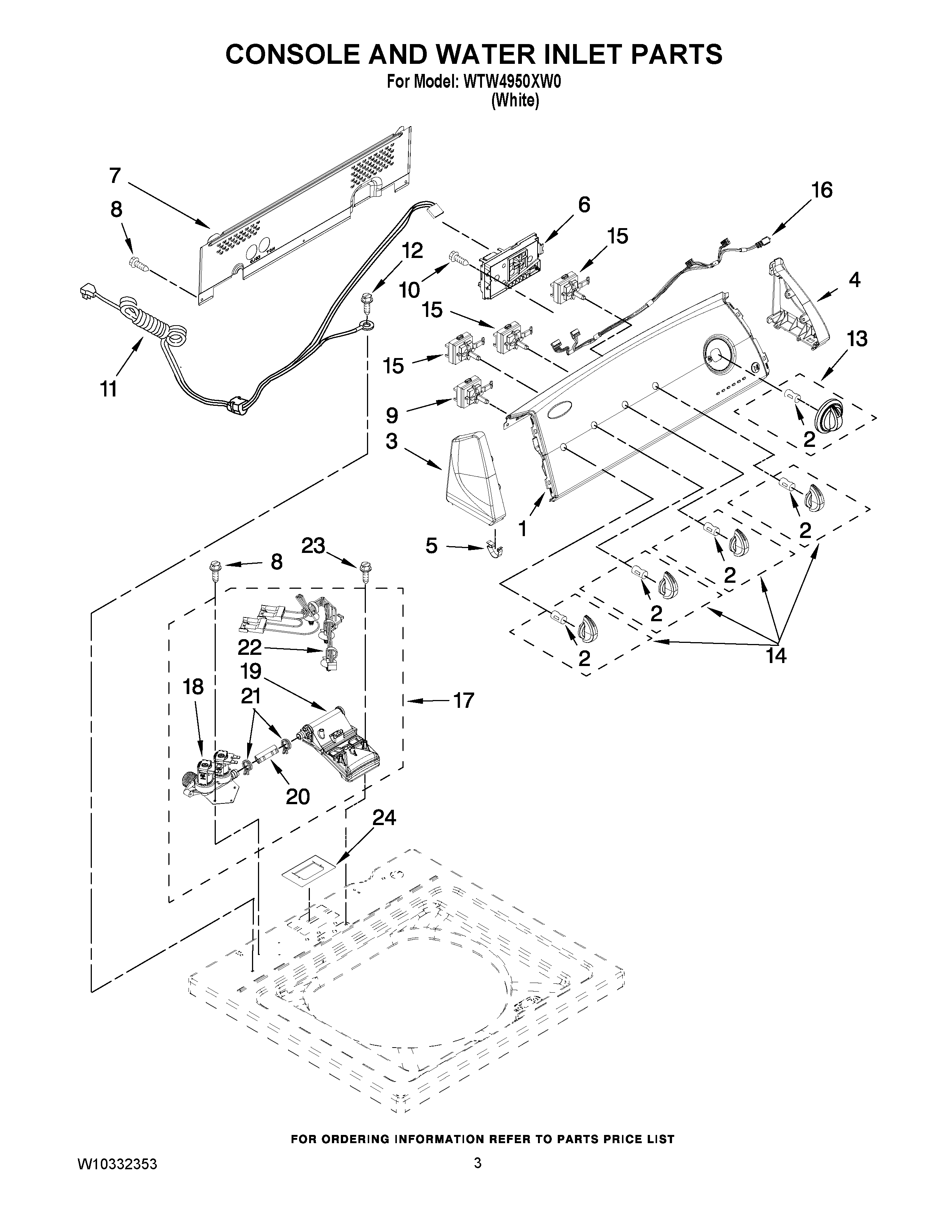

WTW4950XW0 02 – CONSOLE AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10393489 Whirlpool Electronic Control Board + Core
7	WPW10420985 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10285512 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	TIMER KNOB ASSEMBLY
14	Knob, Control (3)
15	WPW10285511 Whirlpool Cycle Switch
16	WPW10291176 Whirlpool Wire Harness
17	WPW10432353 Whirlpool Valve Assembly
18	WPW10356257 Whirlpool Valve
19	WPW10441423 Whirlpool Vacuum Breaker
20	W10238347 Whirlpool Hose Assembly
21	WP596669 Whirlpool Hose Clamp
22	WPW10344775 Whirlpool Wire Harness
23	WP8281163 Whirlpool Refrigerator Screw
24	FOAM, IVVB
