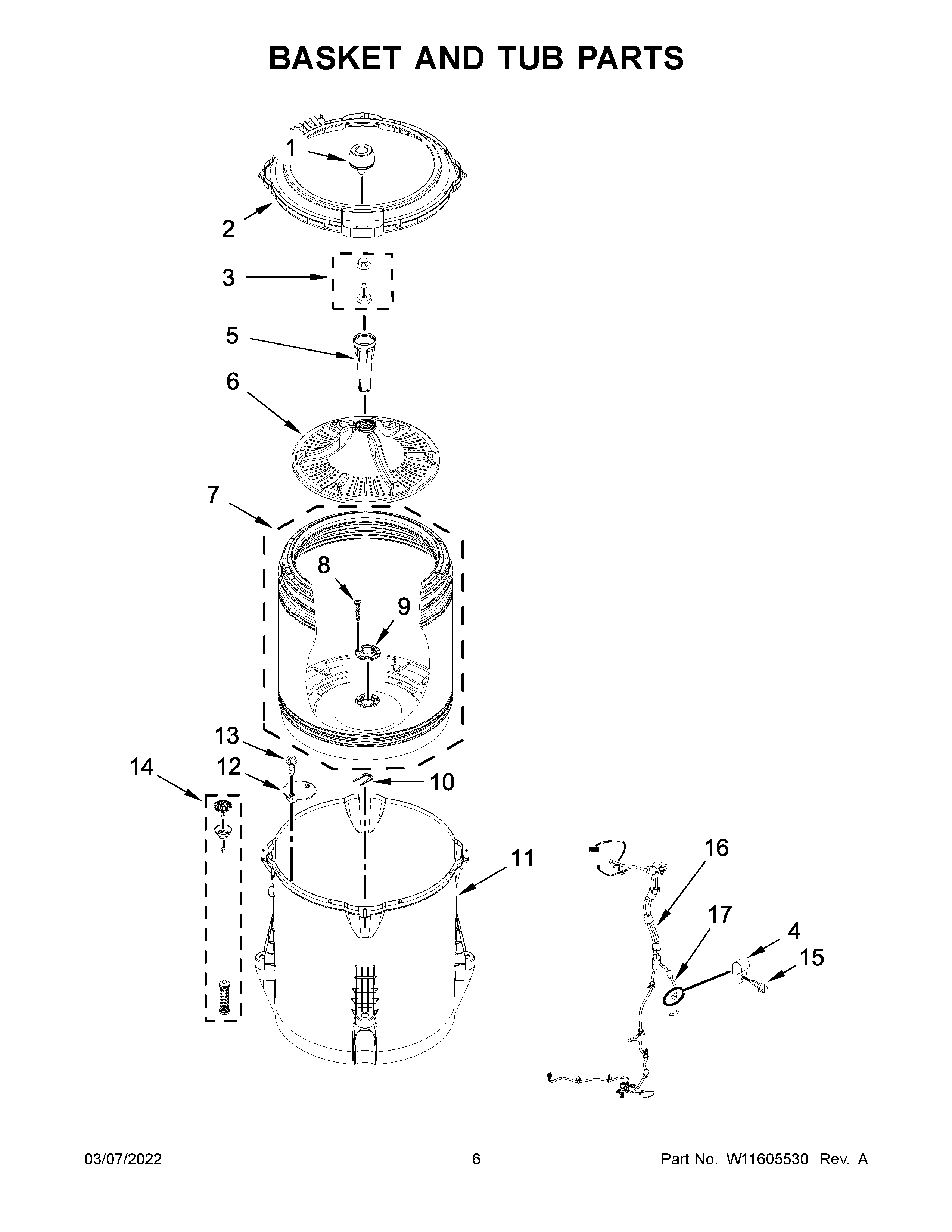

WTW4955HW3 04 – BASKET AND TUB PARTS

WTW4955HW3 04 – BASKET AND TUB PARTS

Written by

in

WTW4955HW3 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W11550886 Whirlpool Tub Ring
3W11223765 Whirlpool Screw
4W10005430 Whirlpool Clamp
5W10836692 Whirlpool Agitator Upper
6W11397111 Whirlpool Washplate Assembly
7W11172199 Whirlpool Basket
8WP8533953 Whirlpool Screw
9W10528947 Whirlpool Washer Drive Hub Assembly
10RETAINER
11W10371566 Whirlpool Outer Tub
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14SUSPENSION (SET OF 4)
15WPW10109200 Whirlpool Screw
16WP353244 Whirlpool Hose
17W11665968 Whirlpool Washer Wire Harness
