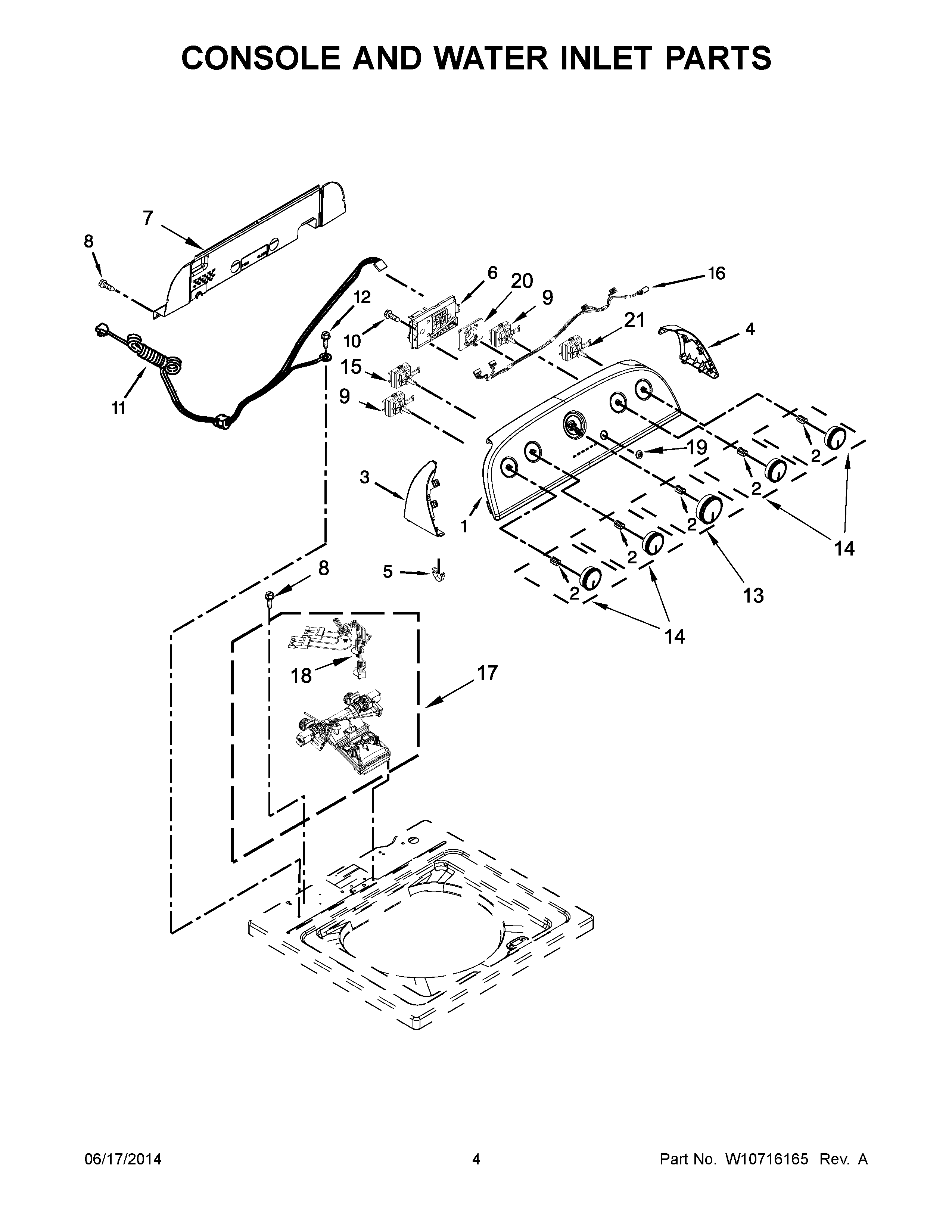

WTW5000DW0 03 – CONSOLE AND WATER INLET PARTS

WTW5000DW0 03 – CONSOLE AND WATER INLET PARTS

Written by

in

WTW5000DW0 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1W10920641 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10634026 Whirlpool Electronic Control Board + Core
7W10641340 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285518 Whirlpool Cycle Switch
16W10579238 Whirlpool Wire Harness
17WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18W10876654 Whirlpool Wire Harness
19WPW10596298 Whirlpool Push Button
20W11084340 Whirlpool Push Button
21WPW10285511 Whirlpool Cycle Switch
