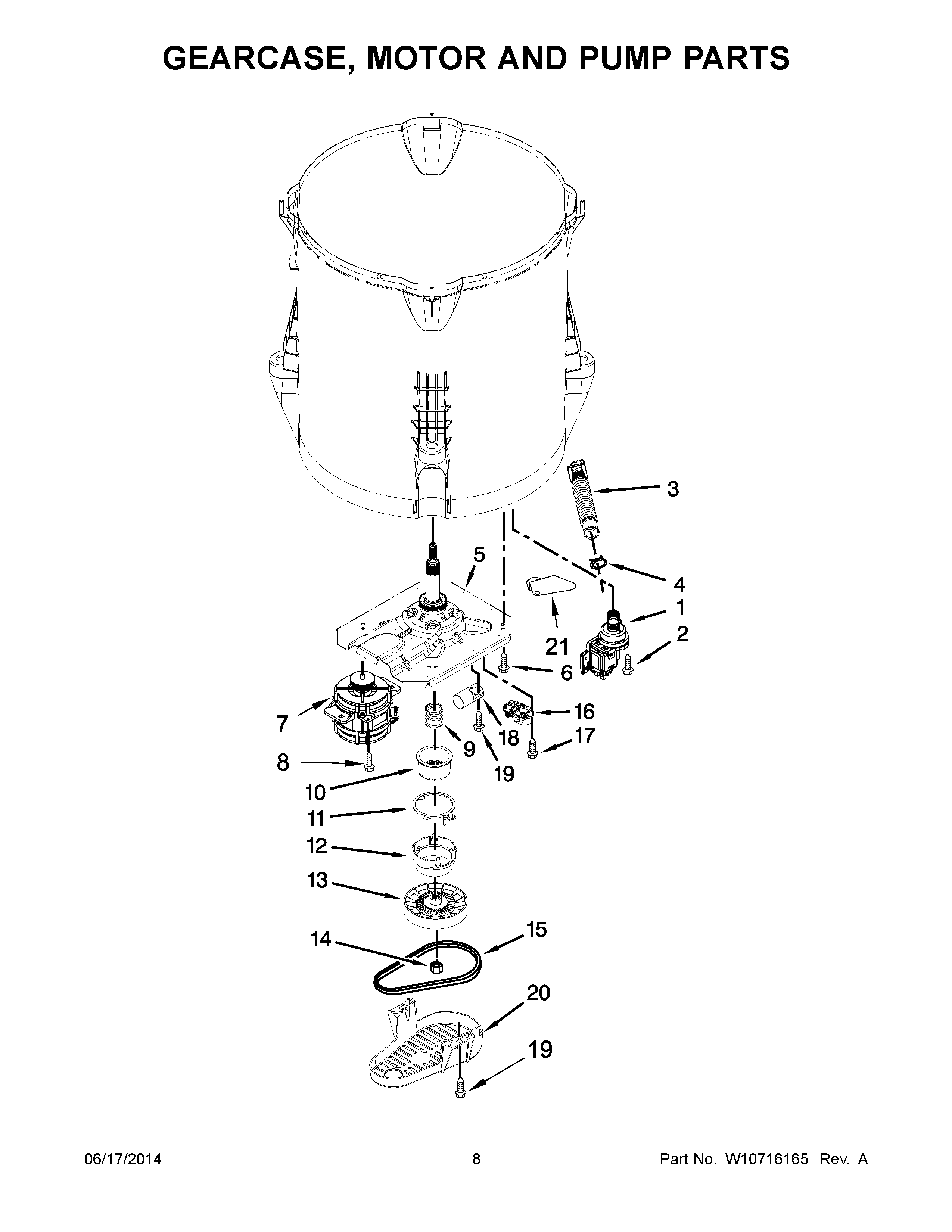

WTW5000DW0 05 – GEARCASE, MOTOR AND PUMP PARTS

WTW5000DW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

WTW5000DW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10581874 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3HOSE
4WP285655 Whirlpool Hose Clamp
5GEARCASE DW1
6WPW10249633 Whirlpool Screw
7W11283592 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9SPRING, SPLUTCH
10SLIDER, SPLUTCH
11CAM RING, SPLUTCH
12CAM, SPLUTCH
13W10721967 Whirlpool Washer Cam Kit
14W10759923 Whirlpool Washer Pulley Nut
15WPW10006384 Whirlpool Washer Drive Belt
16ACTUATOR
17W11596033 Whirlpool Microwave Screw
18CAPACITOR (WASHER)
19W11573574 Whirlpool Screw
20WPW10427633 Whirlpool Belt Shield
21W10637932 Whirlpool Shield
