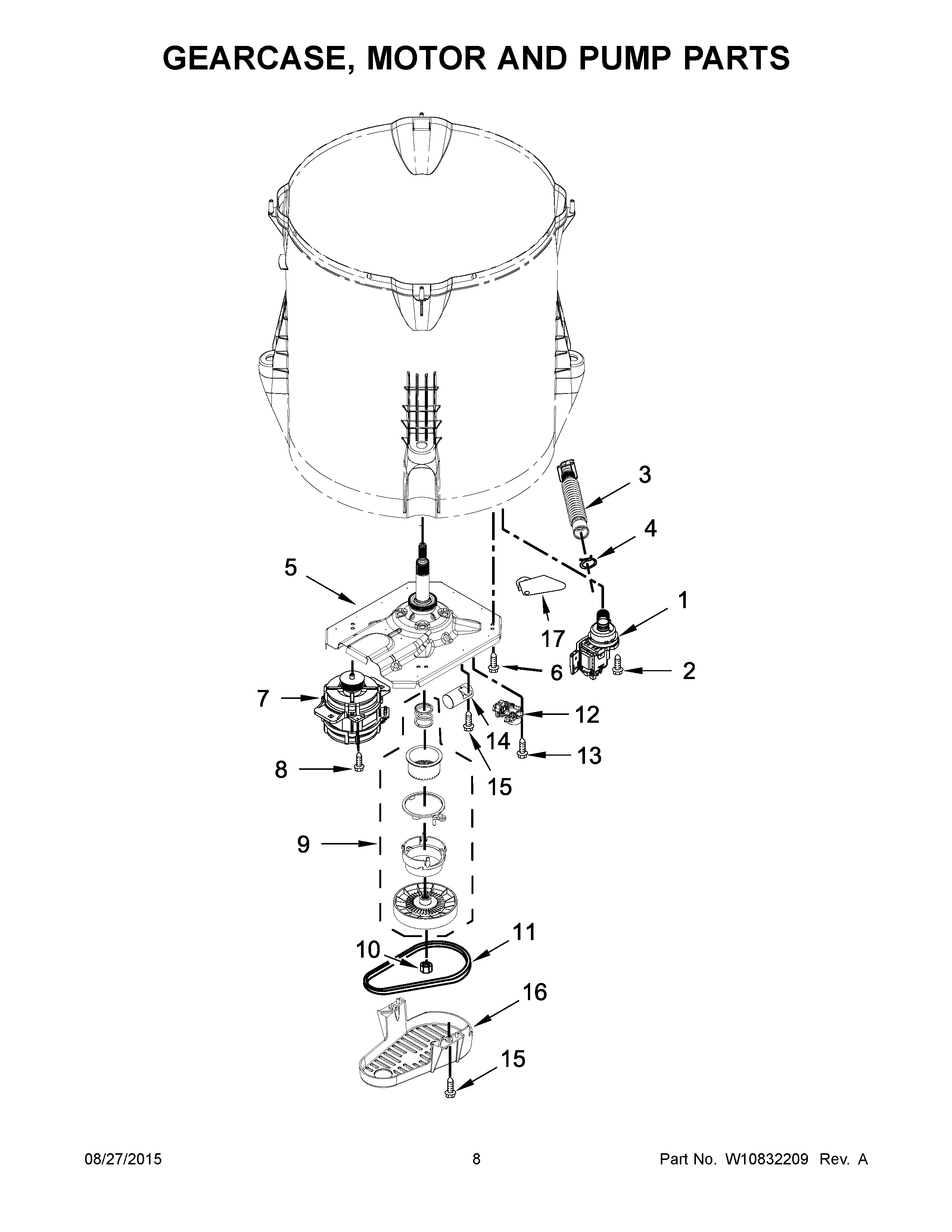

WTW5000DW1 05 – GEARCASE, MOTOR AND PUMP PARTS

WTW5000DW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

WTW5000DW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1W10876600 Whirlpool Washer Water Pump
2WPW10004910 Whirlpool Screw
3HOSE
4WP285655 Whirlpool Hose Clamp
5GEARCASE DW1
6WPW10249633 Whirlpool Screw
7W11283592 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10W10759923 Whirlpool Washer Pulley Nut
11WPW10006384 Whirlpool Washer Drive Belt
12ACTUATOR
13W11596033 Whirlpool Microwave Screw
14CAPACITOR (WASHER)
15W11573574 Whirlpool Screw
16WPW10427633 Whirlpool Belt Shield
17W10637932 Whirlpool Shield
