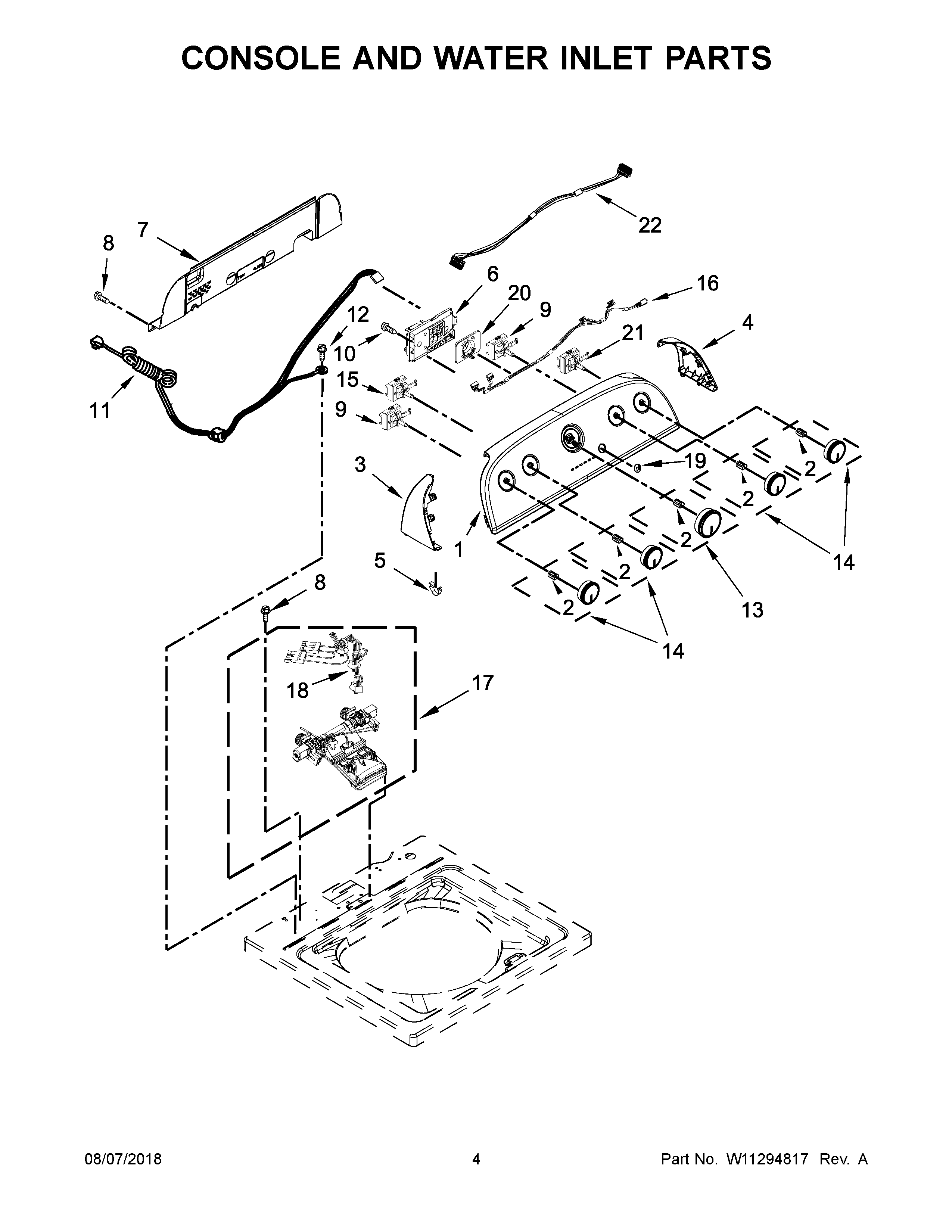

WTW5000DW2 03 – CONSOLE AND WATER INLET PARTS

WTW5000DW2 03 – CONSOLE AND WATER INLET PARTS

Written by

in

WTW5000DW2 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1W10920641 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W11116590-includeCORE Whirlpool W11116590 Washer Electronic Control Board + Core
7W10641340 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11501455 Whirlpool Knob Assembly
14W11176265 Whirlpool Knob
15WPW10285518 Whirlpool Cycle Switch
16W11211519 Whirlpool Wire Harness
17W11210459 Whirlpool Washer Water Inlet Valve
18W10868094 Whirlpool Wire Harness
19WPW10596298 Whirlpool Push Button
20W11084340 Whirlpool Push Button
21WPW10285511 Whirlpool Cycle Switch
22W10786100 Whirlpool Wire Harness
