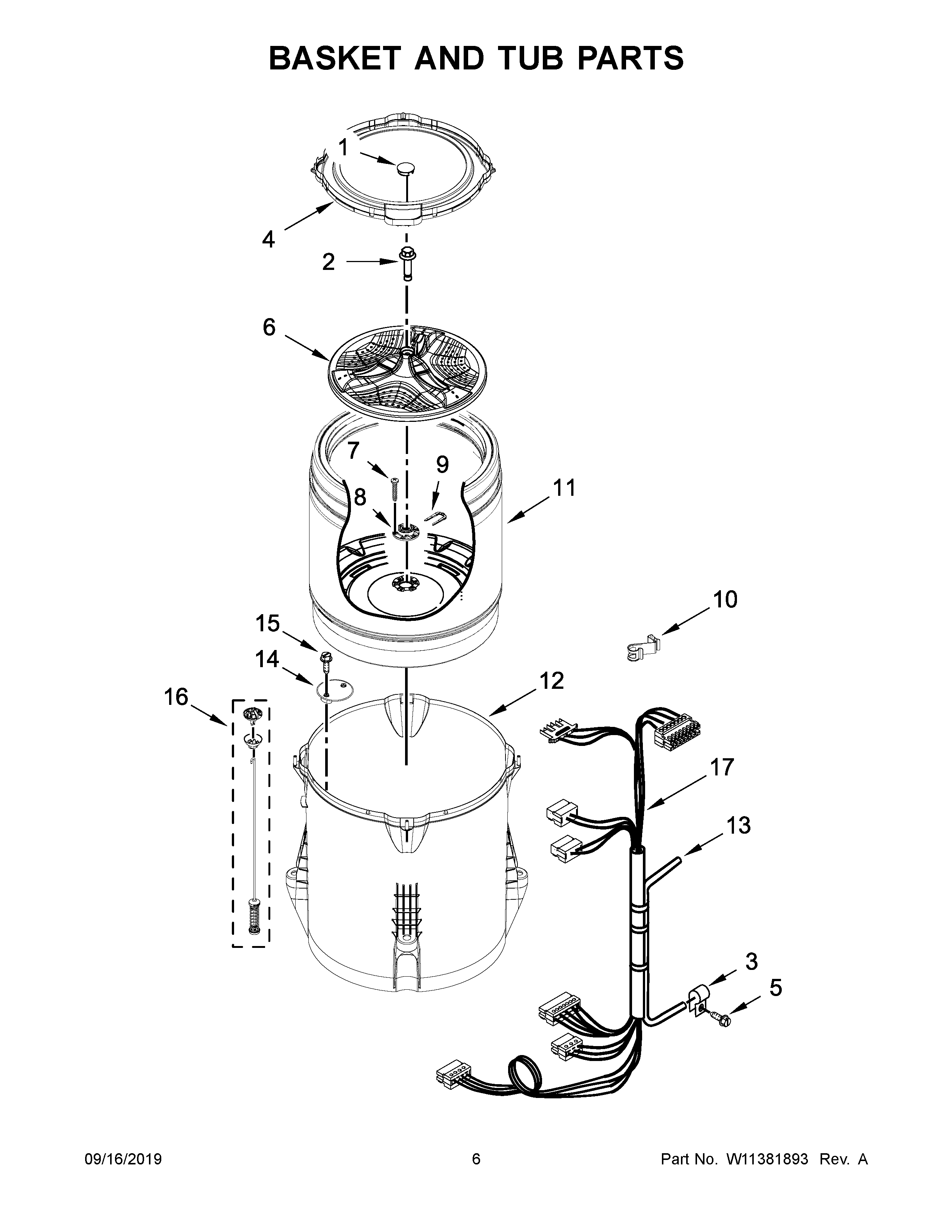

WTW5000DW3 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W10752187 Whirlpool Screw
3W10005430 Whirlpool Clamp
4W10849477 Whirlpool Tub Ring
5WPW10109200 Whirlpool Screw
6W10752283 Whirlpool Washer Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10CLIP
11W10752719 Whirlpool Basket Assembly
12W11219115 Whirlpool Outer Tub
13WP353244 Whirlpool Hose
14W11568797 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16SUSPENSION
17W11545744 Whirlpool Wire Harness
