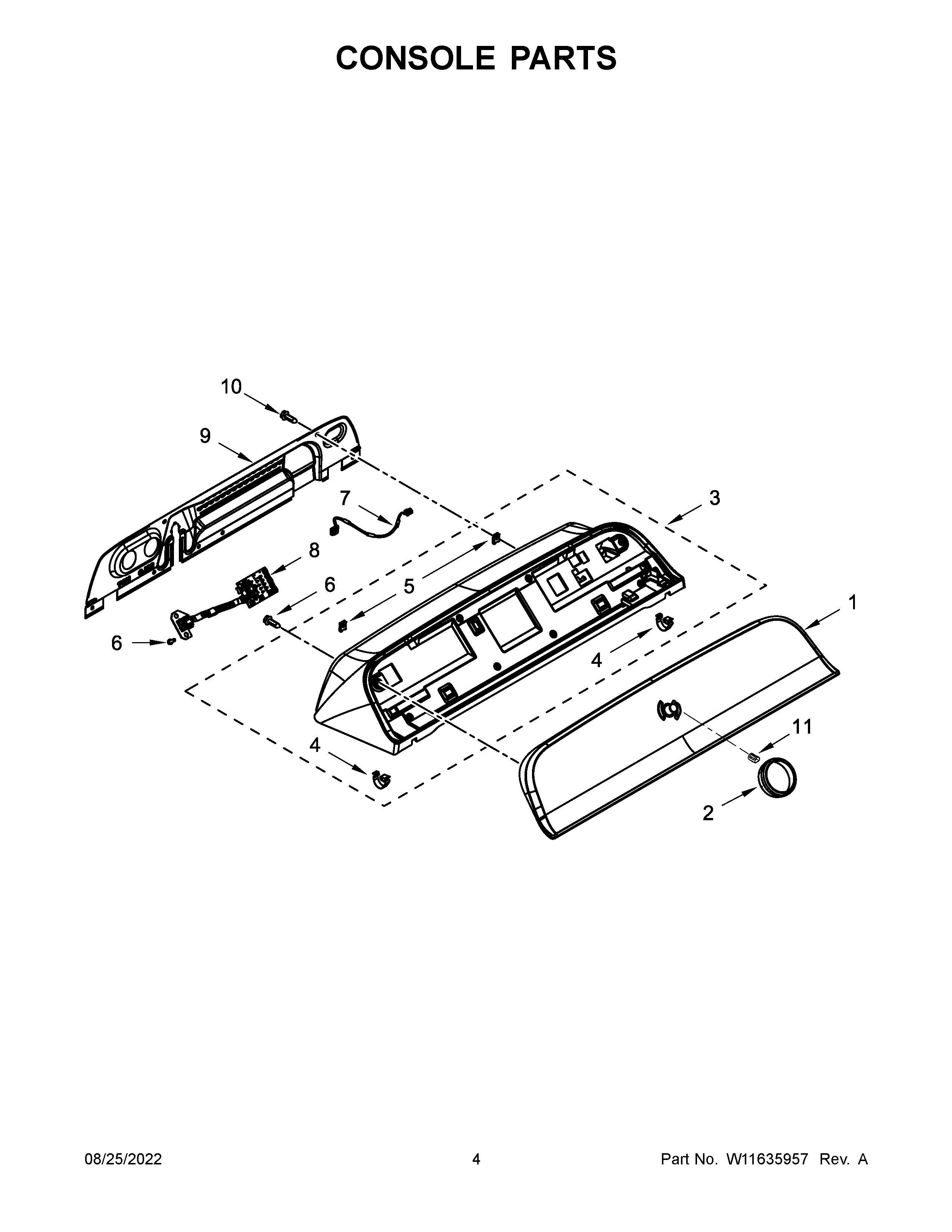

WTW500CMW0 03 – CONSOLE PARTS

Products

Position	Product
1	W11627515 Whirlpool Appliance Overlay
2	W11662669 Whirlpool Dryer Knob
3	W11569437 Whirlpool Console
4	WP8312709 Whirlpool Endcap Clip
5	W11213336 Whirlpool Nut
6	WP9740848 Whirlpool Dishwasher Screw
7	W11662667 Whirlpool Wire Harness
8	W11627516-includeCORE Whirlpool W11627516 Washer Electronic Control Board + Core
9	W11129559 Whirlpool Rear Panel
10	W11685943 Whirlpool Screw
11	WP688805 Whirlpool Spring Clip
