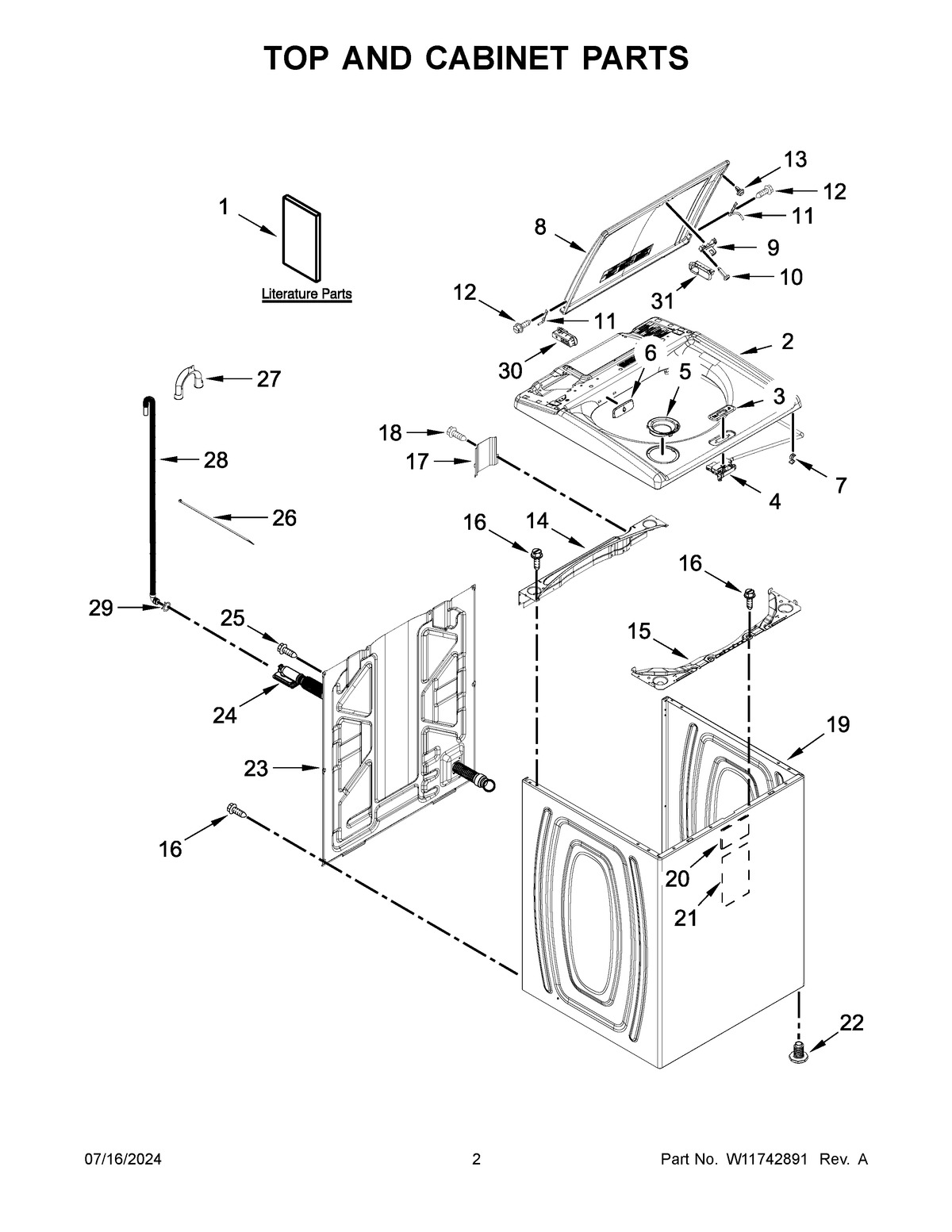

WTW5010LW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	QUICK START GUIDE
1	OWNER'S MANUAL
1A	ENERGY GUIDE
2	W11513251 Whirlpool Top
3	W11643703 Whirlpool Bezel
4	LATCH
5	W11234069 Whirlpool Dispenser
6	W11396263 Whirlpool Bezel
7	WP90016 Whirlpool Clip
8	W11513256 Whirlpool Lid
9	W11513250 Whirlpool Washer Lid Strike
10	WPW10273971 Whirlpool Screw
11A	W11513247 Whirlpool Hinge Assembly
11	WP91770 Whirlpool Hinge
12	SCREW
13	8572266 Whirlpool Bumper Assembly
14	W11712680 Whirlpool Commercial Part Brace
15	W11381327 Whirlpool Brace
16	W11685943 Whirlpool Screw
17	W10676061 Whirlpool Cover Assembly
18	W10846509 Whirlpool Screw
19	W10676680 Whirlpool Cabinet
20	WP8564458 Whirlpool Absorber
21	W11611669 Whirlpool Absorber
22	W11213957 Whirlpool Dishwasher Leveling Leg
23	W11486091 Whirlpool Rear Panel
24	W11735315 Whirlpool Hose
25	WP9740848 Whirlpool Dishwasher Screw
26	WPW10339879 Whirlpool Wire Tie
27	WPW10280024 Whirlpool Retainer
28	W11244231 Whirlpool Hose
29	WP356138 Whirlpool Hose Clamp
30	W11654274 Whirlpool Washer Bearing
31	W11654272 Whirlpool Bearing
