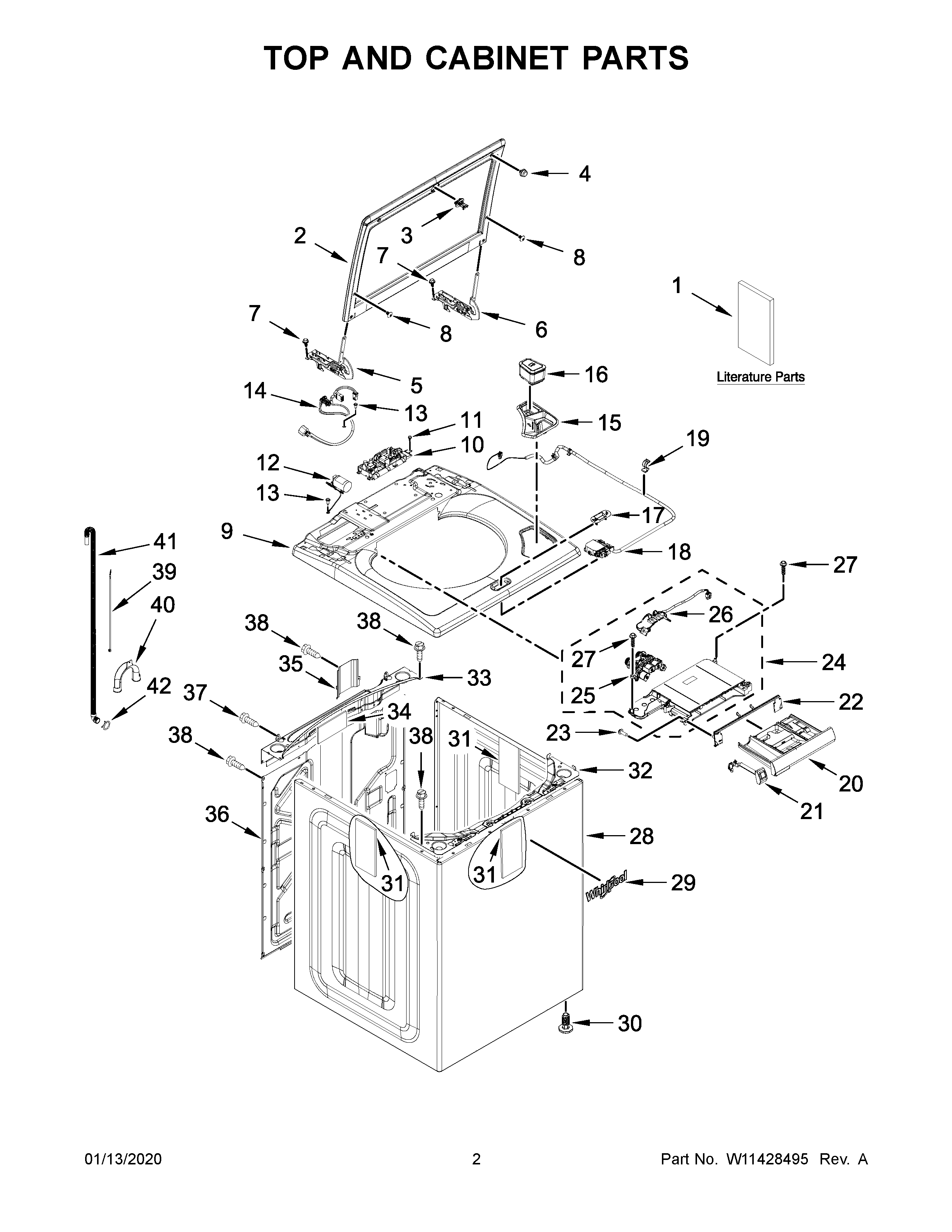

WTW5100HW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	TECH SHEET
1B	ENERGY GUIDE
1	OWNERS MANUAL
1D	WIRING DIAGRAM
1A	QUICK REFERENCE GUIDE
2	W11413336 Whirlpool Lid
3	W11457841 Whirlpool Door Strike
4	W11398707 Whirlpool Grommet Assembly
5	W11551369 Whirlpool Left Hand Hinge
6	W11551376 Whirlpool Hinge
7	WP489128 Whirlpool Refrigerator Screw
8	W11679612 Whirlpool Washer Bolt
9A	W11423770 Whirlpool Top Assembly
9	W11423772 Whirlpool Top
10	W11543996-includeCORE Whirlpool W11543996 Refrigerator Electronic Control Board + Core
11	WP693995 Whirlpool Screw
12	FILTER
13	W10846509 Whirlpool Screw
14	W11551294 Whirlpool Power Cord Harness Non-Heating
15	W11662175 Whirlpool Washer Bezel
16	W11416456 Whirlpool Adhesive
17	W11545554 Whirlpool Knob Bezel
17A	W11559688 Whirlpool Knob Bezel
18	LATCH
19	WP90016 Whirlpool Clip
20	W11611449 Whirlpool Drawer Assembly
21	W11662334 Whirlpool Switch
22	W11375989 Whirlpool Bezel
23	W11700520 Whirlpool Screw
24	W11400157 Whirlpool Drawer Assembly
25	W11165546 Whirlpool Washer Water Inlet Valve
26	W11676811 Whirlpool Wire Harness
27	WPW10109200 Whirlpool Screw
28A	W10676681 Whirlpool Cabinet Assembly
28	W10676680 Whirlpool Cabinet
29	W11178521 Whirlpool Dishwasher Nameplate
30	W11213957 Whirlpool Dishwasher Leveling Leg
31	W11197416 Whirlpool Absorber
32A	W11661767 Whirlpool Brace
32	W11695476 Whirlpool Brace Support
33	W11712680 Whirlpool Commercial Part Brace
34	WP8564458 Whirlpool Absorber
35	W10676061 Whirlpool Cover Assembly
36	W11417171 Whirlpool Rear Panel
37	W11568617 Whirlpool Screw
38	W11685943 Whirlpool Screw
39	WPW10339879 Whirlpool Wire Tie
40	WPW10280024 Whirlpool Retainer
41	W11244231 Whirlpool Hose
42	WP356138 Whirlpool Hose Clamp
