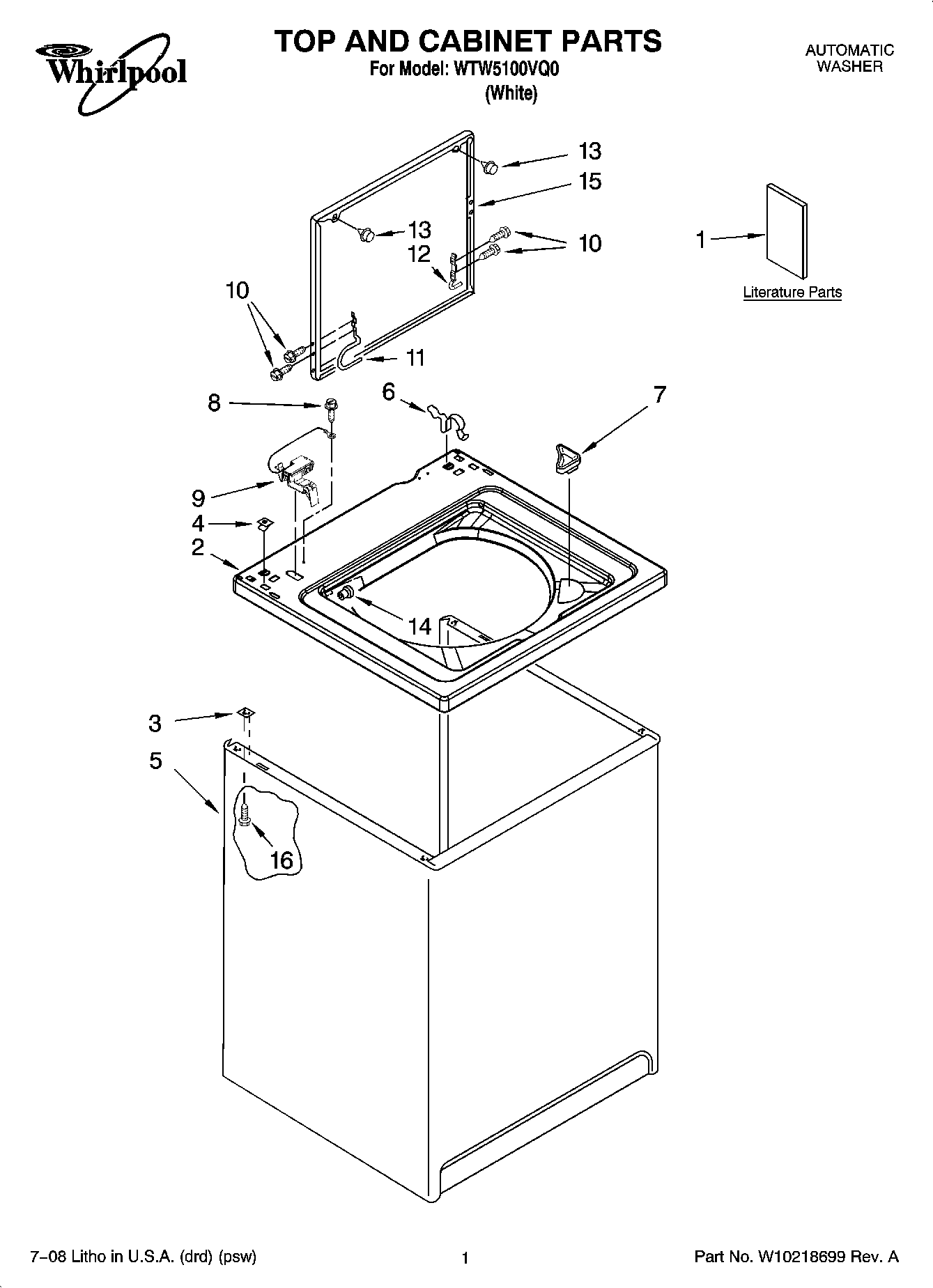

WTW5100VQ0 01 – TOP AND CABINET PARTS

WTW5100VQ0 01 – TOP AND CABINET PARTS

Written by

in

WTW5100VQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet (Spanish)
1Manual, Washer Do-It-Yourself
1Installation Instructions (English/French)
1Installation Instructions (Spanish)
1Use & Care Guide (English/French)
1Use & Care Guide (Spanish)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Guide
1Feature Sheet (English/French)
1Wiring Diagram
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
118318088 Whirlpool Hinge Assembly
12WP91770 Whirlpool Hinge
13WP9724509 Whirlpool Bumper
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WPW10193857 Whirlpool Lid Assembly
16WP3390631 Whirlpool Screw
