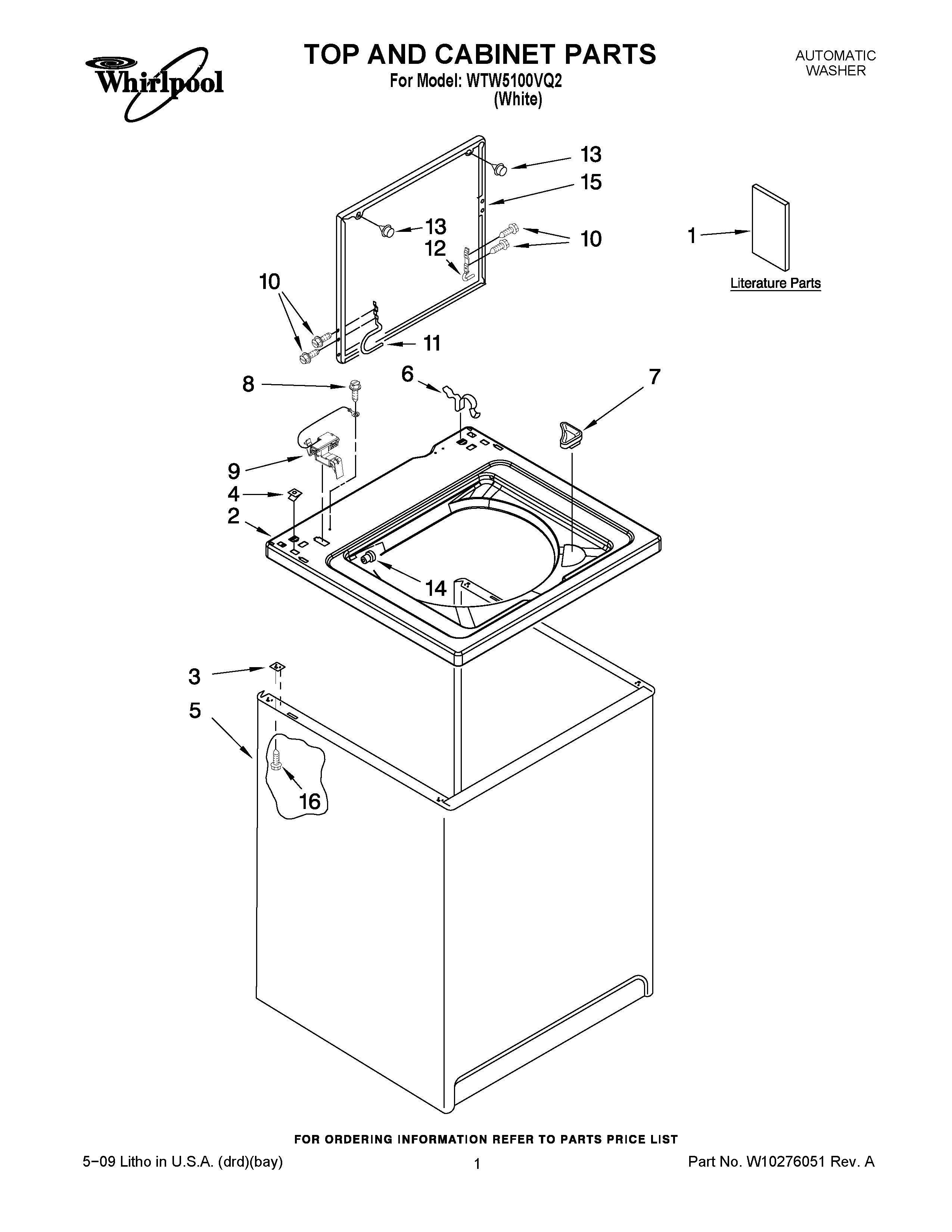

WTW5100VQ2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Manual, Washer Do-It-Yourself
1	Wiring Diagram
1	Use & Care Guide (English/French)
1	Use & Care Guide (Spanish)
1	Feature Sheet (English/French)
1	Feature Sheet (Spanish)
1	INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1	INSTALLATION INSTRUCTIONS (SPANISH)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP3362952 Whirlpool Bezel
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	SCREW
11	Hinge, Lid (L.H.)
12	WP91770 Whirlpool Hinge
13	WP9724509 Whirlpool Bumper
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	WPW10193857 Whirlpool Lid Assembly
16	WP3390631 Whirlpool Screw
