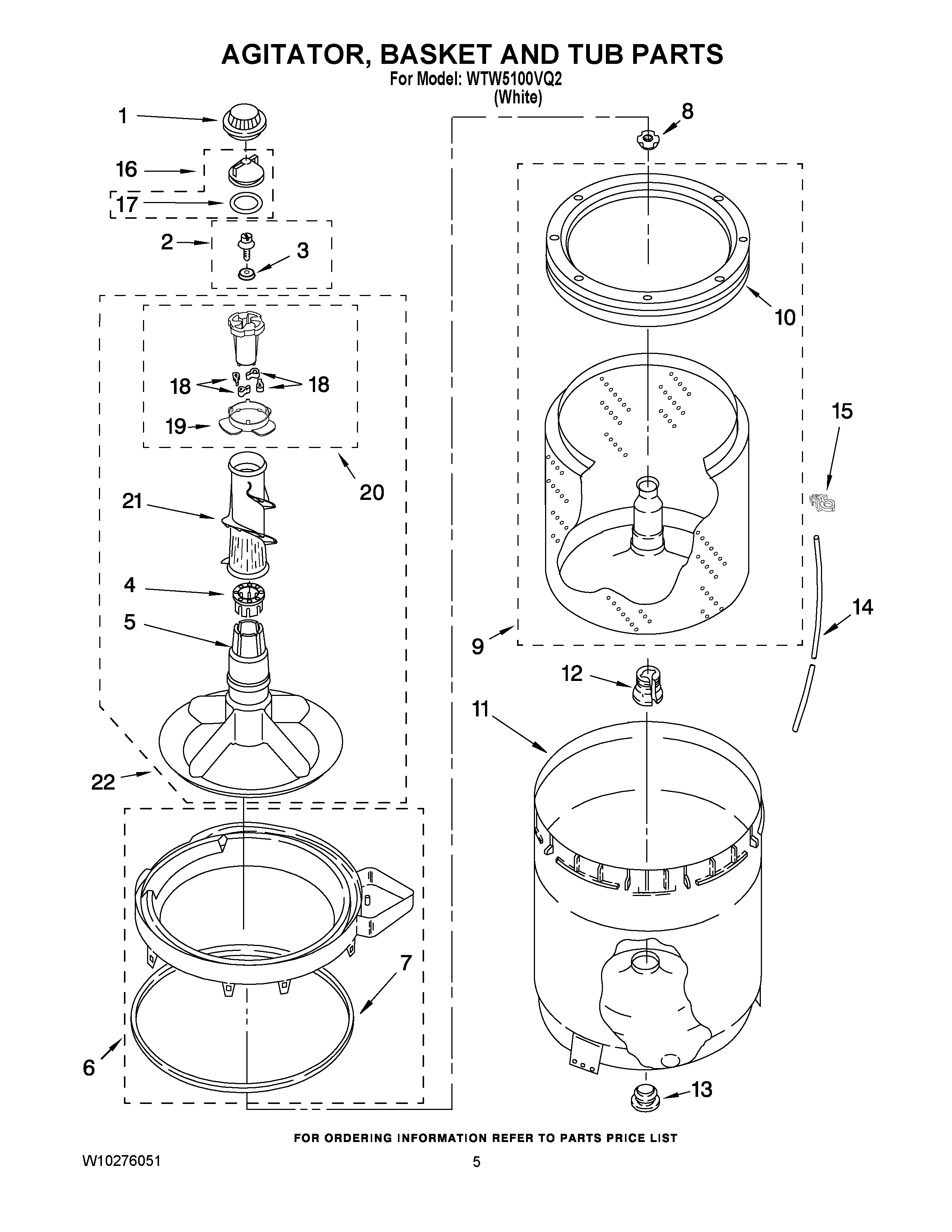

WTW5100VQ2 03 – AGITATOR, BASKET AND TUB PARTS

WTW5100VQ2 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

WTW5100VQ2 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4285587 Whirlpool Thrust Washer
5AGITATOR
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10WP387240 Whirlpool Balance Ring
1163849 Whirlpool Outer Tub Primary Assembly
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14WP353244 Whirlpool Hose
152219077 Whirlpool Refrigerator Clip
16WPW10074580 Whirlpool Agitator Inner Cap and Seal
17WPW10072840 Whirlpool Seal Assembly
1880040 Whirlpool Washer Agitator Dog Kit
19WP3363661 Whirlpool Bearing Cam
20285811 Whirlpool Washer Agitator Repair Kit
21WP3348752 Whirlpool Agitator Mover
22285565 Whirlpool Agitator Assembly
