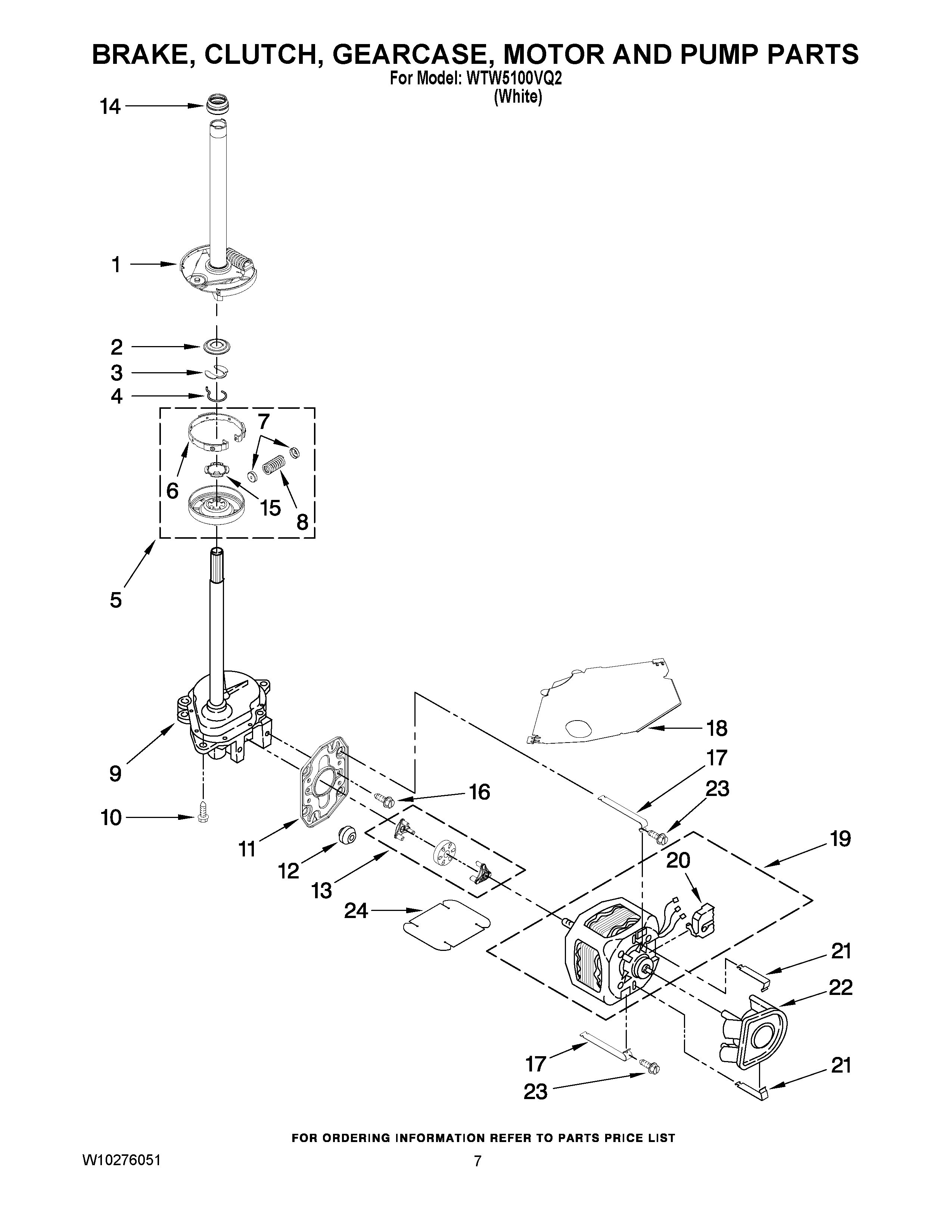

WTW5100VQ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	285785 Whirlpool Washer Direct Drive Clutch
6	285790 Whirlpool Washer Clutch Band and Lining Kit
7	WP62646 Whirlpool Cap
8	WP3946792 Whirlpool Spring
9	3360629 Whirlpool Washer Gearcase Transmission
10	WP3400516 Whirlpool Screw
11	WP62611 Whirlpool Plate
12	WP62691 Whirlpool Grommet
13	285753A Whirlpool Washer Direct Drive Motor Coupling
14	WP8577374 Whirlpool Seal Shaft
15	Clip, Anti-Rattle
17	WPW10086010 Whirlpool Motor Retainer Clip
18	W10838408 Whirlpool Motor Shield
19	WP661600 Whirlpool Drive Motor
20	WP3952056 Whirlpool Motor Switch
21	WP8546127 Whirlpool Retainer Clip
22	WP3363394 Whirlpool Washer Drain Pump
23	WP273556 Whirlpool Screw
24	WP3946532 Whirlpool Shield
