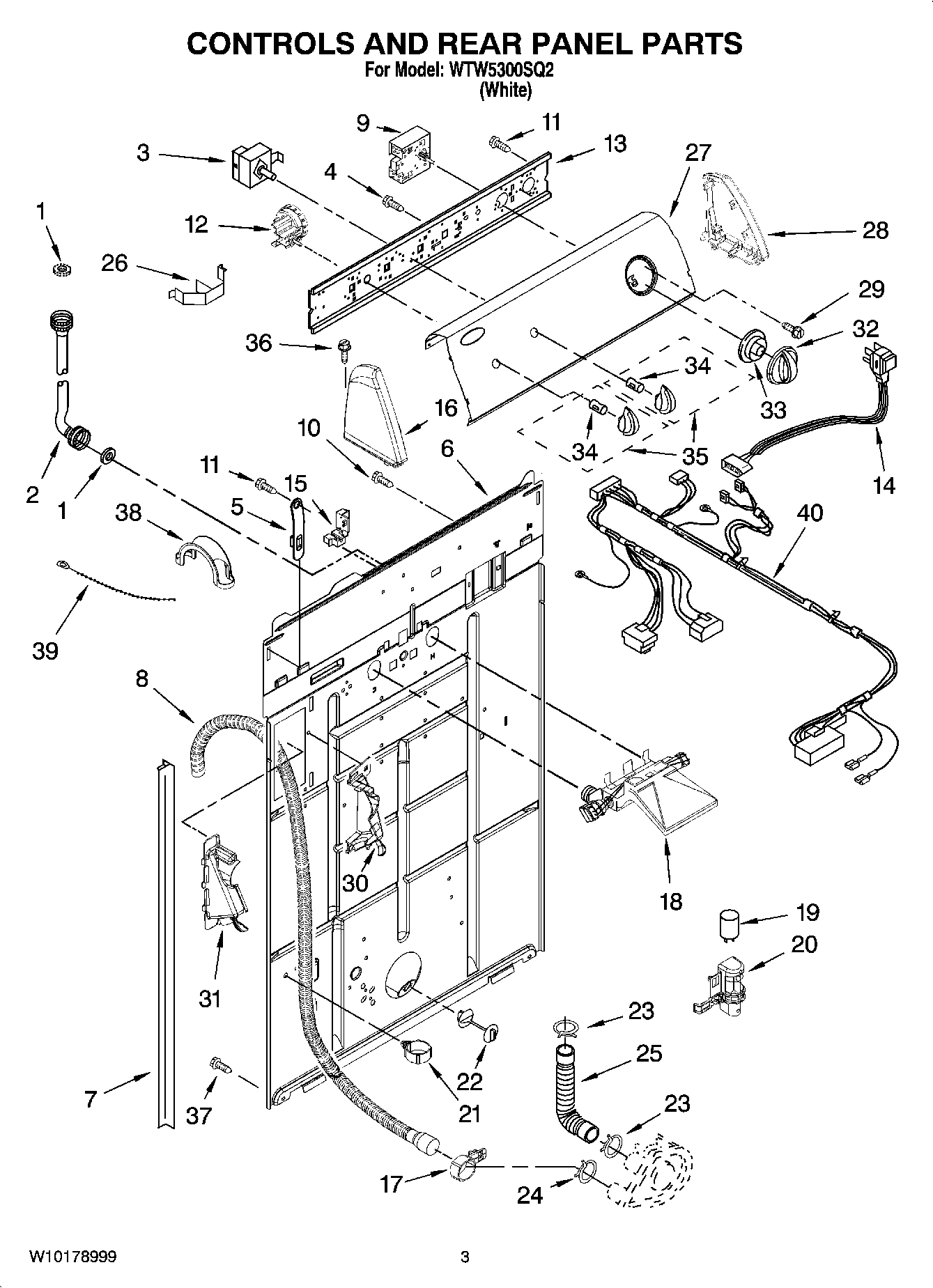

WTW5300SQ2 02 – CONTROLS AND REAR PANEL PARTS

WTW5300SQ2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

WTW5300SQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP89503 Whirlpool Washer Fill Hose
2FILL HOSE 5' W/WASHER
3WP8578337 Whirlpool Water Temperature Switch
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8546685 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339334 Whirlpool Washer Water Level Control Switch
13Bracket, Control
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
178541668 Whirlpool Washer Clamp
18WPW10140917 Whirlpool Valve
19CAPACITOR
20Clip, Capacitor
21Clamp, Hose
22WP8519200 Whirlpool Support Assembly
23WP616099 Whirlpool Clamp
24WP285655 Whirlpool Hose Clamp
25285871 Whirlpool Hose and Clamp
26Clip, Harness & Pressure Hose
27Panel, Console
28W10820038 Whirlpool Endcap
29WP3400818 Whirlpool Screw
31WPW10096921 Whirlpool Hose
32Knob, Timer
33WP8566018 Whirlpool Dial Assembly
34WP8536939 Whirlpool Spring Clip
35Knob, Control
36WP388326 Whirlpool Screw
37WP3390631 Whirlpool Screw
38WP8577378 Whirlpool Retainer
39WPW10339879 Whirlpool Wire Tie
40Wiring Harness (For Detail See Pages 9 & 10)
