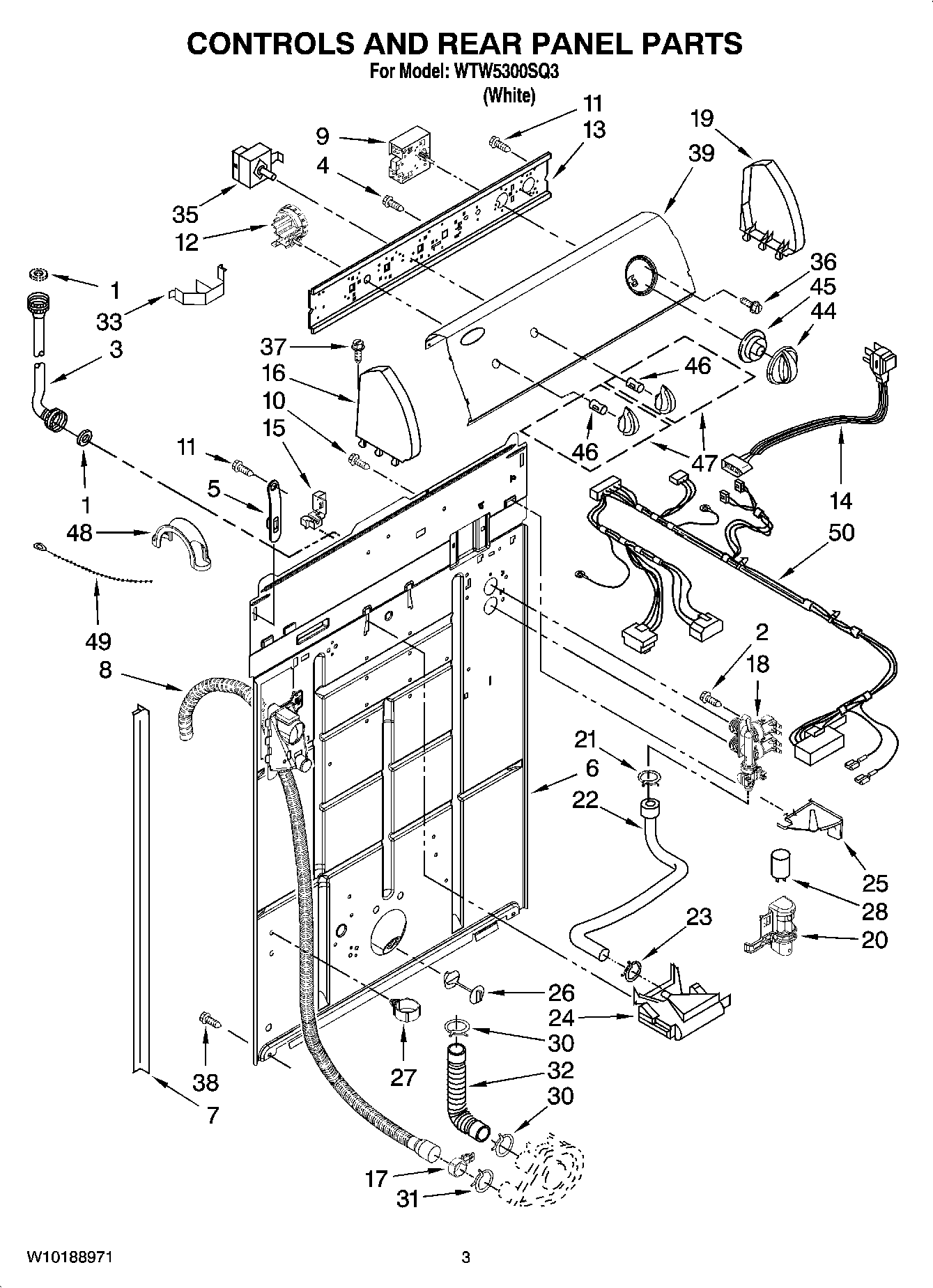

WTW5300SQ3 02 – CONTROLS AND REAR PANEL PARTS

WTW5300SQ3 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

WTW5300SQ3 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8WPW10096921 Whirlpool Hose
9WP8546685 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339334 Whirlpool Washer Water Level Control Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
178541668 Whirlpool Washer Clamp
18WP8578341 Whirlpool Valve
19W10820038 Whirlpool Endcap
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WPL 8539874
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35WP8578337 Whirlpool Water Temperature Switch
36WP3400818 Whirlpool Screw
37WP388326 Whirlpool Screw
38WP3390631 Whirlpool Screw
39Panel, Console
44Knob, Timer
45WP8566018 Whirlpool Dial Assembly
46WP8536939 Whirlpool Spring Clip
47Knob, Control
48WP8577378 Whirlpool Retainer
49WPW10339879 Whirlpool Wire Tie
50Wiring Harness (For Detail See Pages 9 & 10
