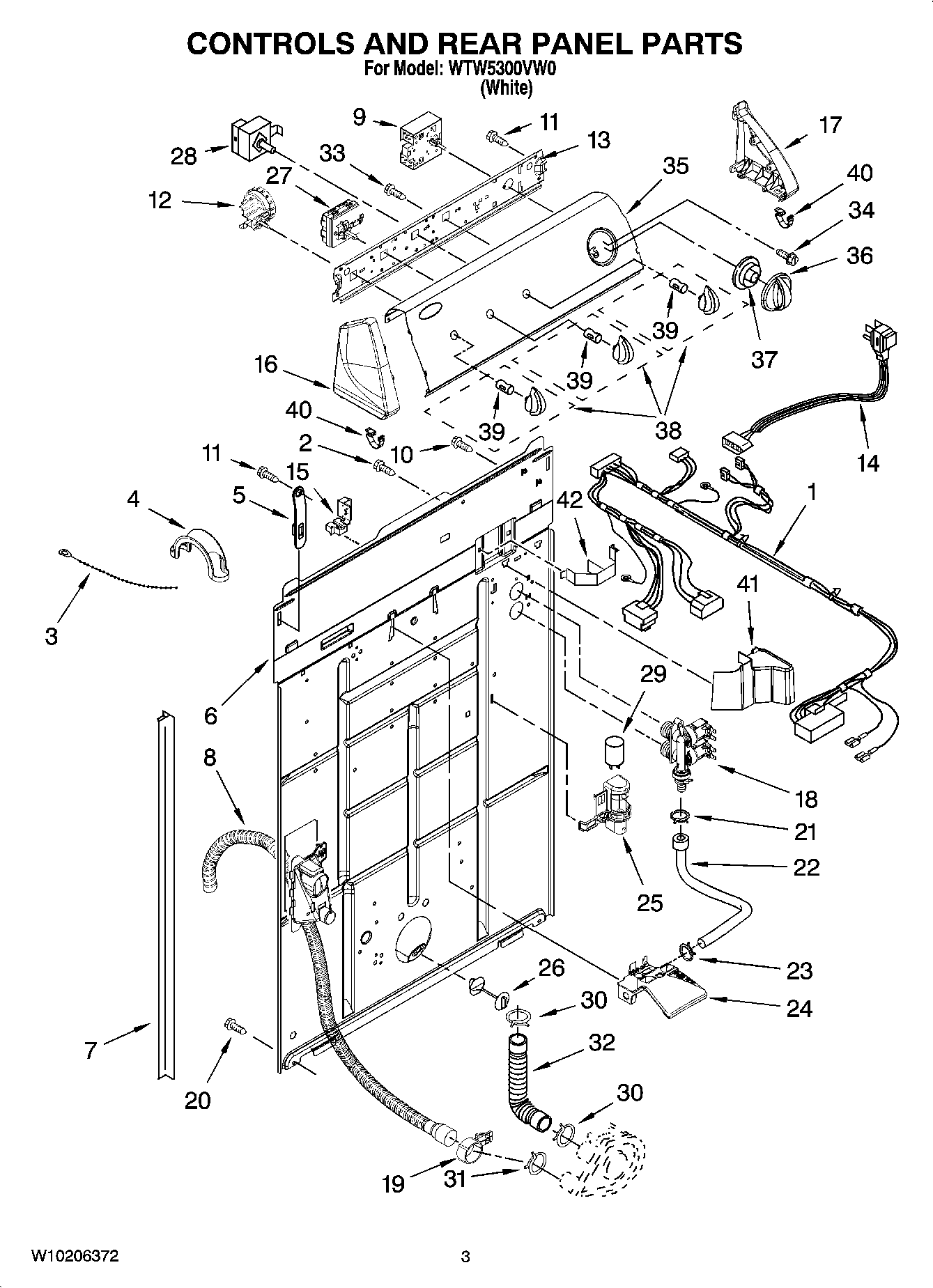

WTW5300VW0 02 – CONTROLS AND REAR PANEL PARTS

WTW5300VW0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

WTW5300VW0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Harness, Wiring (For Detail See Pages 9 & 10)
2WP9740848 Whirlpool Dishwasher Screw
3WPW10339879 Whirlpool Wire Tie
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9WP8577356 Whirlpool Washer Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337781 Whirlpool Washer Water Level Switch
13Bracket, Control
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
17WP8565954 Whirlpool Endcap
18WP3979346 Whirlpool Water Inlet Valve
198541668 Whirlpool Washer Clamp
20WP3390631 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22WPW10190501 Whirlpool Hose
24WPW10190514 Whirlpool Vacuum Break
25Clip, Capacitor
26WP8519200 Whirlpool Support Assembly
27WPW10184148 Whirlpool Temperature Switch
28W10851055 Whirlpool Cycle Switch
29CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
333400073 Whirlpool Screw
34WP3400818 Whirlpool Screw
35Panel, Console
36Knob, Timer
37WP8566018 Whirlpool Dial Assembly
38Knob, Control (3)
39WP8536939 Whirlpool Spring Clip
40WP8312709 Whirlpool Endcap Clip
41Sh
42Clip, Harness & Pressure Hose
