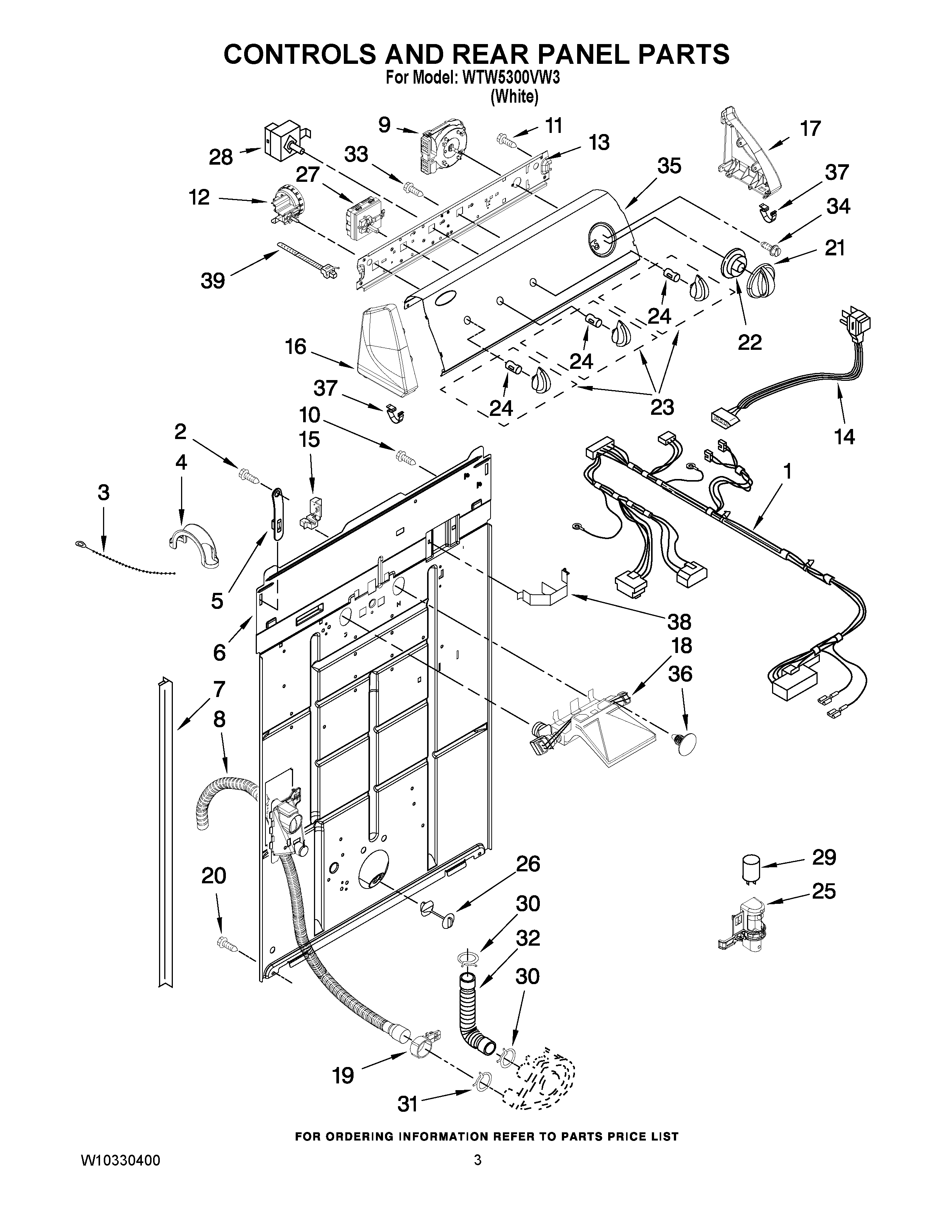

WTW5300VW3 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	W10212712 Whirlpool Wire Harness
2	WP9740848 Whirlpool Dishwasher Screw
3	WPW10339879 Whirlpool Wire Tie
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WP8577356 Whirlpool Washer Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	WPW10231400 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	WPW10144820 Whirlpool Washer Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control (3)
24	WP8536939 Whirlpool Spring Clip
25	Clip, Capacitor
26	WP8519200 Whirlpool Support Assembly
27	WPW10184148 Whirlpool Temperature Switch
28	WPW10168257 Whirlpool Cycle Switch
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
34	WP3400818 Whirlpool Screw
35	Panel, Console
36	Clip, Push-In Retainer
37	WP8312709 Whirlpool Endcap Clip
38	Clip, Harness & Pressure Hose
39	CABLE TIE
