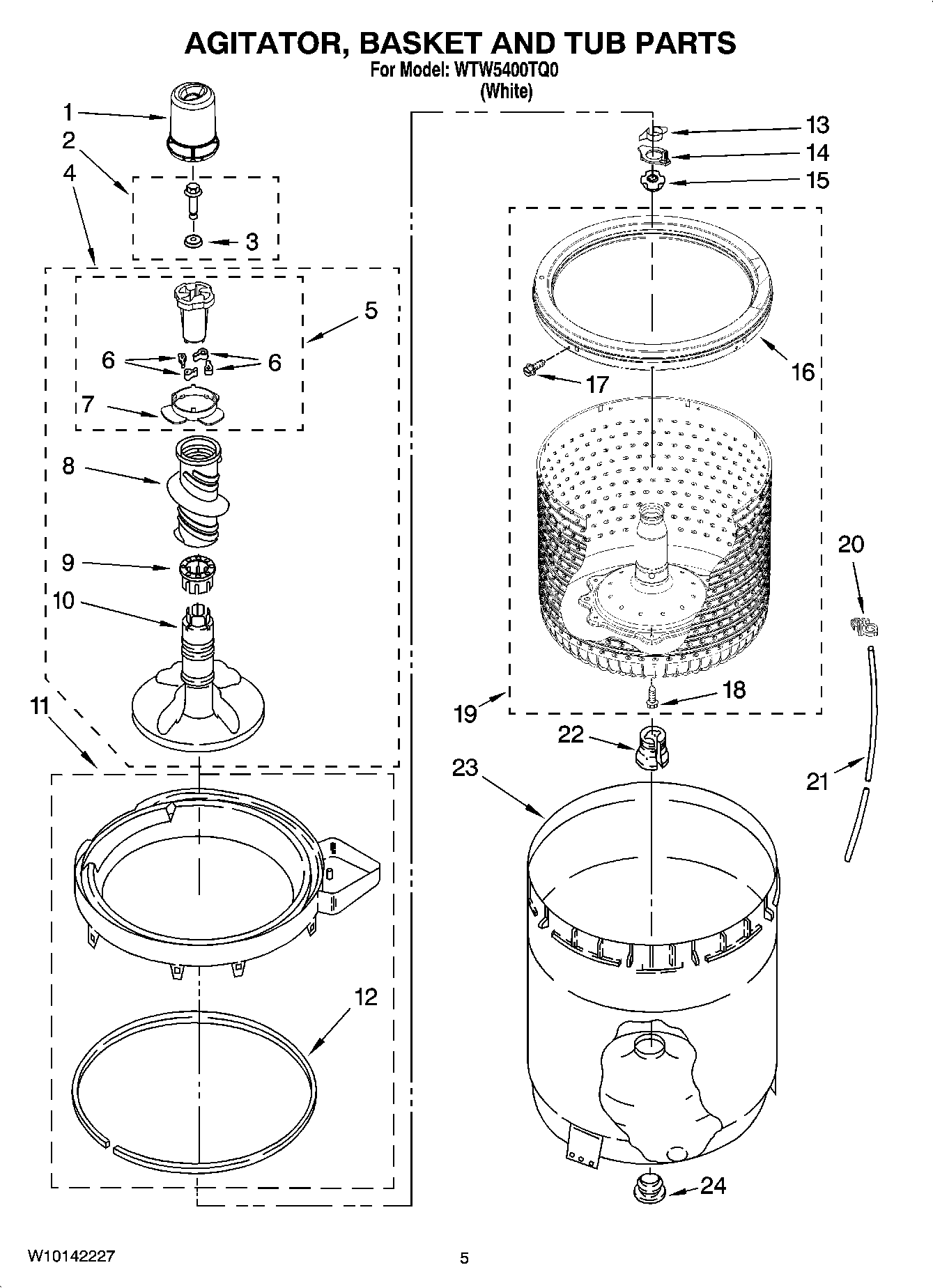

WTW5400TQ0 03 – AGITATOR, BASKET AND TUB PARTS

WTW5400TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

WTW5400TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1Fabric Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4WPW10093671 Whirlpool Agitator
5285748 Whirlpool Agitator Cam Kit
680040 Whirlpool Washer Agitator Dog Kit
7WP3363661 Whirlpool Bearing Cam
8WP3360824 Whirlpool Agitator Auger
9285587 Whirlpool Thrust Washer
10W10093670 Whirlpool Agitator
11W10880720 Whirlpool Tub Ring
12WP3976308 Whirlpool Tub Seal
13WP3354845 Whirlpool Clip
14WP8543666 Whirlpool Washer
15WP21366 Whirlpool Spanner Nut
16Balance Ring
17Screw, Balance Ring
18Screw, Adapter Assembly
19Basket & Balance Ring
202219077 Whirlpool Refrigerator Clip
21WP353244 Whirlpool Hose
22WP389140 Whirlpool Drive Block or Bell
2363849 Whirlpool Outer Tub Primary Assembly
24W10814296 Whirlpool Washer Center Post Seal Gasket
