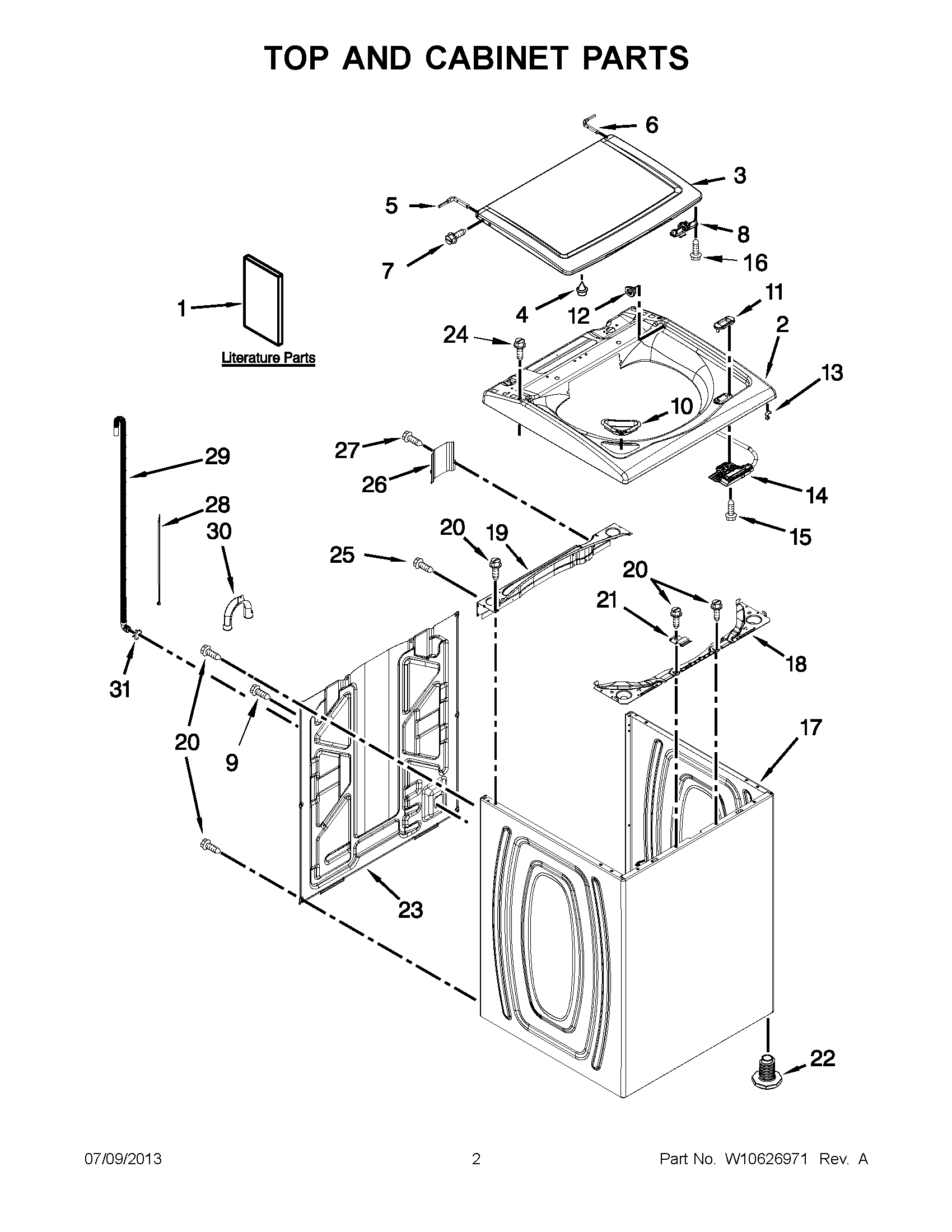

WTW5500BW0 01 – TOP AND CABINET PARTS

WTW5500BW0 01 – TOP AND CABINET PARTS

Written by

in

WTW5500BW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1ENERGY GUIDE
2WPW10246376 Whirlpool Top Assembly
3WPW10270529 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5W10295775 Whirlpool Hinge
6W10569655 Whirlpool Hinge
7W11404293 Whirlpool Screw
8WPW10240513 Whirlpool Strike
9WP9740848 Whirlpool Dishwasher Screw
10W10874836 Whirlpool Endcap Assembly Left Hand and Right
11WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12W10293230 Whirlpool Bearing
12BEARING, LID HINGE (LEFT)
13WP90016 Whirlpool Clip
14W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15WP8281163 Whirlpool Refrigerator Screw
16WPW10273971 Whirlpool Screw
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WPW10248088 Whirlpool Lock
22W11213957 Whirlpool Dishwasher Leveling Leg
23W11486091 Whirlpool Rear Panel
24W11700520 Whirlpool Screw
25WP489128 Whirlpool Refrigerator Screw
26W10676061 Whirlpool Cover Assembly
27W10846509 Whirlpool Screw
28WPW10339879 Whirlpool Wire Tie
29W11244231 Whirlpool Hose
30WPW10280024 Whirlpool Retainer
31WP356138 Whirlpool Hose Clamp
