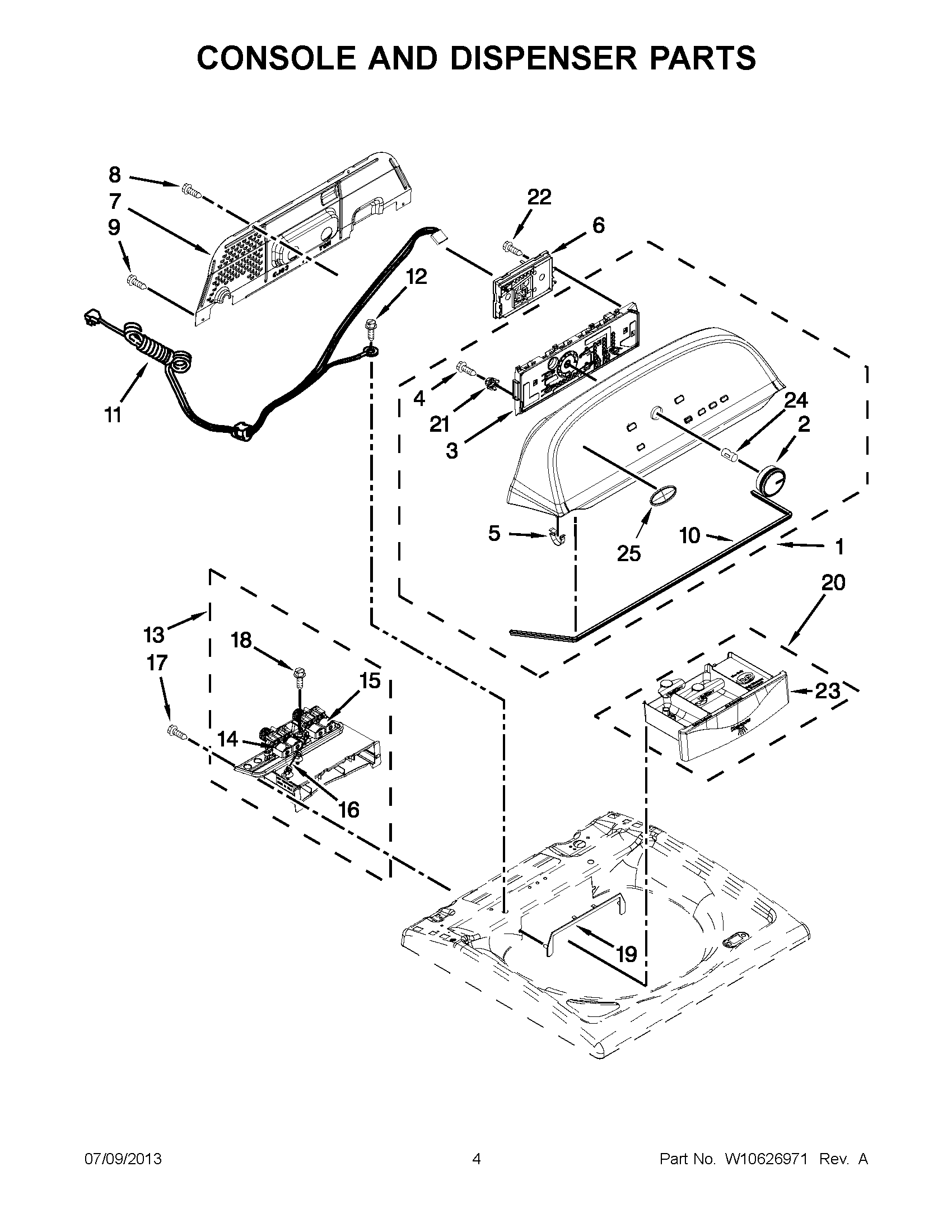

WTW5500BW0 02 – CONSOLE AND DISPENSER PARTS

WTW5500BW0 02 – CONSOLE AND DISPENSER PARTS

Written by

in

WTW5500BW0 02 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1WPW10560117 Whirlpool Console
2ASSEMBLY, CONTROL KNOB (WHITE)
3WPW10560018-includeCORE Whirlpool WPW10560018 Refrigerator Electronic Control Board + Core
4W10853898 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W10581547 Whirlpool Electronic Control Board + Core
7W10420984 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP489069 Whirlpool Compactor Screw
10W10280079 Whirlpool Seal
11WPW10525195 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WPW10601449 Whirlpool Housing Assembly
14W11168740 Whirlpool Valve
15W11168743 Whirlpool Valve
16W10601130 Whirlpool Wire Harness
17WP8281163 Whirlpool Refrigerator Screw
18WPW10109200 Whirlpool Screw
19BEZEL, DISPENSER
20WPW10658443 Whirlpool Drawer
21W10274524 Whirlpool Grommet
22WP9740848 Whirlpool Dishwasher Screw
23WPW10287476 Whirlpool Handle
24WP8536939 Whirlpool Spring Clip
25WPW10393264 Whirlpool Refrigerator Nameplate
