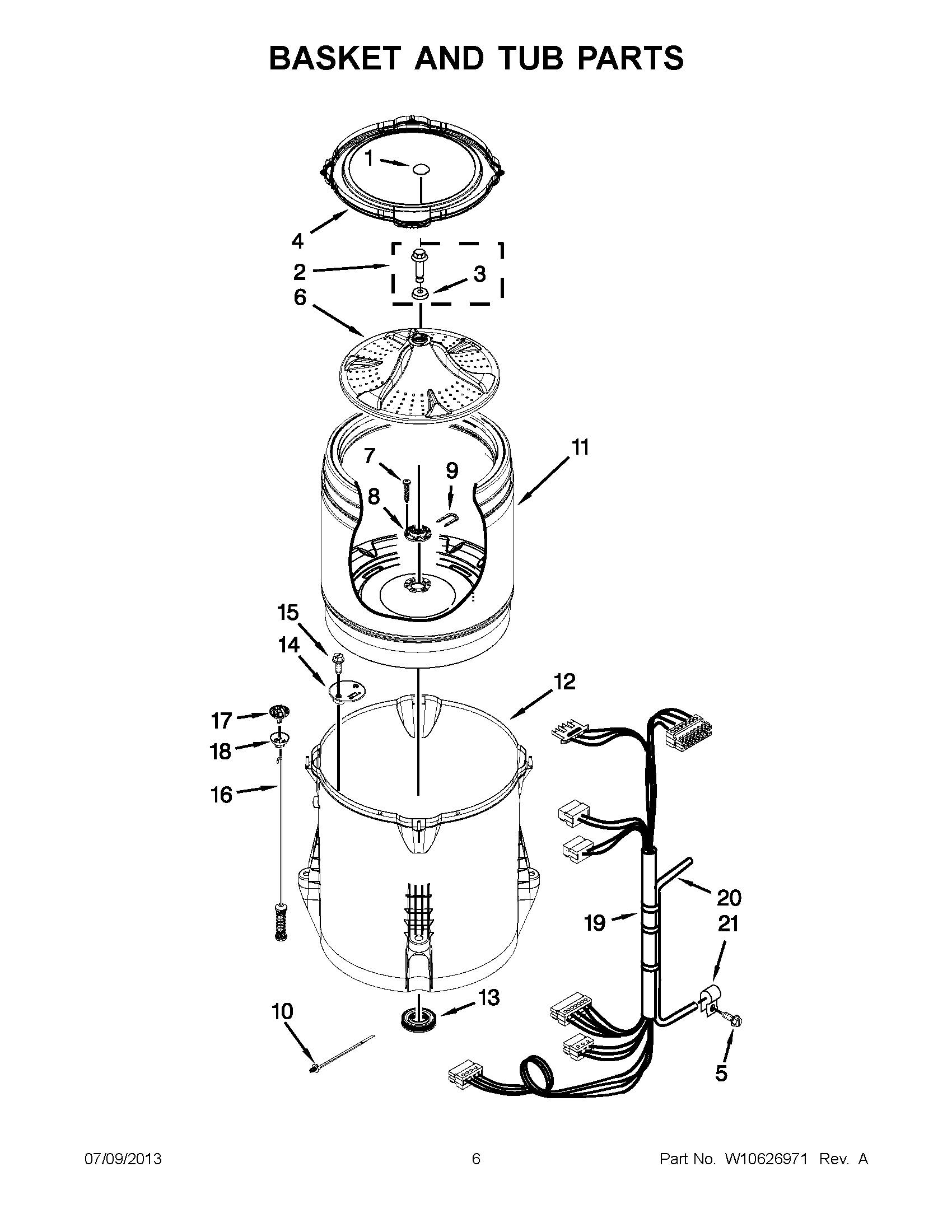

WTW5500BW0 03 – BASKET AND TUB PARTS

WTW5500BW0 03 – BASKET AND TUB PARTS

Written by

in

WTW5500BW0 03 – BASKET AND TUB PARTS

Products

PositionProduct
1WPW10305259 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4WPW10556325 Whirlpool Tub Ring
5WPW10109200 Whirlpool Screw
6WPW10215115 Whirlpool Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10WPW10298887 Whirlpool Wire Tie Assembly
11W10521298 Whirlpool Basket
12W10324648 Whirlpool Outer Tub
13W10324647 Whirlpool Seal Tub
14WPW10215093 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16W10780044 Whirlpool Suspension Assembly
17BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
18W10440729 Whirlpool Suspension
19HARNESS, LOWER
20WP353244 Whirlpool Hose
21W10005430 Whirlpool Clamp
