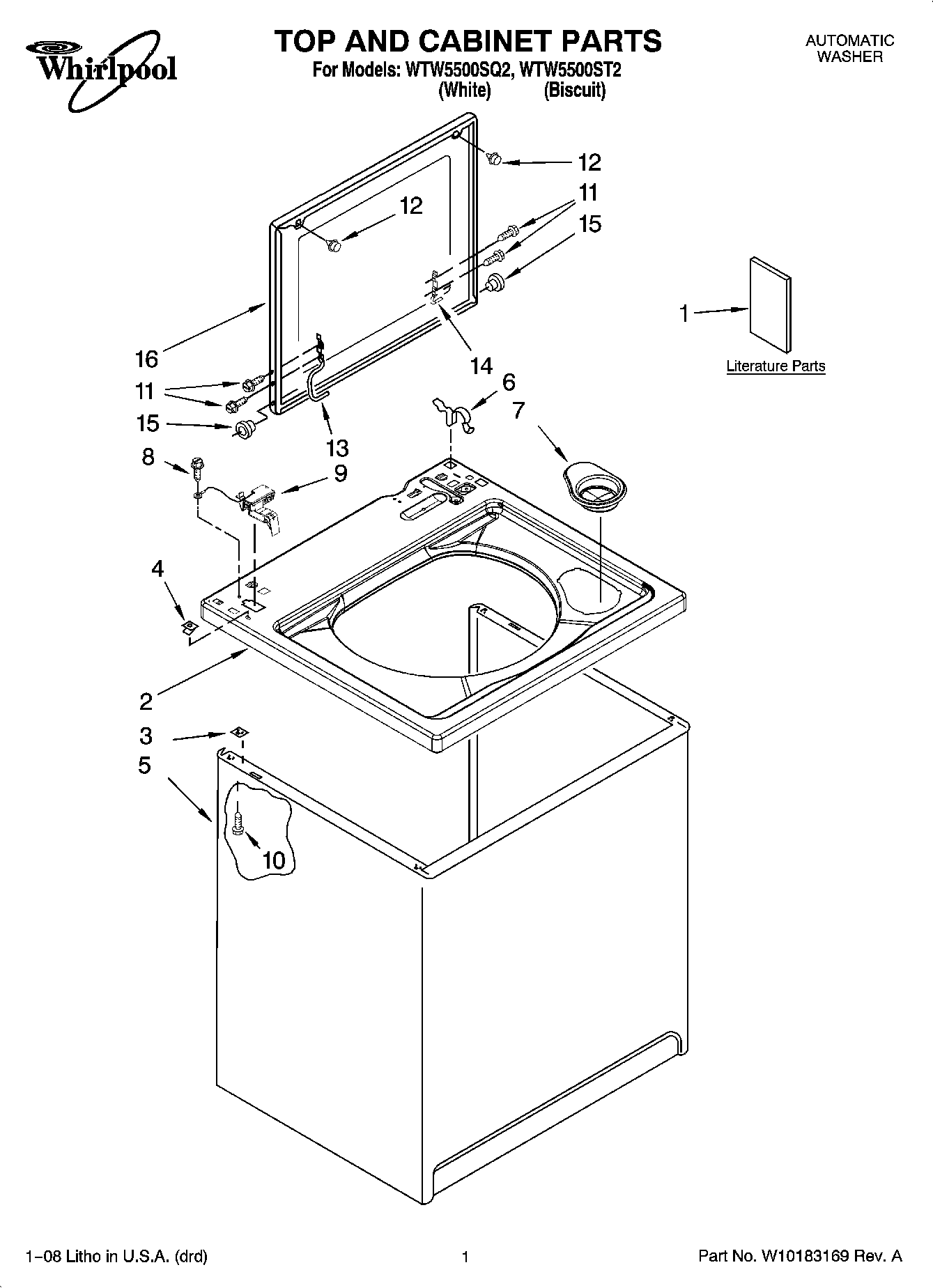

WTW5500SQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
1Feature Sheet
1Energy Guide
1Manual, Washer Do-It-Yourself
2Top (Biscuit)
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
5Cabinet (Biscuit)
6WP62780 Whirlpool Cabinet Clip
7Dispenser, Bleach
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP3390631 Whirlpool Screw
11SCREW
12WP9724509 Whirlpool Bumper
13Hinge, Lid (L.H.)
14WP91770 Whirlpool Hinge
15Bearing, Lid Hinge (2)
16Lid
16Lid (Biscuit)
