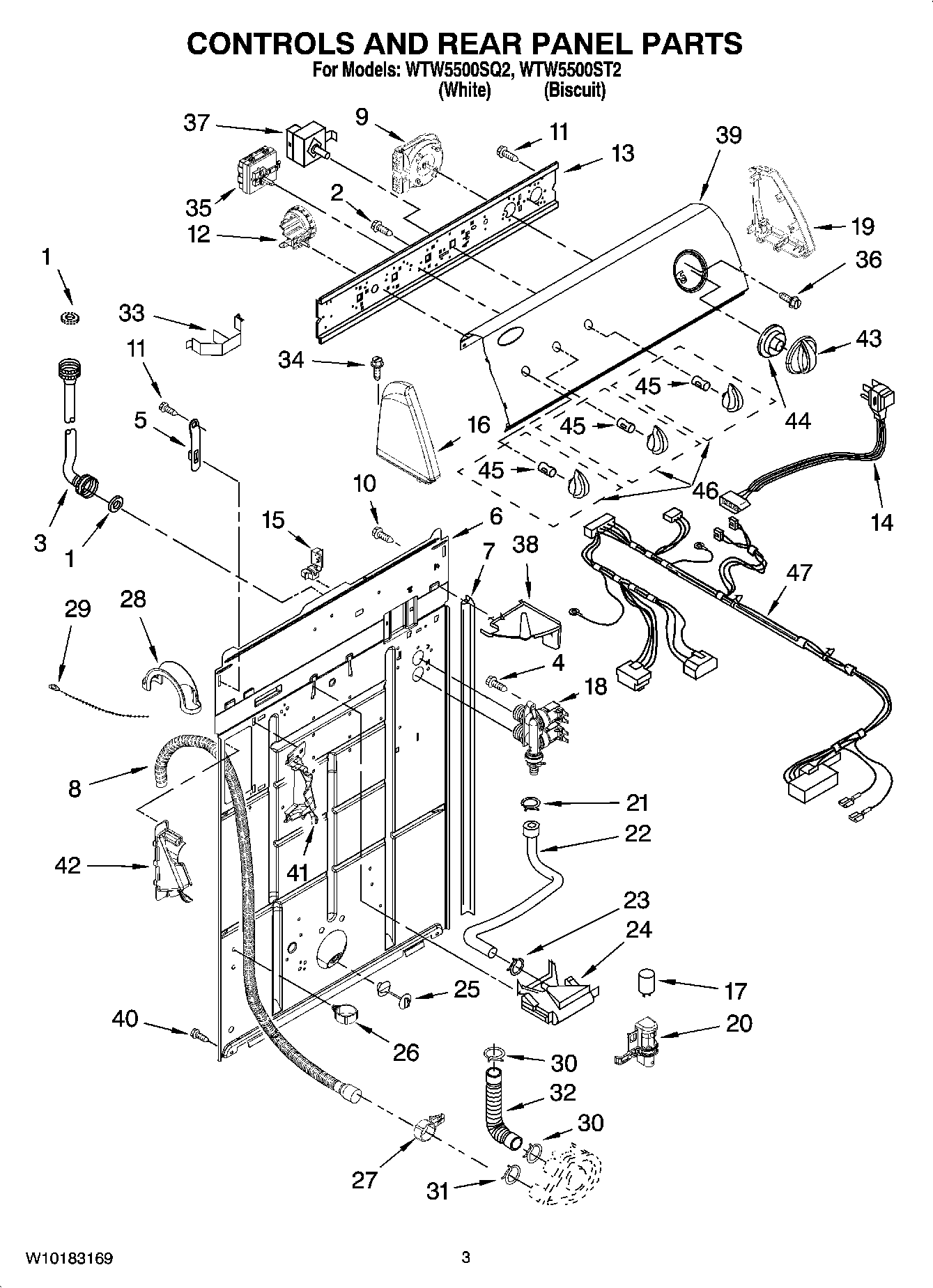

WTW5500ST2 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8577356 Whirlpool Washer Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	CAPACITOR
18	WP3979346 Whirlpool Water Inlet Valve
19	WPL 8271362
19	W10820038 Whirlpool Endcap
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	Clamp, Hose
27	8541668 Whirlpool Washer Clamp
28	WP8577378 Whirlpool Retainer
29	WPW10339879 Whirlpool Wire Tie
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	WP388326 Whirlpool Screw
35	WPW10184148 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	W10851055 Whirlpool Cycle Switch
38	WPL 8539874
39	Panel, Console (White)
39	Panel, Console (Biscuit)
40	WP3390631 Whirlpool Screw
42	WPW10096921 Whirlpool Hose
43	W10034740 Whirlpool Knob Assembly
43	Knob, Timer
44	WP8566018 Whirlpool Dial Assembly
45	WP8536939 Whirlpool Spring Clip
46	Knob, Control
46	Knob, Control (B
47	Harness, Wiring (For Detail See Pages 9 & 10)
