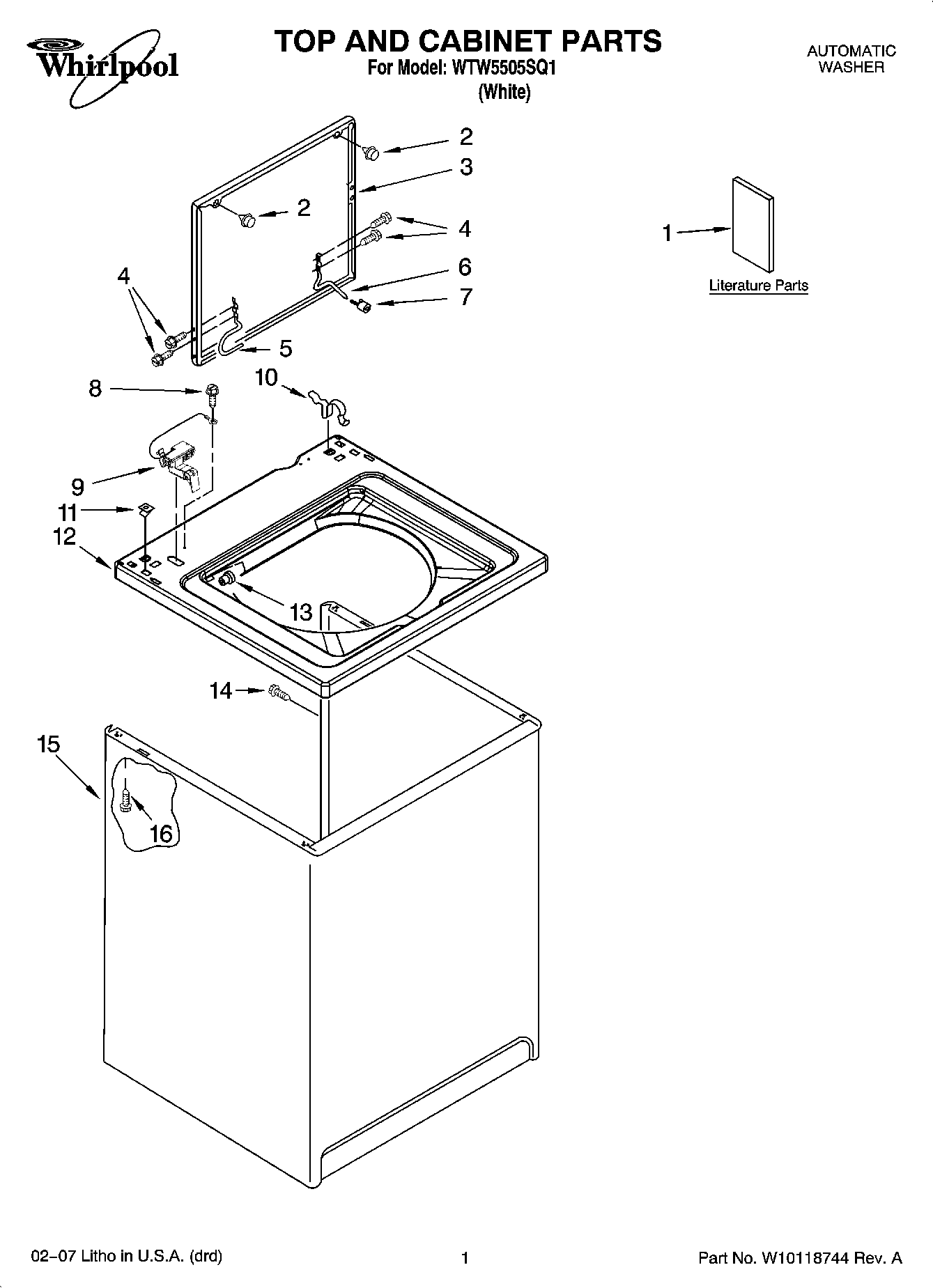

WTW5505SQ1 01 – TOP AND CABINET PARTS

WTW5505SQ1 01 – TOP AND CABINET PARTS

Written by

in

WTW5505SQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Feature Sheet
1Manual, Washer Do-It-Yourself
1Energy Guide
1Wiring Diagram
1Use & Care Guide
1Installation Instructions
2WP9724509 Whirlpool Bumper
3WPW10193857 Whirlpool Lid Assembly
4SCREW
58318088 Whirlpool Hinge Assembly
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP62780 Whirlpool Cabinet Clip
11WP357213 Whirlpool Hinge Stopper
12Top
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WP308685 Whirlpool Microwave Screw
15Cabinet (White)
16WP3390631 Whirlpool Screw
