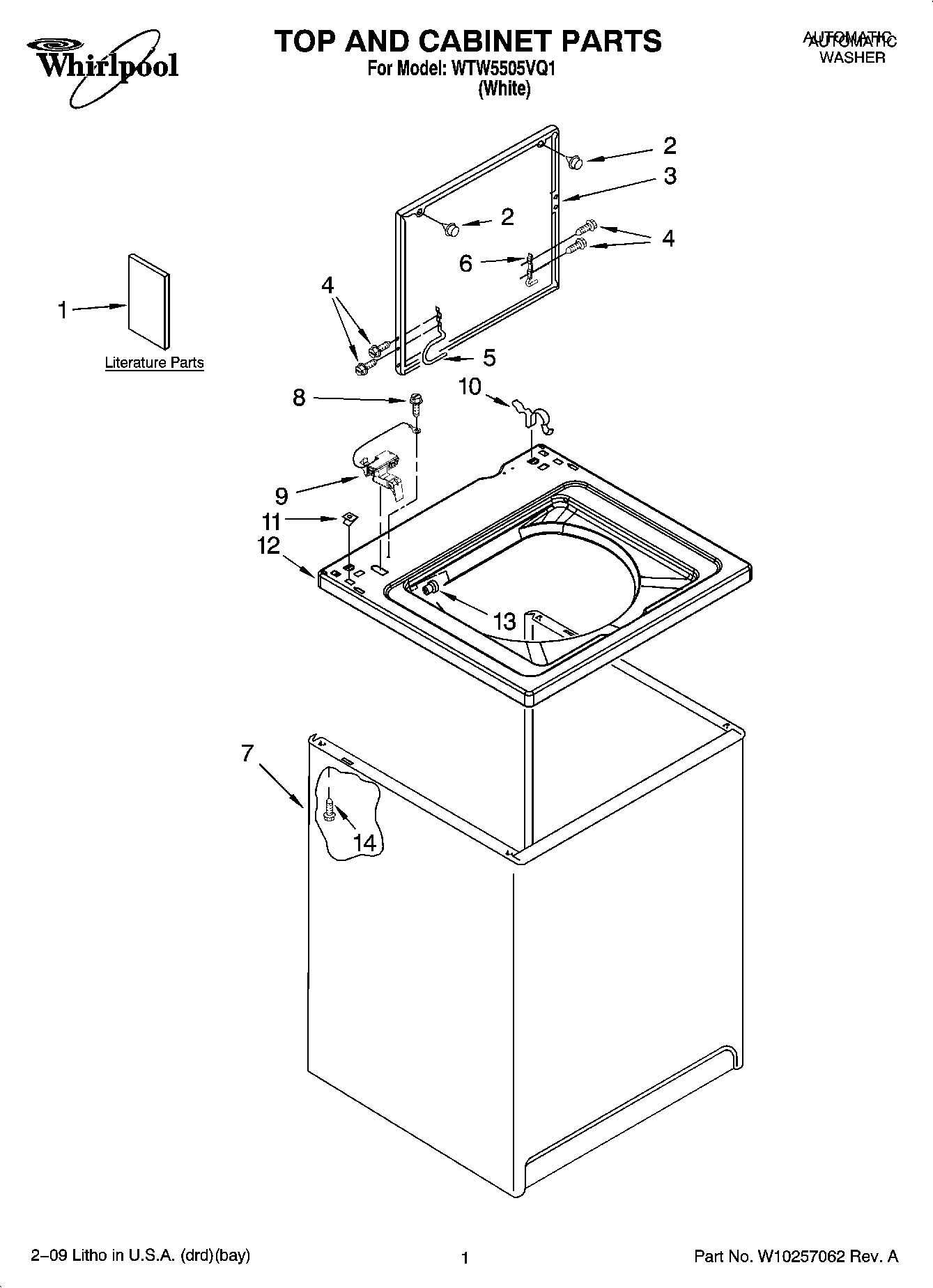

WTW5505VQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide (English/French)
1Installation Instructions (Spanish)
1Installation Instructions (English/French)
1Feature Sheet (English/French)
1Wiring Diagram
1Feature Sheet (Spanish)
1Use & Care Guide (Spanish)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Manual, Washer Do-It-Yourself
2WP9724509 Whirlpool Bumper
3WPW10193857 Whirlpool Lid Assembly
4SCREW
5Hinge, Lid (L.H.)
6WP91770 Whirlpool Hinge
7Cabinet (White)
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP62780 Whirlpool Cabinet Clip
11WP357213 Whirlpool Hinge Stopper
12Top
13WP21258 Whirlpool Washer Lid Hinge Bearing
14W10165554 Whirlpool Screw
