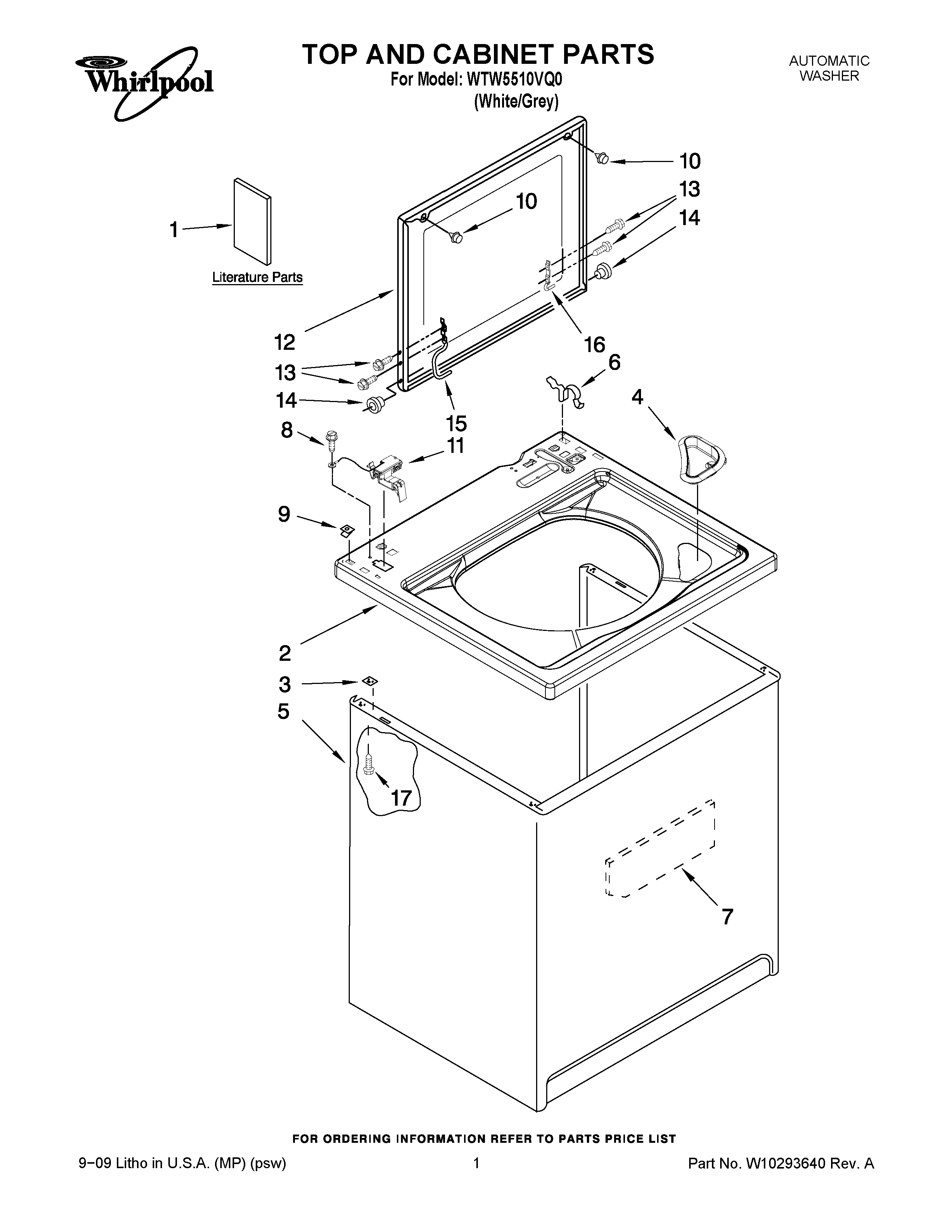

WTW5510VQ0 01 – TOP AND CABINET PARTS

WTW5510VQ0 01 – TOP AND CABINET PARTS

Written by

in

WTW5510VQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Manual, Washer Do-It-Yourself
1Feature Sheet (English/French)
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
2Top
3WP62750 Whirlpool Spacer
4WPW10192089 Whirlpool Washer Bleach Dispenser
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7W11096159 Whirlpool Sound ABS Assembly
8WP3351614 Whirlpool Screw
9WP357213 Whirlpool Hinge Stopper
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12Lid
13SCREW
14Bearing, Lid Hinge (2)
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
17WP3390631 Whirlpool Screw
