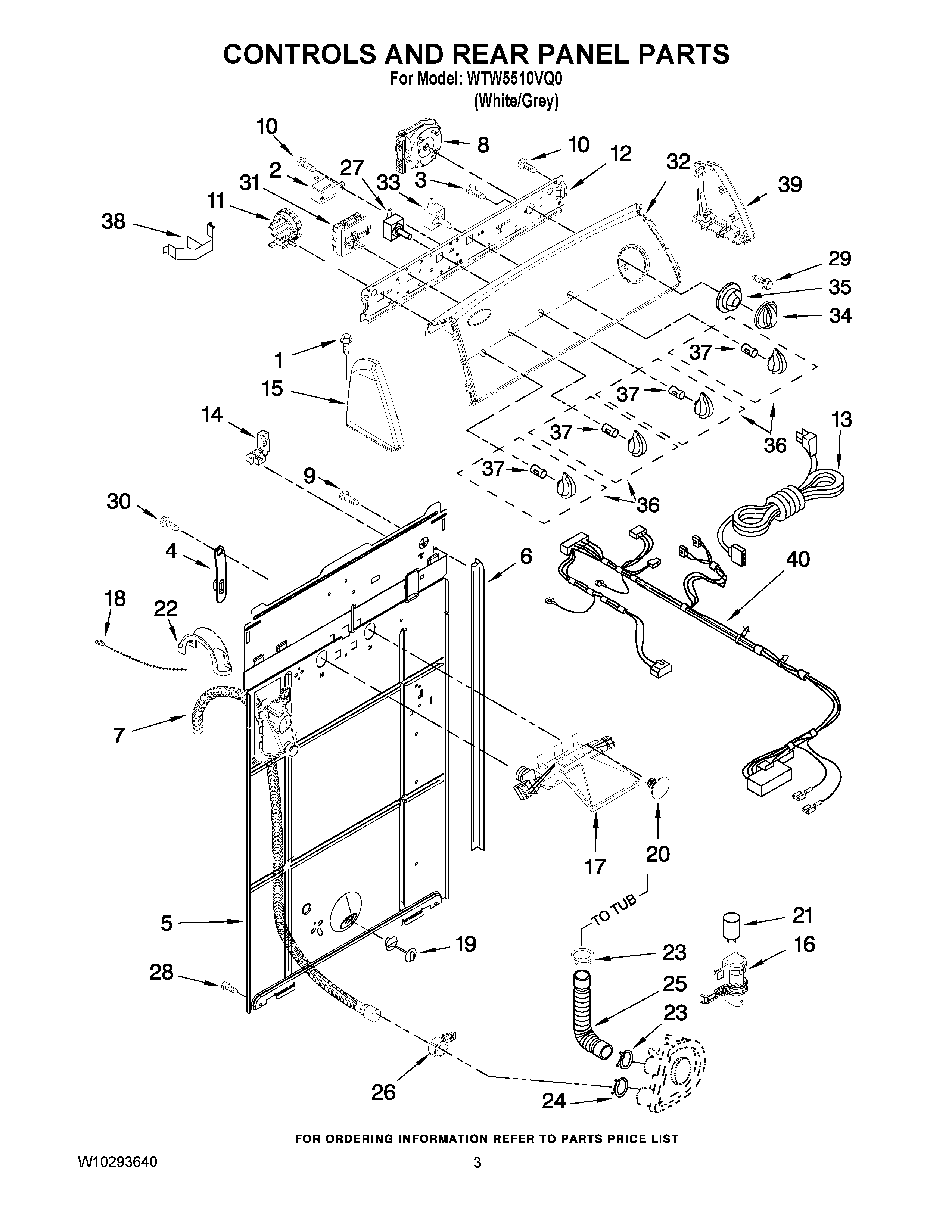

WTW5510VQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP388326 Whirlpool Screw
2	WP694419 Whirlpool Buzzer Adjuster
3	3400073 Whirlpool Screw
4	WP8568314 Whirlpool Strap
5	WPW10194450 Whirlpool Rear Panel
6	WP62747 Whirlpool Pad
7	WPW10189267 Whirlpool Drain Hose
8	WPW10175553 Whirlpool Timer
9	WP3351614 Whirlpool Screw
10	WP90767 Whirlpool Screw
11	W10337781 Whirlpool Washer Water Level Switch
12	Bracket, Control
13	Cord, Power (Includes Item 15)
14	Strain Relief, Power Cord
16	Clip, Capacitor
17	WPW10144820 Whirlpool Washer Water Inlet Valve
18	WPW10339879 Whirlpool Wire Tie
19	WP8519200 Whirlpool Support Assembly
20	Clip, Push-In Retainer
21	CAPACITOR
22	WP8577378 Whirlpool Retainer
23	WP616099 Whirlpool Clamp
24	WP285655 Whirlpool Hose Clamp
25	285871 Whirlpool Hose and Clamp
26	8541668 Whirlpool Washer Clamp
27	W10851055 Whirlpool Cycle Switch
28	WP3390631 Whirlpool Screw
29	WP3400818 Whirlpool Screw
30	WP9740848 Whirlpool Dishwasher Screw
31	WPW10184148 Whirlpool Temperature Switch
32	PANEL, CONSOLE
33	WPW10168257 Whirlpool Cycle Switch
34	Knob, Timer
35	WP8566018 Whirlpool Dial Assembly
36	Knob, Control
37	WP8536939 Whirlpool Spring Clip
38	Clip, Harness & Pressure Hose
39	W10820038 Whirlpool Endcap
40	W10234654 Whirlpool Wire Harness
