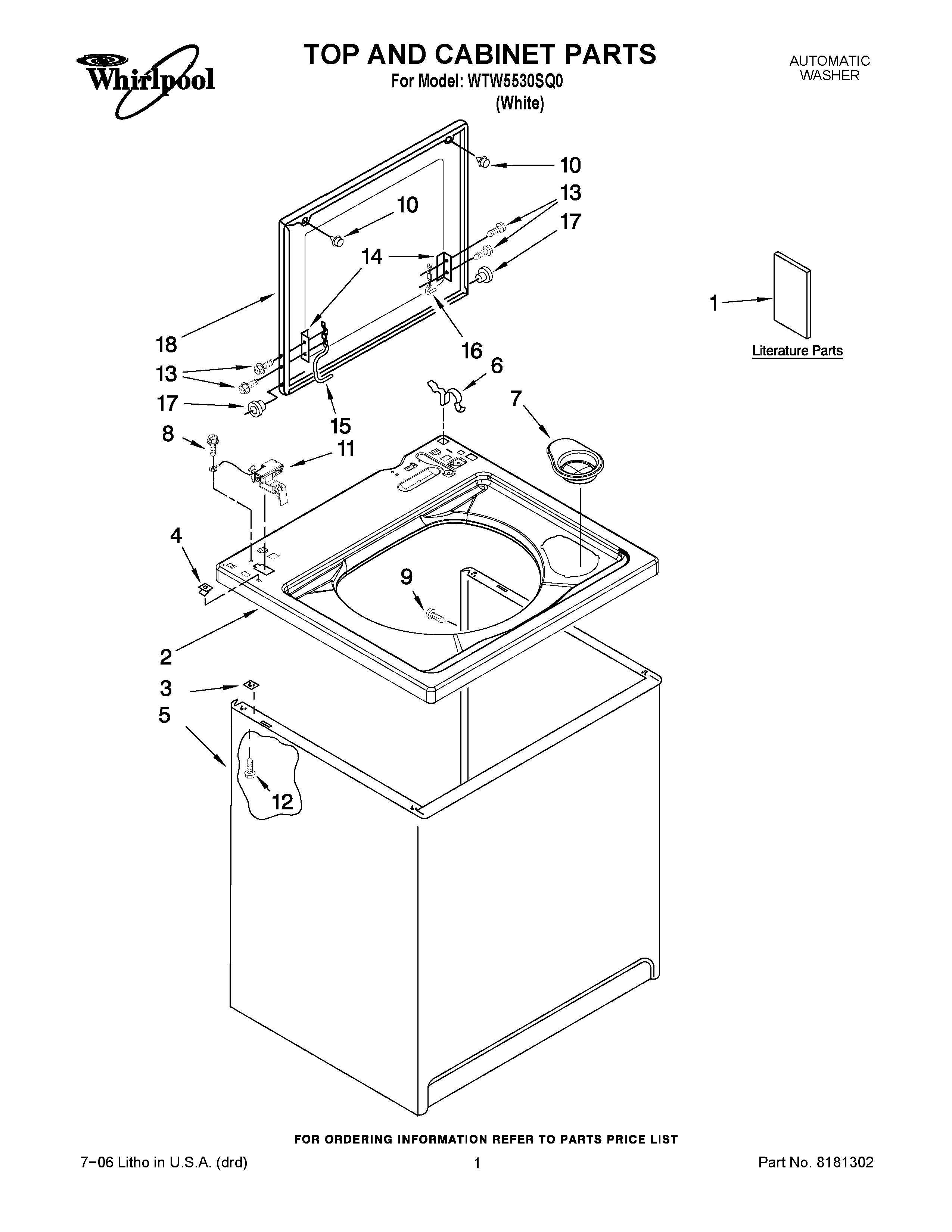

WTW5530SQ0 01 – TOP AND CABINET PARTS

WTW5530SQ0 01 – TOP AND CABINET PARTS

Written by

in

WTW5530SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
1Feature Sheet
1Manual, Washer Do-It-Yourself
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Dispenser, Bleach
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP3390631 Whirlpool Screw
13SCREW
14WP21097 Whirlpool Pad
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
17Bearing, Lid Hinge (2)
18Lid
