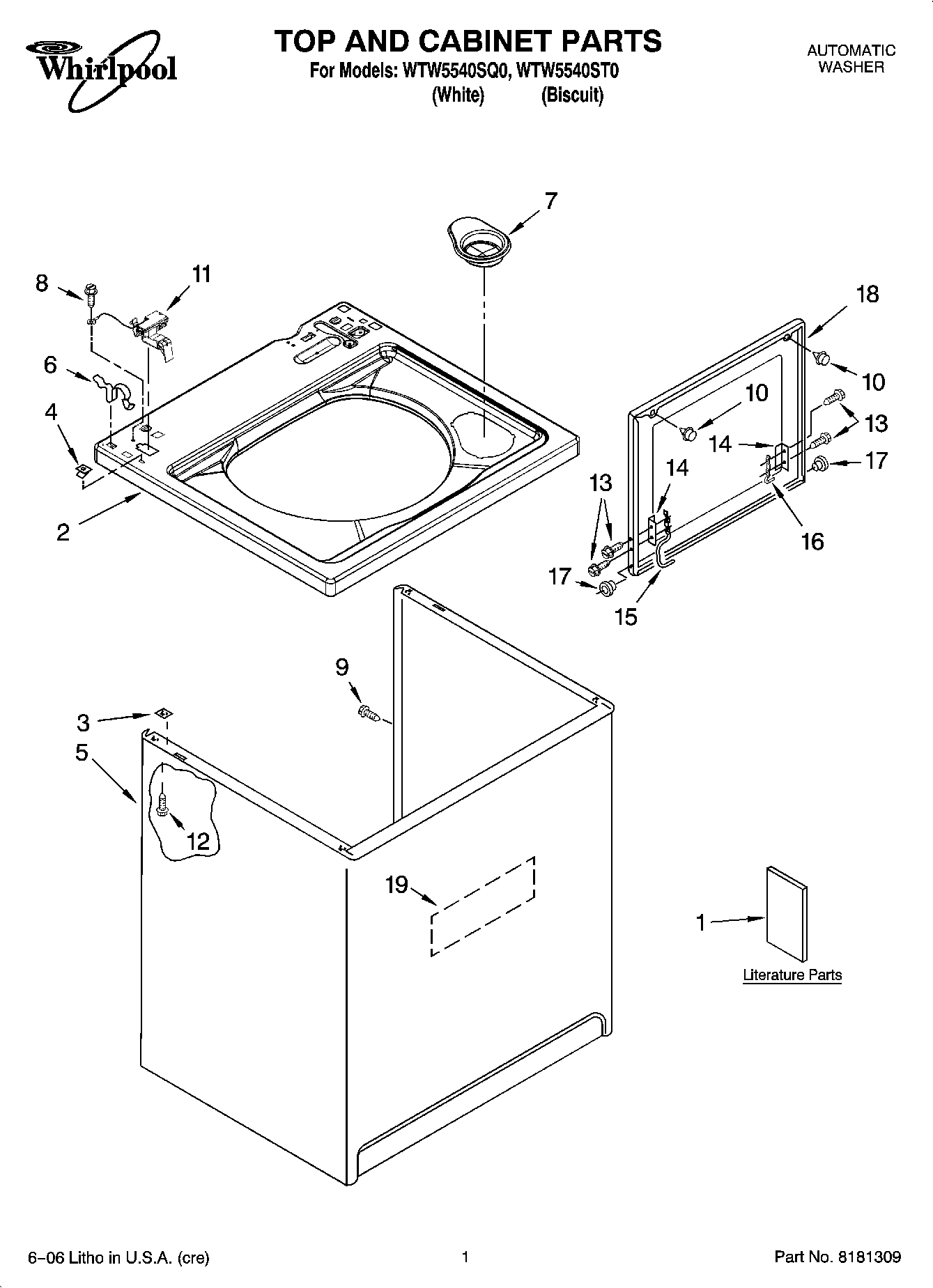

WTW5540SQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
1	Manual, Washer Do-It-Yourself
1	Wiring Diagram
1	Energy Guide
2	Top (Biscuit)
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet (Biscuit)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Dispenser, Bleach
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP3390631 Whirlpool Screw
13	SCREW
14	WP21097 Whirlpool Pad
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
17	Bearing, Lid Hinge (2)
18	Lid
18	Lid
19	Cabinet – Sound Damper
