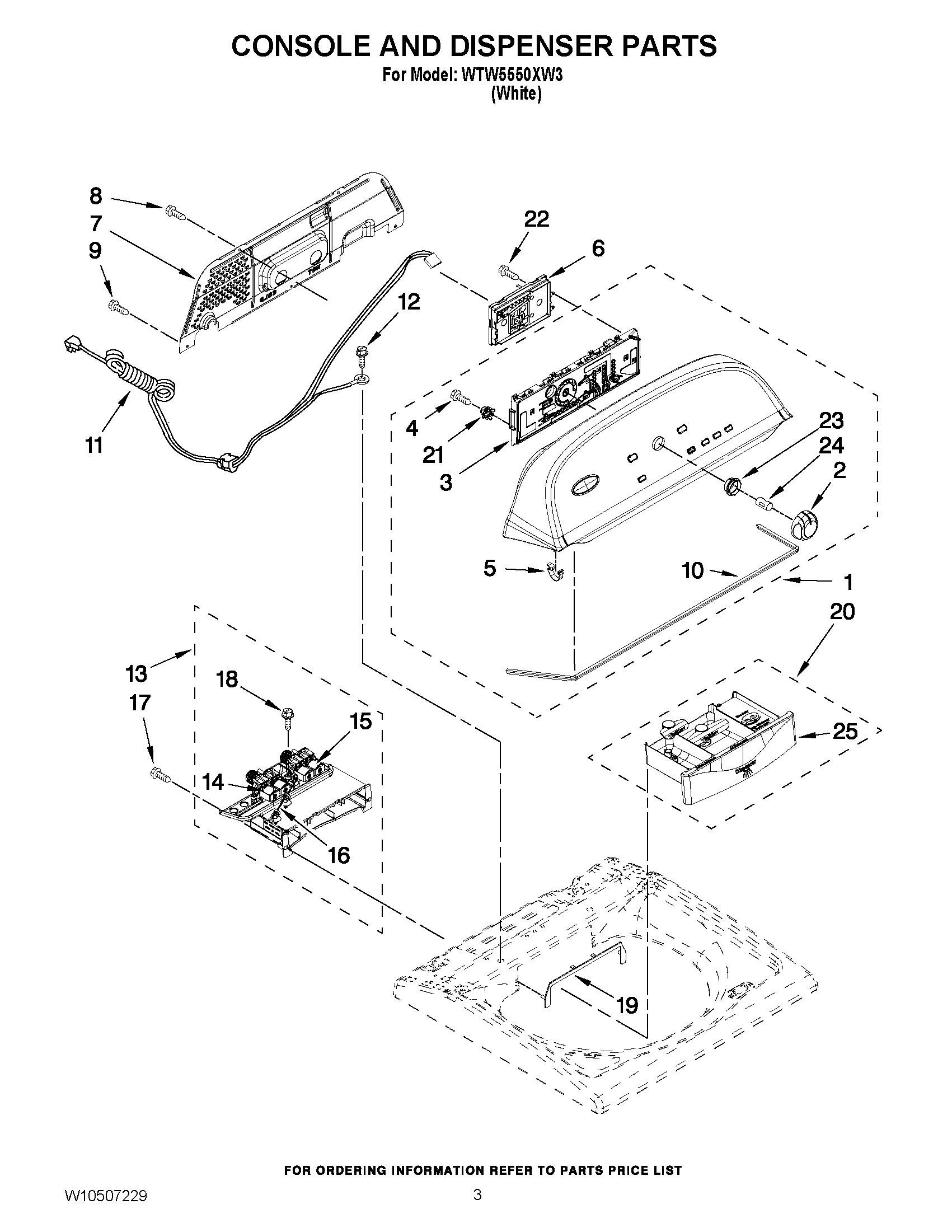

WTW5550XW3 02 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	WPW10269604 Whirlpool Console
2	WPW10251392 Whirlpool Knob
3	WPW10269602 Whirlpool Electronic Control Board + Core
4	W10853898 Whirlpool Screw
5	WP8312709 Whirlpool Endcap Clip
6	W10480104 Whirlpool Electronic Control Board + Core
7	W10420984 Whirlpool Rear Panel
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP489069 Whirlpool Compactor Screw
10	W10280079 Whirlpool Seal
11	WPW10525195 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	W11158805 Whirlpool Housing
14	W11168740 Whirlpool Valve
15	W11168743 Whirlpool Valve
16	W10240967 Whirlpool Wire Harness
17	WP8281163 Whirlpool Refrigerator Screw
18	WPW10109200 Whirlpool Screw
19	BEZEL, DISPENSER
20	WPW10658443 Whirlpool Drawer
21	W10274524 Whirlpool Grommet
22	WP9740848 Whirlpool Dishwasher Screw
23	W10325119 Whirlpool Spacer
24	WP8536939 Whirlpool Spring Clip
25	WPW10287476 Whirlpool Handle
