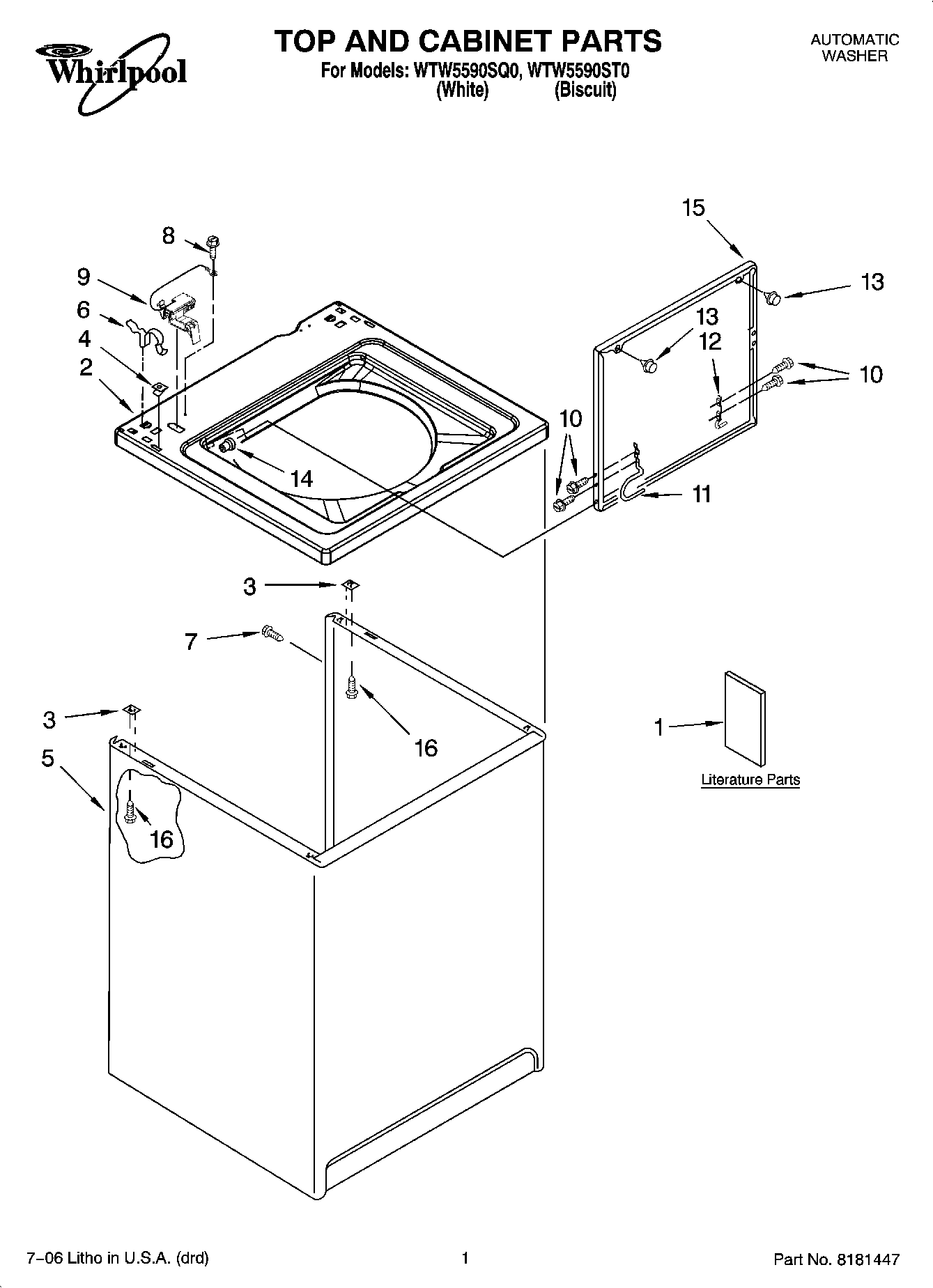

WTW5590SQ0 01 – TOP AND CABINET PARTS

WTW5590SQ0 01 – TOP AND CABINET PARTS

Written by

in

WTW5590SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Feature Sheet
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
1Energy Guide
1Manual, Washer Do-It-Yourself
2Top (White)
2Top (Biscuit)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
5Cabinet (Biscuit)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP308685 Whirlpool Microwave Screw
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
118318088 Whirlpool Hinge Assembly
12WP91770 Whirlpool Hinge
13WP9724509 Whirlpool Bumper
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WPW10193857 Whirlpool Lid Assembly
15Lid (Biscuit)
16WP3390631 Whirlpool Screw
