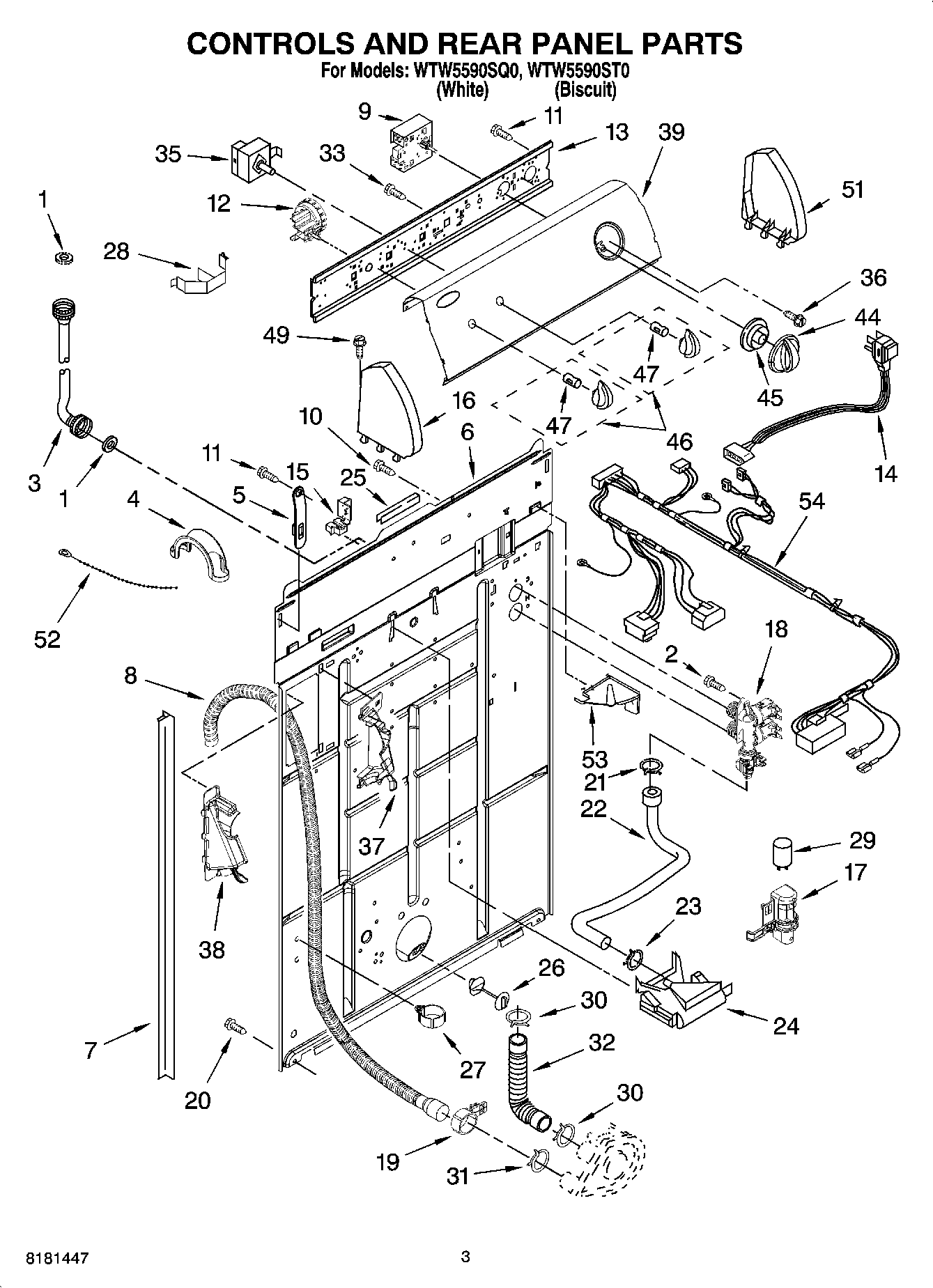

WTW5590ST0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	TIMER-WASHER
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	Clip, Capacitor
18	WP8578343 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	Clip, Harness & Pressure Hose
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
35	WP8578338 Whirlpool Dishwasher Temperature Switch
36	WP3400818 Whirlpool Screw
38	WPW10096921 Whirlpool Hose
39	Panel, Console (White)
39	Panel, Console (Biscuit)
44	W10034740 Whirlpool Knob Assembly
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
46	Knob, Control (B
46	Knob, Control
47	WP8536939 Whirlpool Spring Clip
49	WP388326 Whirlpool Screw
51	W10820038 Whirlpool Endcap
51	WPL 8271362
52	WPW10339879 Whirlpool Wire Tie
53	WPL 8539874
54	WPL 3958093
