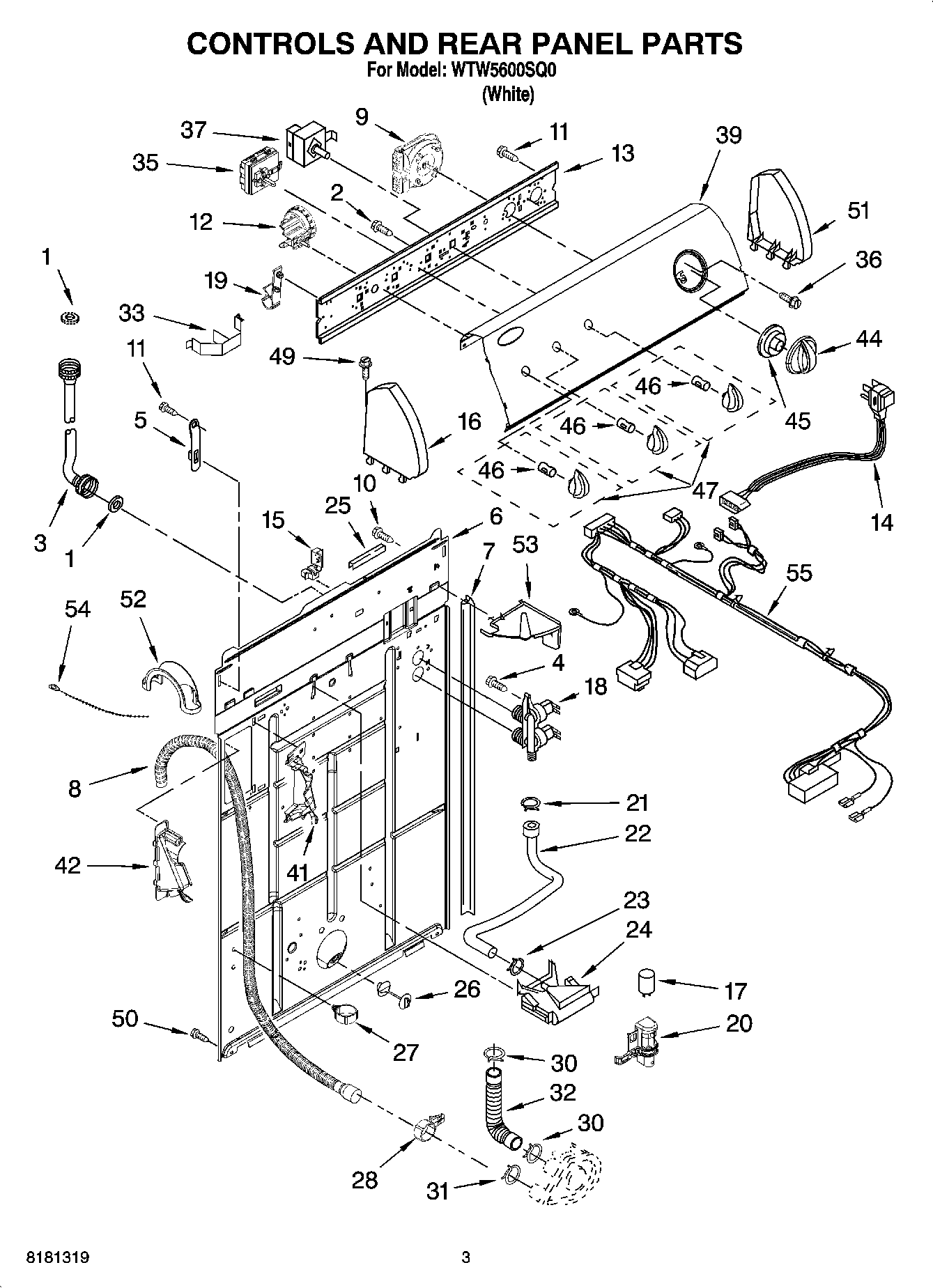

WTW5600SQ0 02 – CONTROLS AND REAR PANEL PARTS

WTW5600SQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

WTW5600SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8577356 Whirlpool Washer Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339250 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
17CAPACITOR
18WP3979346 Whirlpool Water Inlet Valve
19Retainer, Harness
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
288541668 Whirlpool Washer Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35Switch, Water Temperature (ATC)
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
39Panel, Console
42WPW10096921 Whirlpool Hose
44Knob, Timer
45WP8566018 Whirlpool Dial Assembly
46WP8536939 Whirlpool Spring Clip
47Knob, Control
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
52WP8577378 Whirlpool Retainer
53WPL 8539874
54WPW10339879 Whirlpool Wire Tie
55Harness, Wiring (For Detail See Pages 9 & 10)
