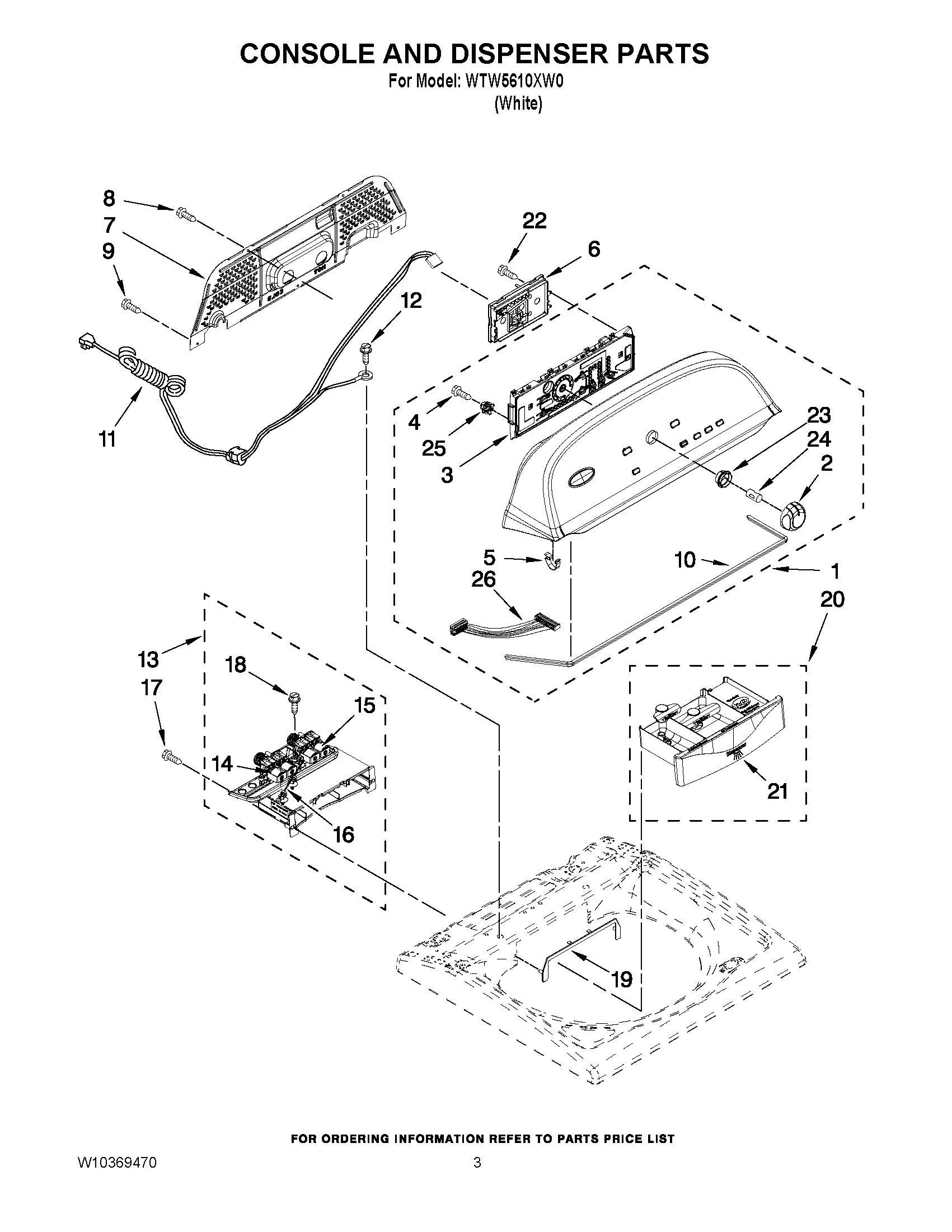

WTW5610XW0 02 – CONSOLE AND DISPENSER PARTS

WTW5610XW0 02 – CONSOLE AND DISPENSER PARTS

Written by

in

WTW5610XW0 02 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1CONSOLE
2WPW10251392 Whirlpool Knob
3WPW10352744-includeCORE Whirlpool WPW10352744 Washer Electronic Control Board + Core
4W10853898 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W10393833-includeCORE Whirlpool W10393833 Refrigerator Electronic Control Board
7W10420984 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP489069 Whirlpool Compactor Screw
10W10280079 Whirlpool Seal
11WPW10525195 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11158805 Whirlpool Housing
14W11168740 Whirlpool Valve
15W11168743 Whirlpool Valve
16W10240967 Whirlpool Wire Harness
17W11700520 Whirlpool Screw
18WPW10109200 Whirlpool Screw
19BEZEL, DISPENSER
20WPW10658443 Whirlpool Drawer
21WPW10287476 Whirlpool Handle
22WP9740848 Whirlpool Dishwasher Screw
23W10325119 Whirlpool Spacer
24WP8536939 Whirlpool Spring Clip
25W10274524 Whirlpool Grommet
26W10285492 Whirlpool Wire Harness
