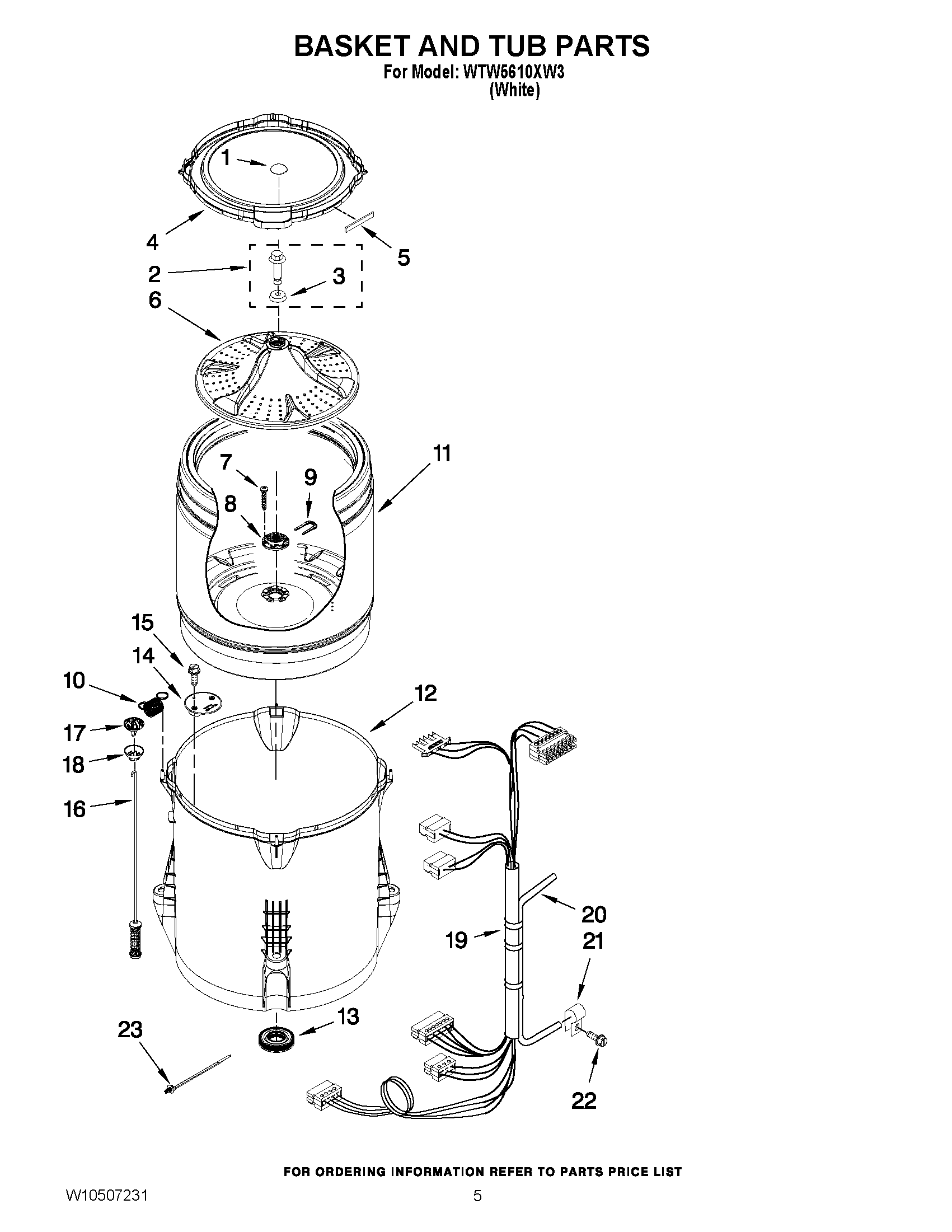

WTW5610XW3 03 – BASKET AND TUB PARTS

WTW5610XW3 03 – BASKET AND TUB PARTS

Written by

in

WTW5610XW3 03 – BASKET AND TUB PARTS

Products

PositionProduct
1WPW10305259 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4TUB RING (INCLUDES ITEM 5)
5W10205824 Whirlpool Absorber
6WPW10215115 Whirlpool Washplate
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10W10400895 Whirlpool Spring Assembly
11WPW10521297 Whirlpool Basket
12W10324648 Whirlpool Outer Tub
13W10324647 Whirlpool Seal Tub
14WPW10215093 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16W10780051 Whirlpool Suspension Rod
17BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSIONBUSHINGS)
18W10440729 Whirlpool Suspension
19WPW10383573 Whirlpool Wire Harness
20WP353244 Whirlpool Hose
21W10005430 Whirlpool Clamp
22WPW10109200 Whirlpool Screw
23WPW10298887 Whirlpool Wire Tie Assembly
