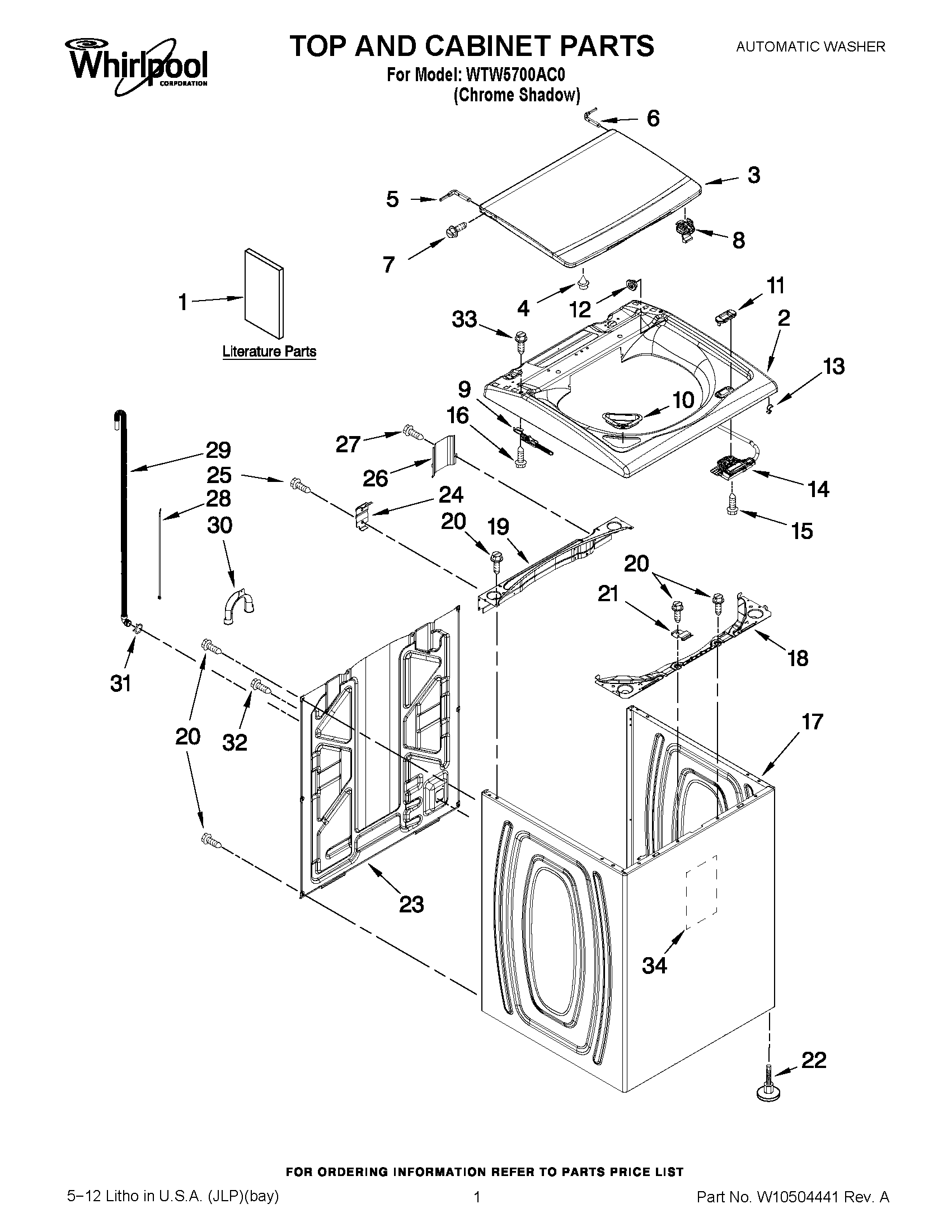

WTW5700AC0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1	QUICK START GUIDE
1	TECH SHEET
2	TOP
3	LID, GLASS ASSEMBLY
4	WP9724509 Whirlpool Bumper
5	WP8563965 Whirlpool Hinge Assembly
6	WP8572974 Whirlpool Hinge
7	W11404293 Whirlpool Screw
8	WPW10239968 Whirlpool Strike Assembly
9	W10270398 Whirlpool Hinge Assembly
9	W10270399 Whirlpool Hinge
10	W10468332 Whirlpool Dispenser
11	W10420458 Whirlpool Bezel
12	W10293653 Whirlpool Bearing
12	W10293293 Whirlpool Bearing
13	WP90016 Whirlpool Clip
14	W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15	WP8281163 Whirlpool Refrigerator Screw
16	WP693995 Whirlpool Screw
17	CABINET
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	WPW10248088 Whirlpool Lock
22	W10739673 Whirlpool Leveling Feet
23	W11486091 Whirlpool Rear Panel
24	W10432012 Whirlpool Hinge
25	WP489128 Whirlpool Refrigerator Screw
26	W10676061 Whirlpool Cover Assembly
27	W10846509 Whirlpool Screw
28	WPW10339879 Whirlpool Wire Tie
29	W11244231 Whirlpool Hose
30	WPW10280024 Whirlpool Retainer
31	WP356138 Whirlpool Hose Clamp
32	WP9740848 Whirlpool Dishwasher Screw
33	WP313808 Whirlpool Screw
34	W11096159 Whirlpool Sound ABS Assembly
