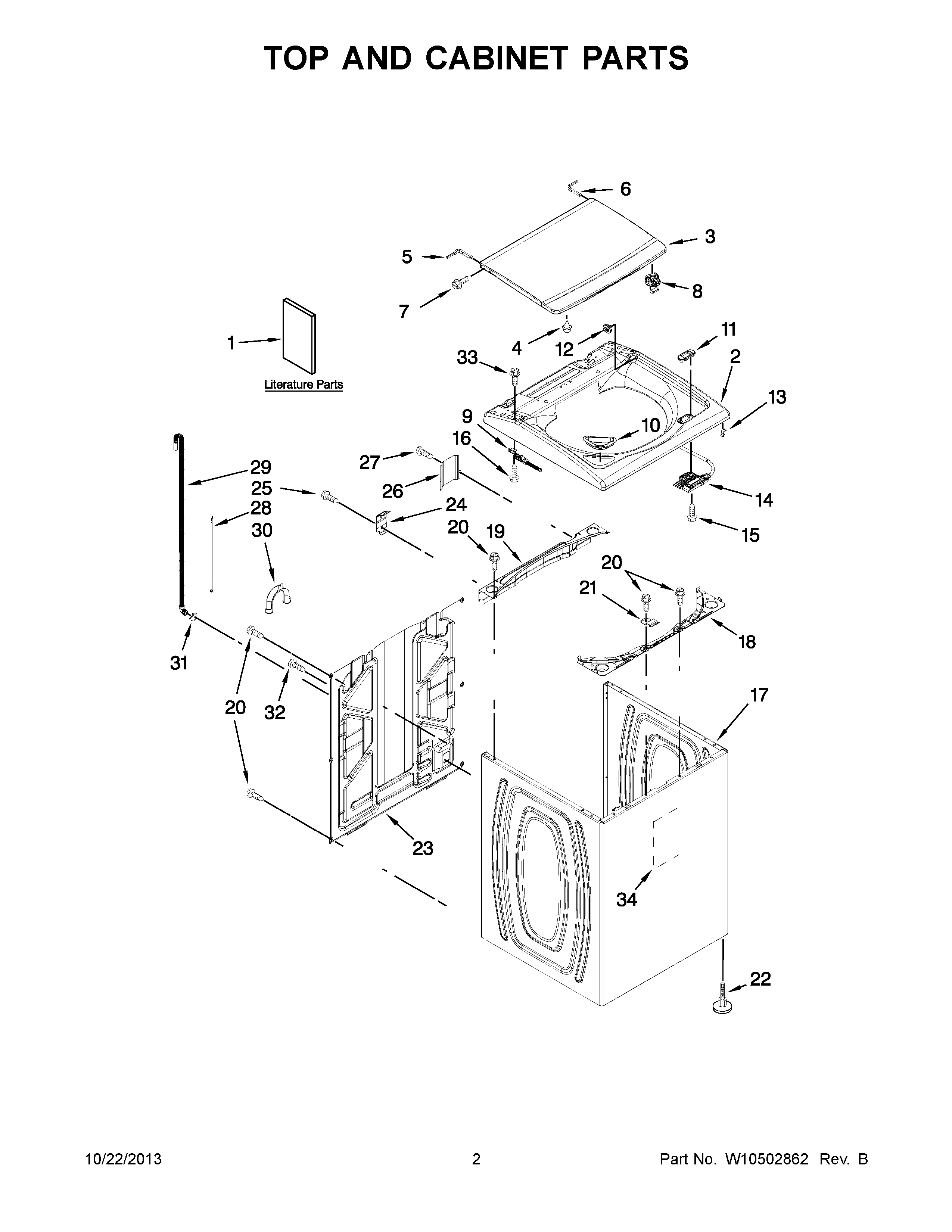

WTW5700XL3 02 – TOP AND CABINET PARTS
Written by
in
WTW5700XL3 02 – TOP AND CABINET PARTS
Products
Position
Product
1D
ENERGY GUIDE
1C
QUICK START GUIDE
1A
USE & CARE GUIDE
1
INSTALLATION INSTRUCTIONS
1B
TECH SHEET
2A
TOP (SILVER)
2
WPW10246376 Whirlpool Top Assembly
3A
WPW10296165 Whirlpool Lid
3
LID, GLASS ASSEMBLY (INCLUDES ITEMS 4 & 8)
4
WP9724509 Whirlpool Bumper
5
WP8563965 Whirlpool Hinge Assembly
6
WP8572974 Whirlpool Hinge
7
W11404293 Whirlpool Screw
8A
WPW10239969 Whirlpool Strike
8
WPW10239968 Whirlpool Strike Assembly
9A
W10270399 Whirlpool Hinge
9
W10270398 Whirlpool Hinge Assembly
10
W10874836 Whirlpool Endcap Assembly Left Hand and Right
10A
DISPENSER, BLEACH (DOLPHIN)
11
WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
11A
WPW10392092 Whirlpool Bezel
12
W10293653 Whirlpool Bearing
12A
W10293293 Whirlpool Bearing
13
WP90016 Whirlpool Clip
14
W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15
WP8281163 Whirlpool Refrigerator Screw
16
WP693995 Whirlpool Screw
17A
CABINET (INCLUDES ITEMS 18, 19, 20 & 22) (SILVER)
17
W10596395 Whirlpool Cabinet
18
W11695476 Whirlpool Brace Support
19
W11712680 Whirlpool Commercial Part Brace
20
WP489069 Whirlpool Compactor Screw
21
WPW10248088 Whirlpool Lock
22
W10739673 Whirlpool Leveling Feet
23
W11486091 Whirlpool Rear Panel
24
W10432012 Whirlpool Hinge
25
WP489128 Whirlpool Refrigerator Screw
26
W10676061 Whirlpool Cover Assembly
27
W10846509 Whirlpool Screw
28
WPW10339879 Whirlpool Wire Tie
29
W11244231 Whirlpool Hose
30
WPW10280024 Whirlpool Retainer
31
WP356138 Whirlpool Hose Clamp
32
WP9740848 Whirlpool Dishwasher Screw
33
WP313808 Whirlpool Screw
34
W11096159 Whirlpool Sound ABS Assembly
←
