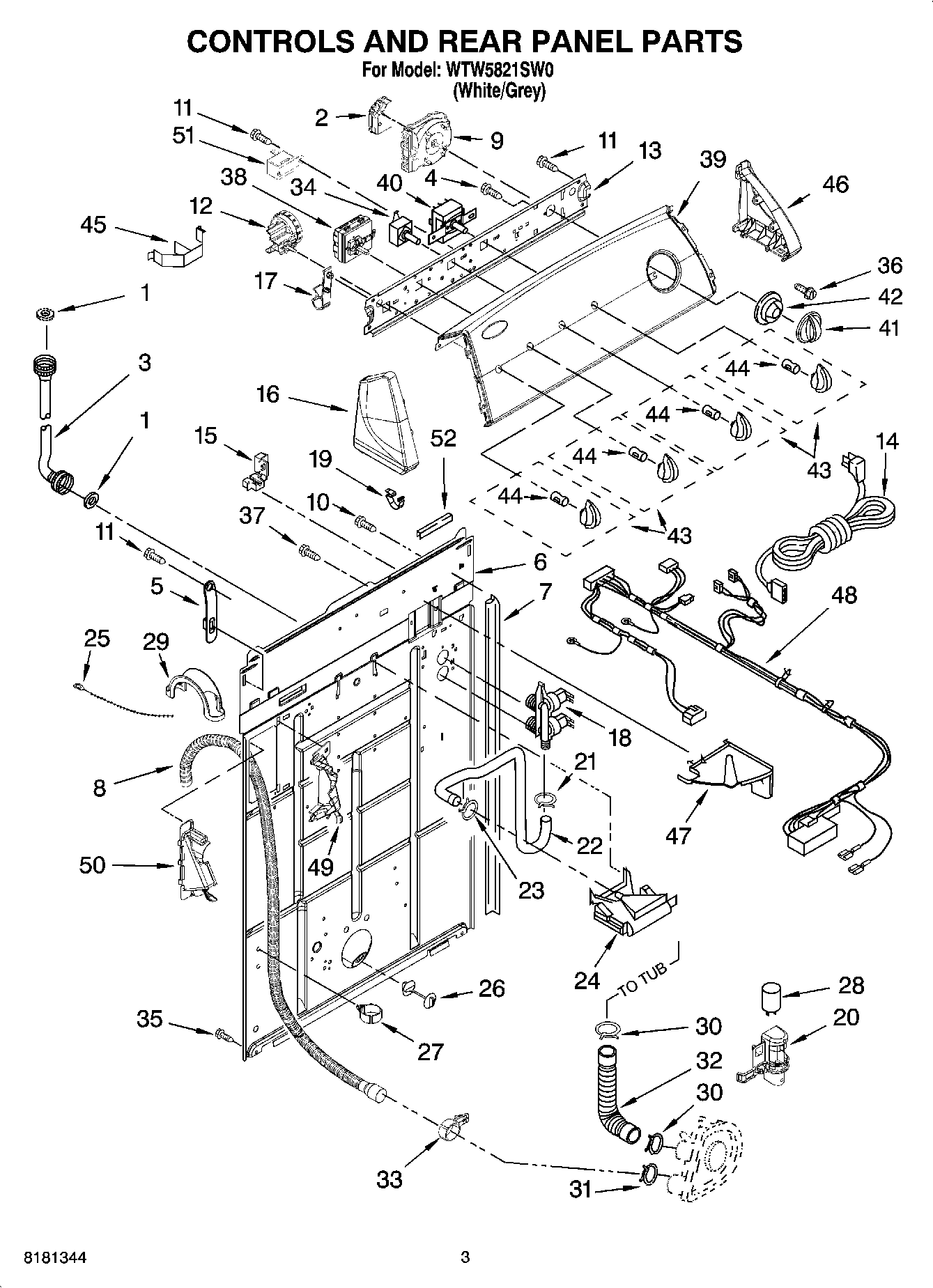

WTW5821SW0 02 – CONTROLS AND REAR PANEL PARTS

WTW5821SW0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

WTW5821SW0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2W10860734 Whirlpool Electronic Control Board + Core
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8577787 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339250 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
17Retainer, Harness
18WP3979346 Whirlpool Water Inlet Valve
19WP8312709 Whirlpool Endcap Clip
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WPW10339879 Whirlpool Wire Tie
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28WP8572720 Whirlpool Capacitor
29WP8577378 Whirlpool Retainer
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
338541668 Whirlpool Washer Clamp
34W10168264 Whirlpool Cycle Switch
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
37WP9740848 Whirlpool Dishwasher Screw
38WP8577786 Whirlpool Temperature Switch
39Panel, Console
40Switch, Rotary
41Knob, Timer
42WP8566018 Whirlpool Dial Assembly
43Knob, Control (3)
44WP8536939 Whirlpool Spring Clip
45Clip, Harness & Pressure Hose
46WP8565954 Whirlpool Endcap
47WPL 8539874
48WPL 3958084
50WPW10096921 Whirlpool Hose
51WP694419 Whirlpool Buzzer Adjuster
52Edge Protector
