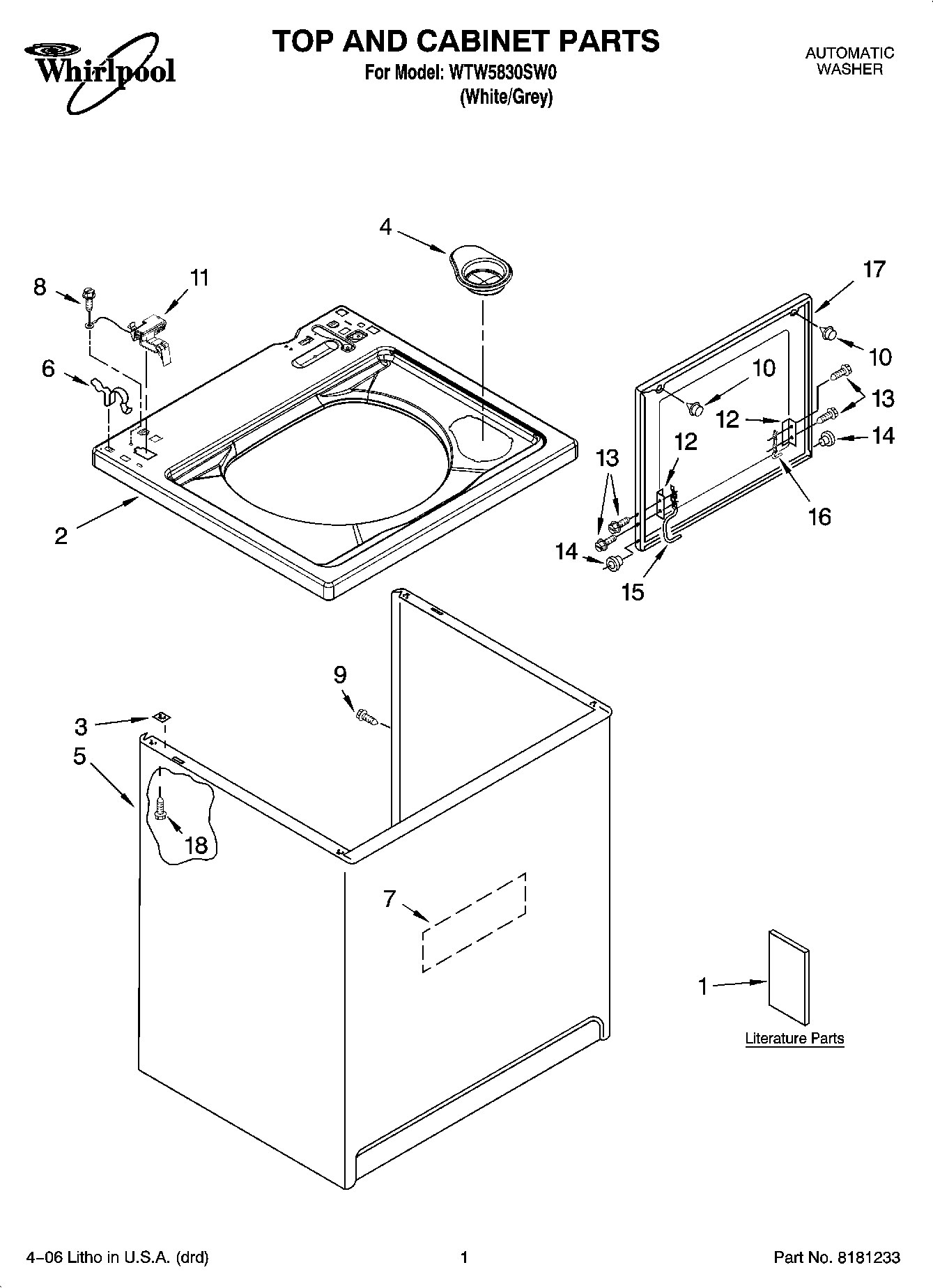

WTW5830SW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Installation Instructions
1Feature Sheet
1Wiring Diagram
1Manual, Washer Do-It-Yourself
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Top
3WP62750 Whirlpool Spacer
4Dispenser, Bleach
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Cabinet – Sound Damper
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP21097 Whirlpool Pad
13SCREW
14Bearing, Lid Hinge (2)
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
17Lid
18WP3390631 Whirlpool Screw
