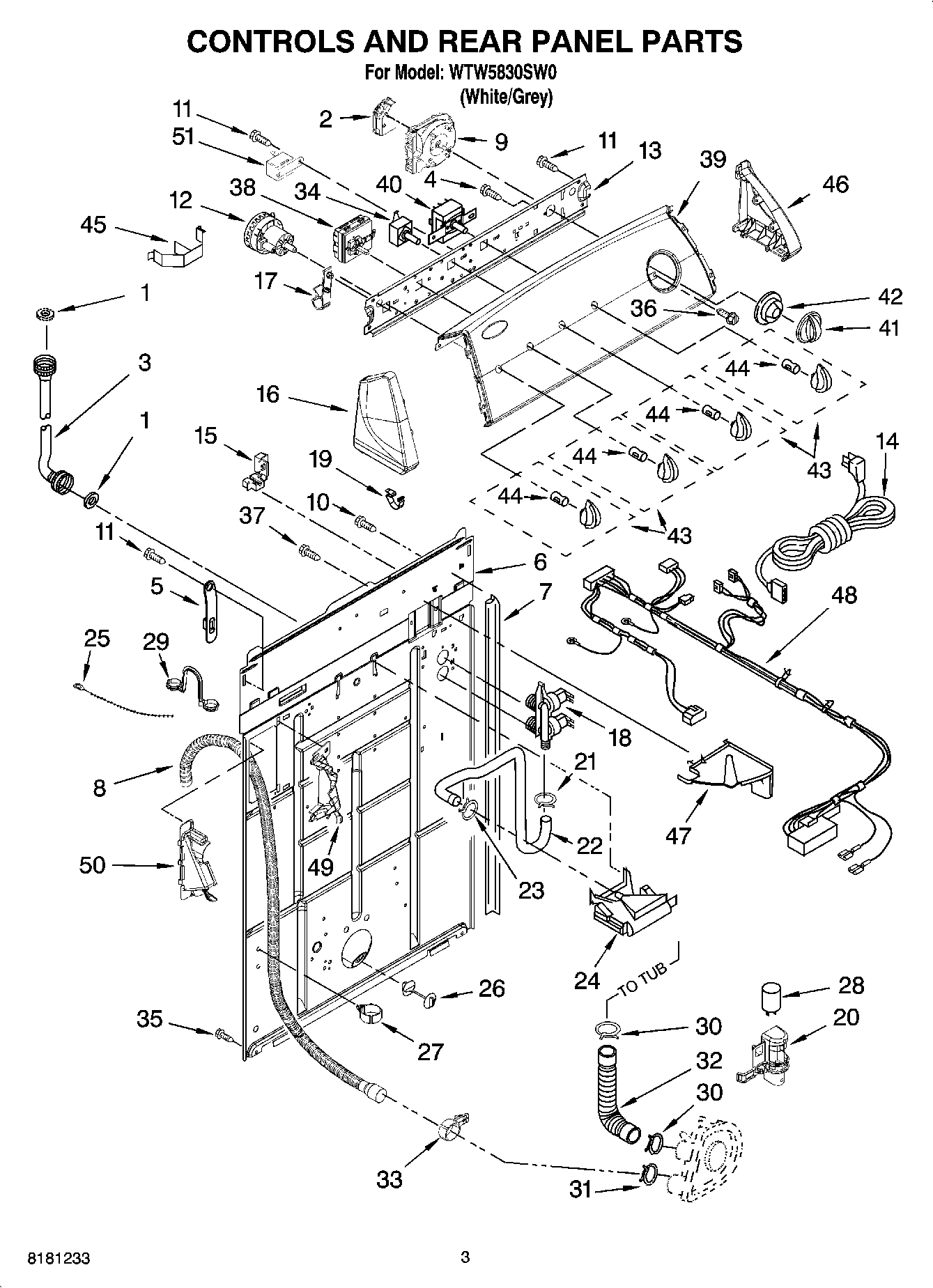

WTW5830SW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	W10860734 Whirlpool Electronic Control Board + Core
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8577787 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337781 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	Retainer, Harness
18	WP3979346 Whirlpool Water Inlet Valve
19	WP8312709 Whirlpool Endcap Clip
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WPW10339879 Whirlpool Wire Tie
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	WP8572720 Whirlpool Capacitor
29	WP8577378 Whirlpool Retainer
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	W10168264 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	WP9740848 Whirlpool Dishwasher Screw
38	WP8577786 Whirlpool Temperature Switch
39	Panel, Console
40	Switch, Rotary
41	Knob, Timer
42	WP8566018 Whirlpool Dial Assembly
43	Knob, Control (3)
44	WP8536939 Whirlpool Spring Clip
45	Clip, Harness & Pressure Hose
46	WP8565954 Whirlpool Endcap
47	WPL 8539874
48	WPL 3958084
50	WPW10096921 Whirlpool Hose
51	WP694419 Whirlpool Buzzer Adjuster
