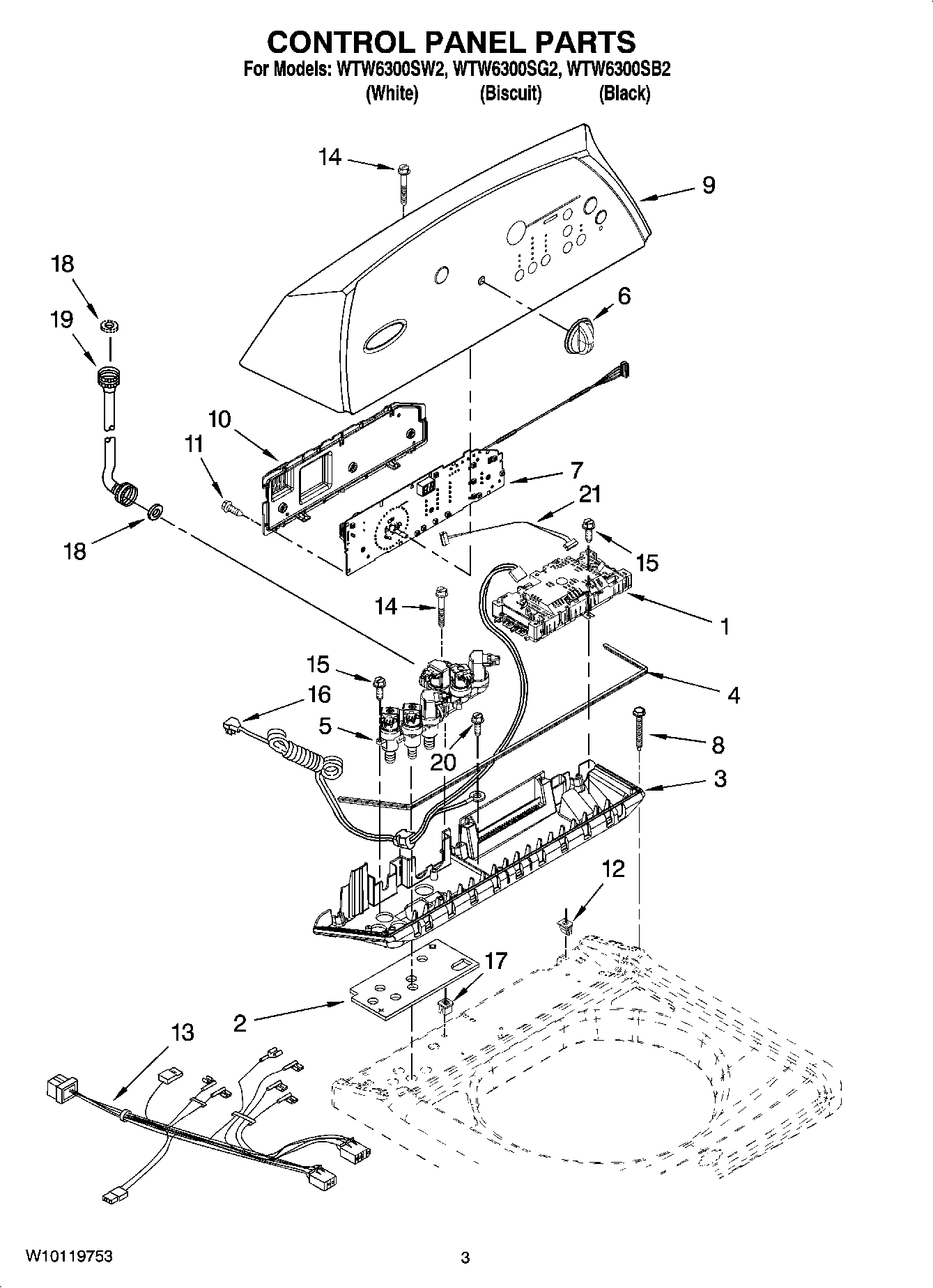

WTW6300SG2 02 – CONTROL PANEL PARTS

WTW6300SG2 02 – CONTROL PANEL PARTS

Written by

in

WTW6300SG2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Unit Assembly, Machine & Motor
2W10130502 Whirlpool Gasket
3Tray Assembly, Console (Includes Items 2 & 4) (Black)
3Tray Assembly, Console (Includes Items 2 & 4) (White)
3Tray Assembly, Console (Includes Items 2 & 4) (Biscuit)
4Gasket, Console/Tray
5Valve, Log Assembly
6WP8574957 Whirlpool Knob
7WP8564288 Whirlpool Electronic Control Board
8Screw, 6-20 x 1.2
9Console (Black)
9Console (White)
9Console (Biscuit)
108564265 Whirlpool Cover
11WP4449745 Whirlpool Screw
12W10022060 Whirlpool Nut Assembly
13Harness, Upper
148565324 Whirlpool Screw
15WP8281136 Whirlpool Screw
16Cord Assembly, Power
1798460 Whirlpool Nut
18WP16123 Whirlpool Washer
19FILL HOSE 5' W/WASHER
19WP89503 Whirlpool Washer Fill Hose
20WPW10141625 Whirlpool Refrigerator Screw Assembly
213407187 Whirlpool Wire Harness
