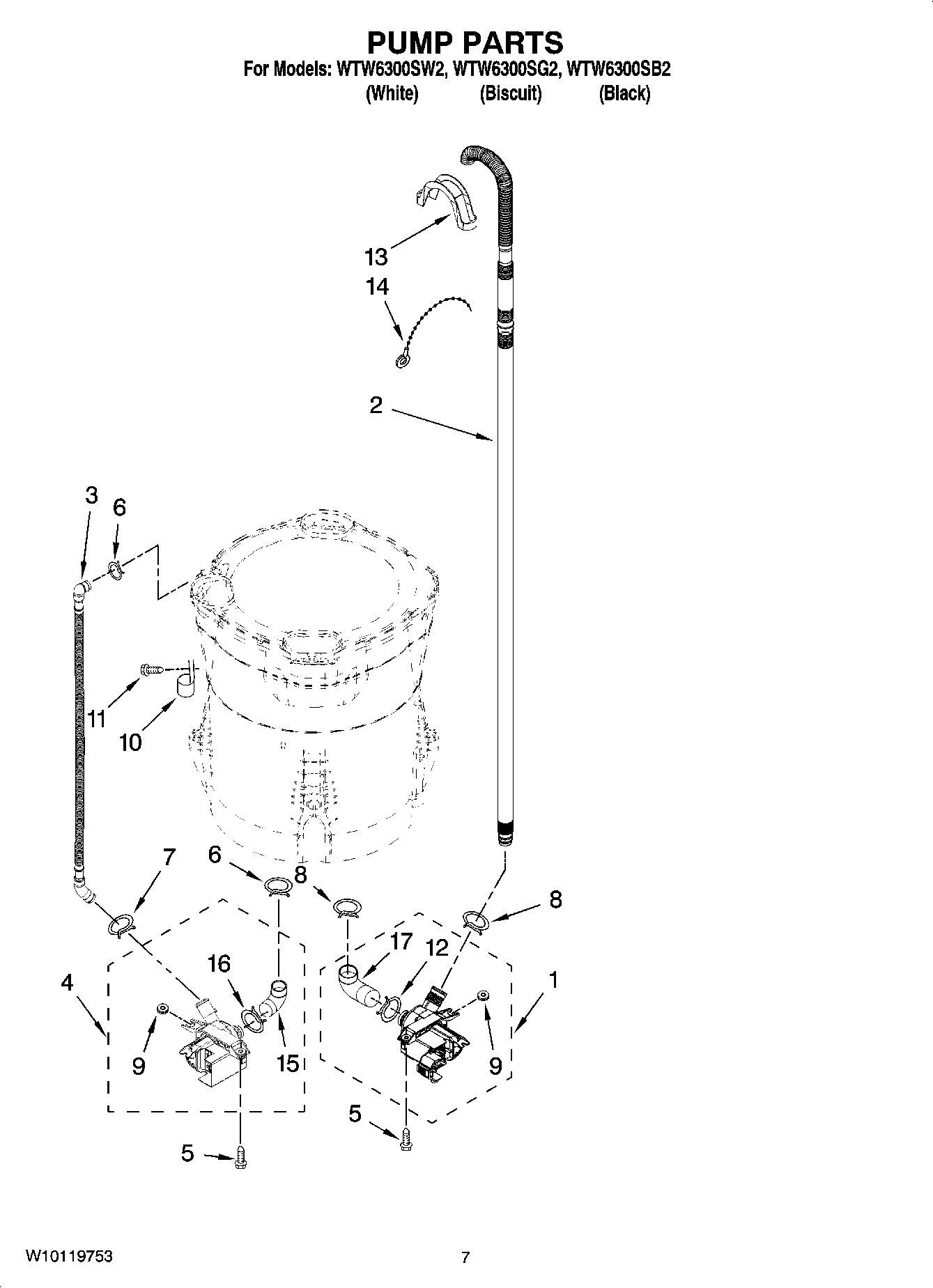

WTW6300SG2 04 – PUMP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP285195 Whirlpool Sealer Assembly
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WP384496 Whirlpool Hose Coupling
	72032 Whirlpool Touch Up Paint Black
	WPL 786020
	WPL 786032
	WATER SYSTEM PARTS
	SEALER
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	COUPLING
	799344 Whirlpool Refrigerator Paint
	285442 Whirlpool Coupling
	285321 Whirlpool Sleeve
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
1	W10536347 Whirlpool Drain Pump and Motor Assembly
2	WPW10363893 Whirlpool Hose Assembly
3	WP8543774 Whirlpool Hose Assembly
4	Pump Assembly, Recirc
5	WPW10004910 Whirlpool Screw
6	WP285655 Whirlpool Hose Clamp
7	WP8269146 Whirlpool Dishwasher Clamp
9	GROMMET, PUMP MOUNTING
10	8534021 Whirlpool Clamp
11	WPW10109200 Whirlpool Screw
13	WP8576642 Whirlpool Retainer Clip
14	WPW10339879 Whirlpool Wire Tie
15	WP8182769 Whirlpool Hose Assembly
16	WP3367052 Whirlpool Hose Clamp
17	WP8182767 Whirlpool Drain Hose
