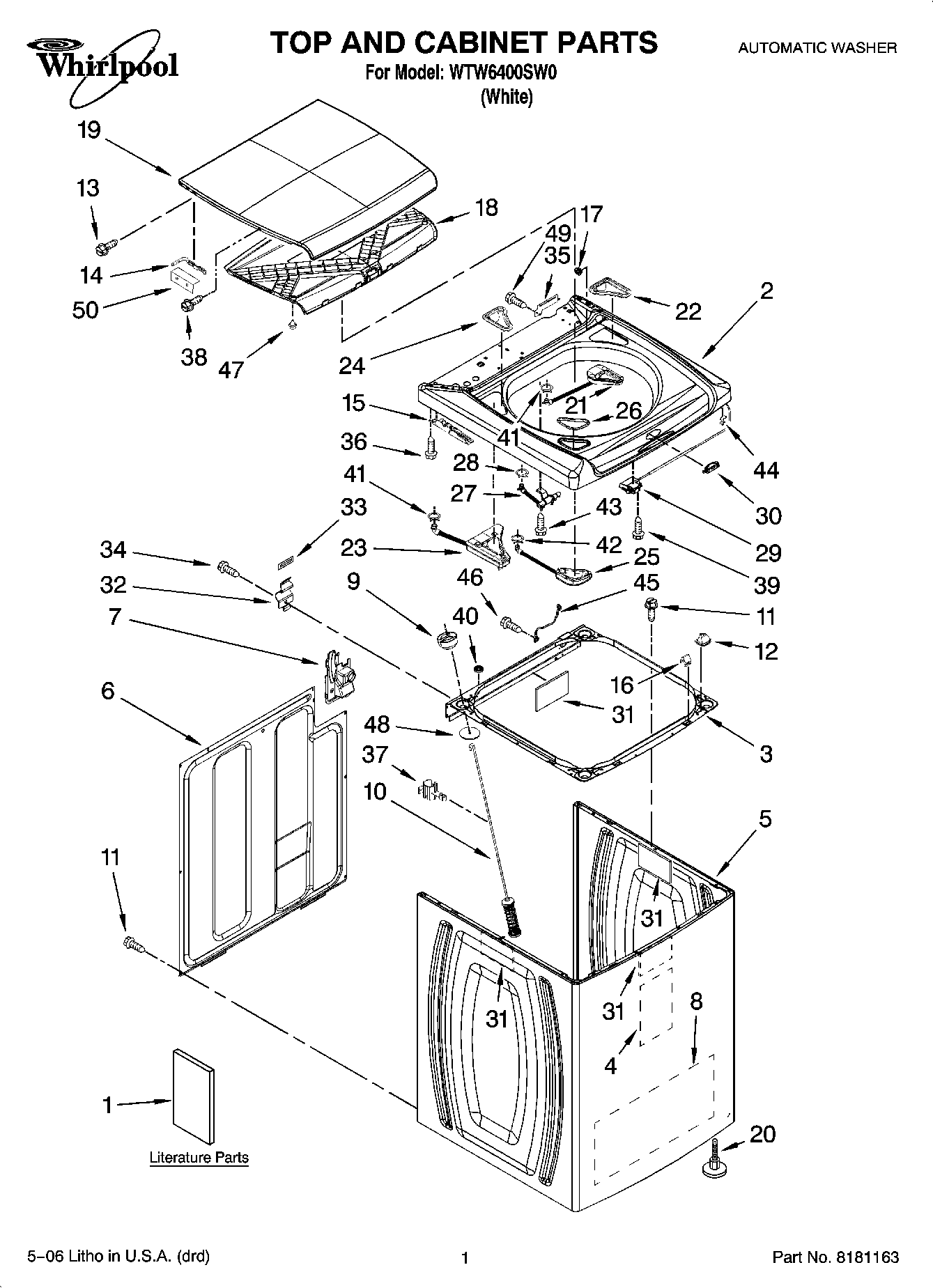

WTW6400SW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Energy Guide
1	Tech Sheet
1	Use & Care Guide
1	Quick Start Guide
2	Top (White)
3	Frame Assembly, Cabinet Top (Includes Item 31)
4	Sound Absorber, Cabinet
5	Cabinet (White)
6	WP8566090 Whirlpool Rear Panel
7	WPW10160572 Whirlpool Connector
8	Sound Absorber, Cabinet
9	W10198919 Whirlpool Kit
10	W10820048 Whirlpool Washer Suspension Rod Kit
11	WP489069 Whirlpool Compactor Screw
12	Locator, Top (2)
13	SCREW
14	WP8576780 Whirlpool Hinge
15	WP8563963 Whirlpool Hinge
15	Hinge, Spring Assembly (Glass Lid) (Left)
16	WP8563785 Whirlpool Lock
17	Bearing, Lid Hinge (2)
18	8577353 Whirlpool Inner Lid Assembly
19	LID
20	W10739673 Whirlpool Leveling Feet
21	WPW10172146 Whirlpool Dispenser Assembly
22	Bezel, Fabric Softener Dispenser (White)
23	WPW10161865 Whirlpool Dispenser
24	WPL 8566211
25	WPL 8564976
26	WPL 8564979
27	WPW10106990 Whirlpool Nozzle
29	WPW10619844 Whirlpool Washer Latch
30	Bezel, Lid Lock
31	WP8564458 Whirlpool Absorber
32	WP8564456 Whirlpool Hinge Assembly
33	18849 Whirlpool Pad
34	SCREW
35	8563941 Whirlpool Cover Assembly
36	WP693995 Whirlpool Screw
37	Bracket, Drain Hose
38	Screw (2)
39	WP8281136 Whirlpool Screw
40	8576476 Whirlpool Spacer
41	WP596669 Whirlpool Hose Clamp
43	W11700520 Whirlpool Screw
44	WP90016 Whirlpool Clip
45	3184020 Whirlpool Oven Wire
46	W10846509 Whirlpool Screw
47	W10076780 Whirlpool Bumper Assembly
48	WP8577896 Whirlpool Washer
49	WP488729 Whirlpool Refrigerator Door Screw
50	WP21097 Whirlpool Pad
