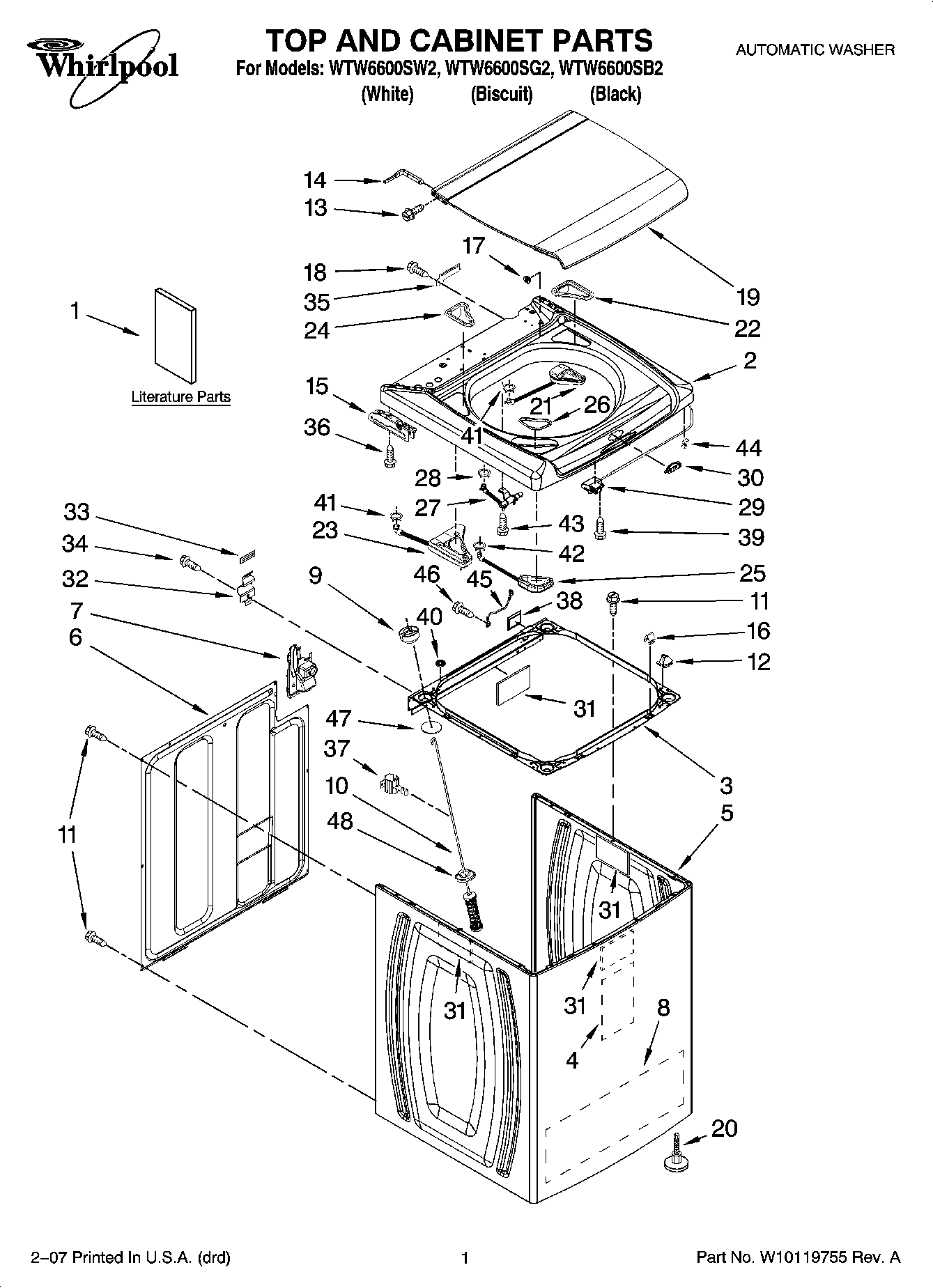

WTW6600SB2 01 – TOP AND CABINET PARTS

WTW6600SB2 01 – TOP AND CABINET PARTS

Written by

in

WTW6600SB2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Energy Guide
1Quick Start Guide
1Use & Care Guide
1Tech Sheet
2Top (Biscuit)
2Top (White)
2Top (Black)
3Frame Assembly, Cabinet Top (Includes Items 31 & 38)
4Sound Absorber, Cabinet
5Cabinet (Black)
5Cabinet (Biscuit)
5Cabinet (White)
6WP8566090 Whirlpool Rear Panel
7WPW10160572 Whirlpool Connector
8Sound Absorber, Cabinet
9W10198919 Whirlpool Kit
10W10820048 Whirlpool Washer Suspension Rod Kit
11WP489069 Whirlpool Compactor Screw
12LOCATOR, TOP
13W11404293 Whirlpool Screw
14WP8572974 Whirlpool Hinge
14WP8563965 Whirlpool Hinge Assembly
15Hinge, Spring Assembly (Glass Lid) (Left)
15WP8563963 Whirlpool Hinge
16WP8563785 Whirlpool Lock
17Bearing, Lid Hinge (2)
18WP488729 Whirlpool Refrigerator Door Screw
19Lid, Glass Assembly (Black)
19Lid, Glass Assembly (Gold Dust)
19Lid, Glass Assembly (Brilliant White Aluminum)
20W10739673 Whirlpool Leveling Feet
21WPW10172146 Whirlpool Dispenser Assembly
22Bezel, Fabric Softener Dispenser (Elephant)
22Bezel, Fabric Softener Dispenser (Biscuit)
22Bezel, Fabric Softener Dispenser (White)
23WPW10161865 Whirlpool Dispenser
24WPL 8566211
24WPL 8580018
24WPL 8580019
25WPL W10059180
25WPL W10059170
25WPL 8564976
26WPL 8564979
26WPL W10045190
26WPL W10045210
27WPW10106990 Whirlpool Nozzle
29WPW10619844 Whirlpool Washer Latch
30Bezel, Lid Lock
30WPL 8563939
30WPL W10052520
31WP8564458 Whirlpool Absorber
32WP8564456 Whirlpool Hinge Assembly
3318849 Whirlpool Pad
34SCREW
358563941 Whirlpool Cover Assembly
36WP693995 Whirlpool Screw
37Bracket, Drain Hose
38WPL 8578386
39WP8281136 Whirlpool Screw
408576476 Whirlpool Spacer
41WP596669 Whirlpool Hose Clamp
43W11700520 Whirlpool Screw
44WP90016 Whirlpool Clip
453184020 Whirlpool Oven Wire
46W10846509 Whirlpool Screw
47WP8577896 Whirlpool Washer
48WP8564017 Whirlpool Cup
